Control Units
CONTROL UNITS LOCATION
Component
Location

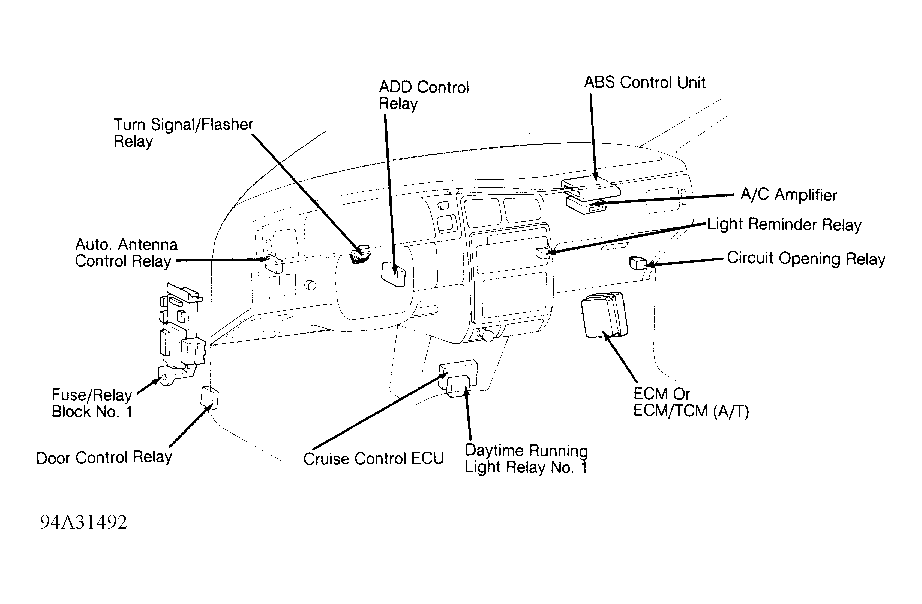

ABS Control Unit
Behind right side of dash, above glove box. See
Figure
.
Cruise Control ECU
Under center of dash. See
Figure
.
ECM
Behind right kick panel. See
Figure
&
Figure
.
ECM/TCM (A/T)
Behind right kick panel. See
Figure
&
Figure
.
