Fuel Injector Solenoid Resistor

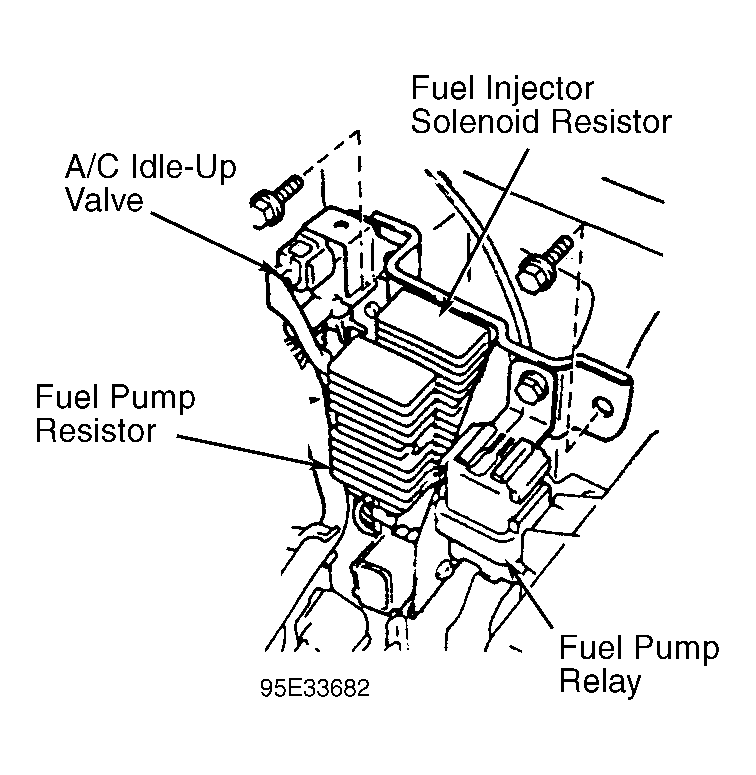

- Fuel injector solenoid resistor is located on driver's side rear corner of engine bay and contains a dark Gray 5-wire electrical connector. See Figure. Ensure proper resistor is checked, as fuel pump resistor is located near fuel injector solenoid resistor.

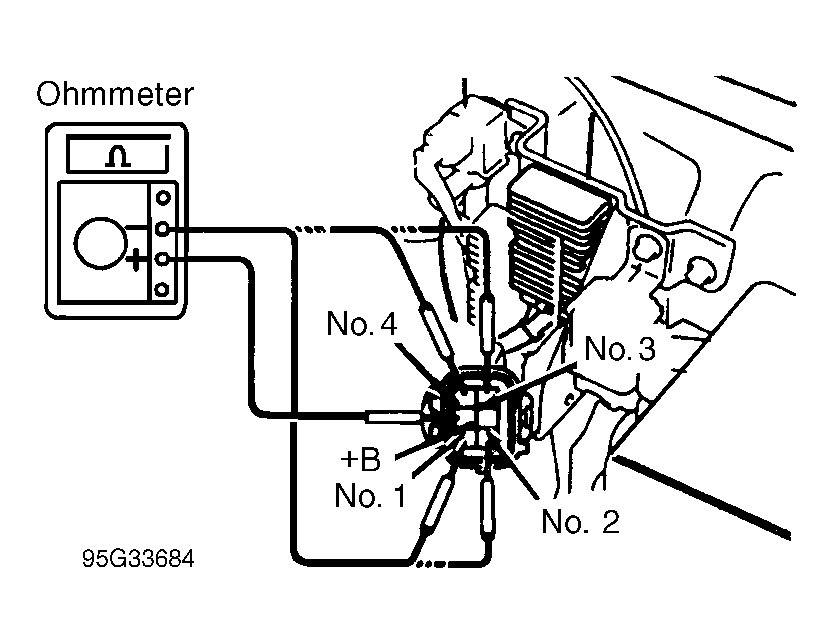

- Ensure ignition is off. Disconnect fuel injector solenoid resistor electrical connector. Using ohmmeter, measure resistance between terminal +B and other fuel injector solenoid resistor electrical terminals. See Fig 1. Replace fuel injector solenoid resistor if resistance is not within specification. See FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS table.
FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS
| Application | Ohms @ 68°F (20°C) |
|---|---|
| Turbo | 4-6 |
