Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

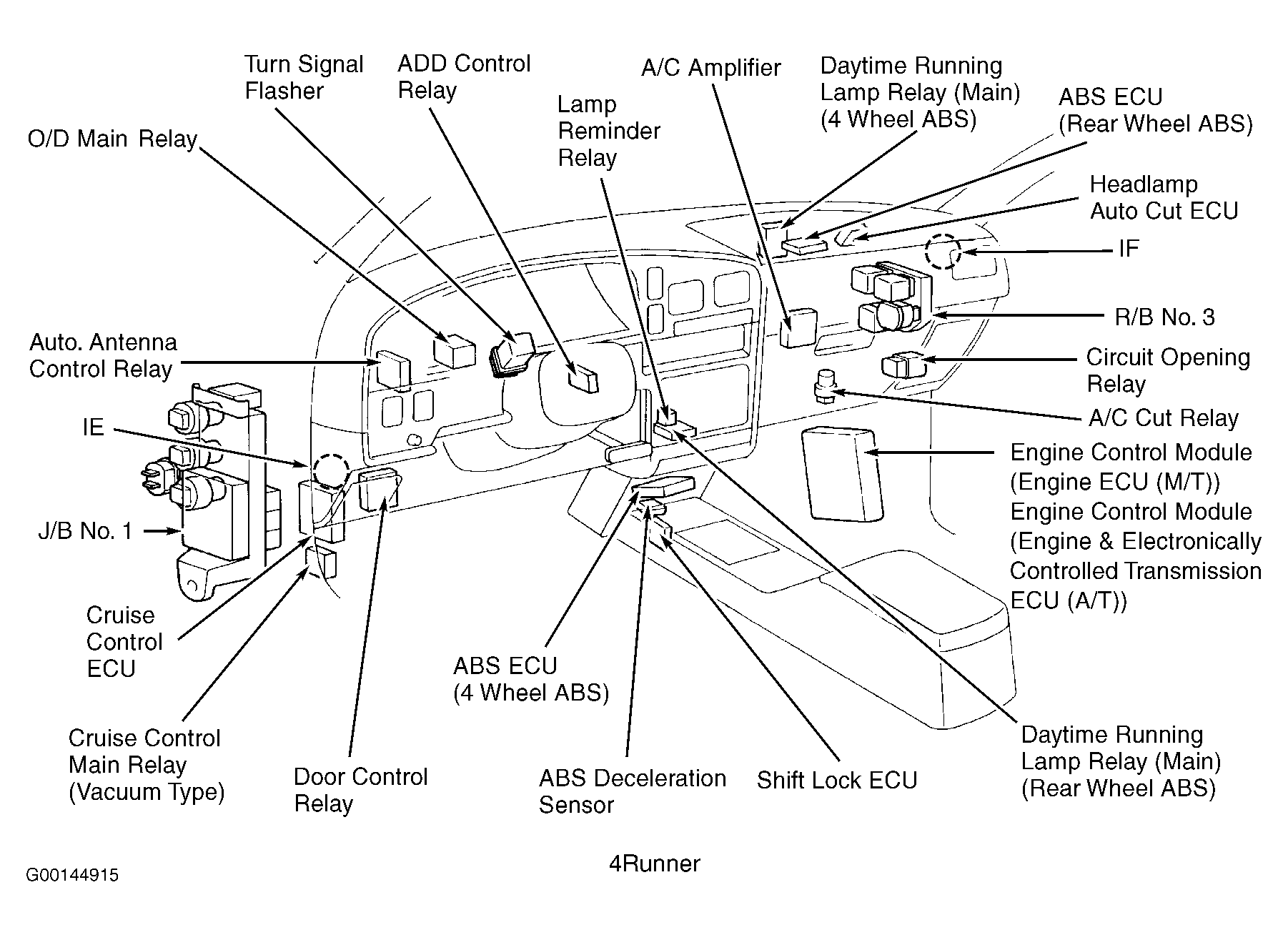

| ABS ECU (4Runner) (Rear Wheel ABS) | Behind right side of dash. See Figure. |
| ABS ECU (4Runner) (4 Wheel ABS) | Below center of dash. See Figure. |

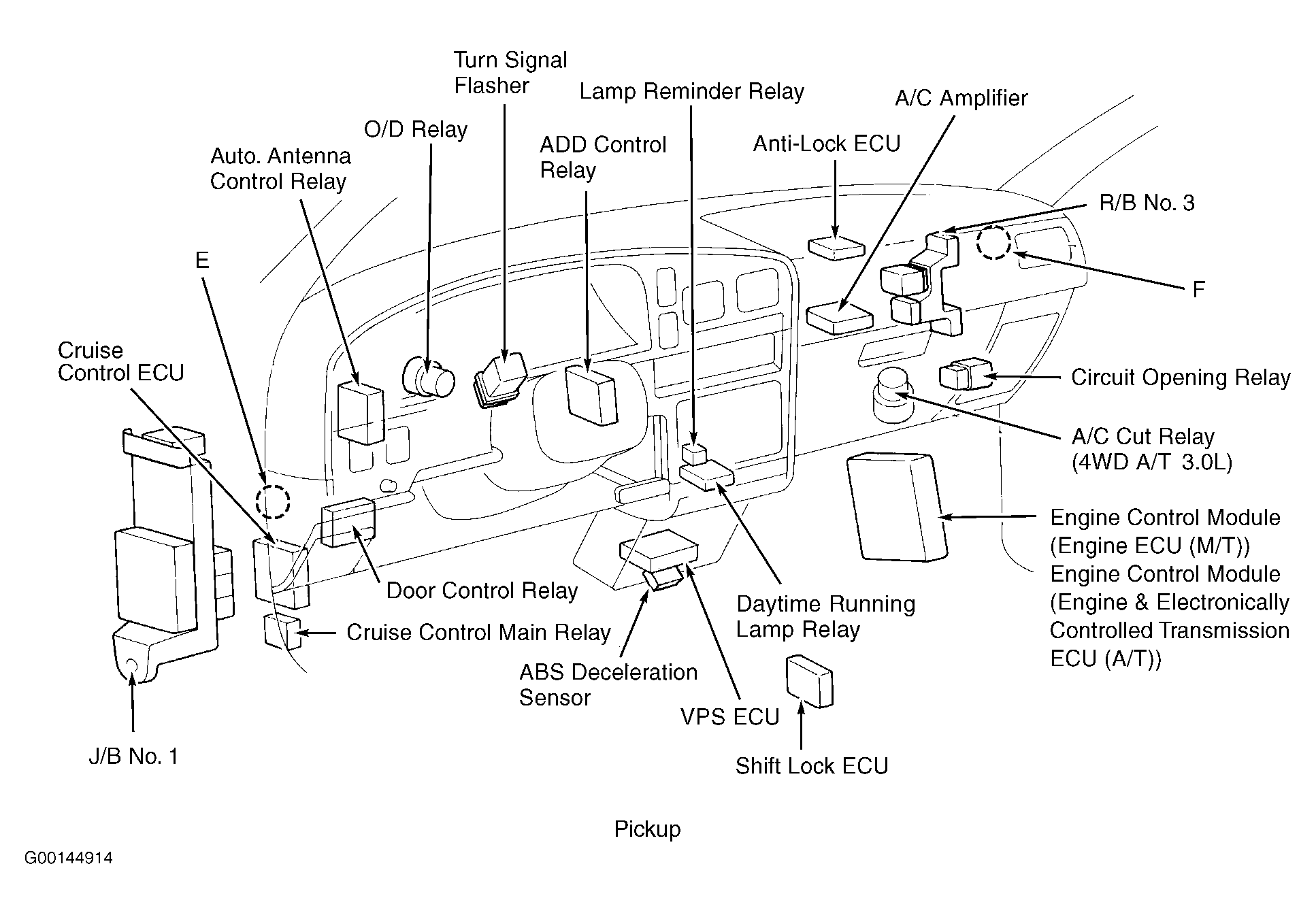

| A/C Amplifier (Pickup) | Behind right side of dash. See Figure. |
| A/C Amplifier (4Runner) | Behind right side of dash. See Figure. |
| Anti-Lock ECU (Pickup) | Behind right side of dash. See Figure. |
| Cruise Control ECU (Pickup) | Behind dash, left of steering column. See Figure. |
| Cruise Control ECU (4Runner) | Behind dash, left of steering column. See Figure. |
| Engine Control Module (Engine & Electronically Controlled Transmission ECU (A/T) | On right kick panel. See Figure. |
| Engine Control Module (Engine ECU) (M/T) (Pickup) | On right kick panel. See Figure. |
| Engine Control Module (Engine & Electronically Controlled Transmission ECU (A/T) (4Runner) | On right kick panel. See Figure. |
| Engine Control Module (Engine ECU) (M/T) (4Runner) | On right kick panel. See Figure. |
| Headlamp Auto Cut ECU (4Runner) (4 Wheel ABS) | Behind right side of dash. See Figure. |
| Shift Lock ECU (Pickup) | Below front console, forward of gear selector. See Figure. |
| Shift Lock ECU (4Runner) | Below front console, forward of gear selector. See Figure. |
| VPS ECU (Pickup) | Below front console, forward of gear selector. See Figure. |
