Power & Ground Circuits
For testing of power/ground circuits, see procedures in the PIN VOLTAGE CHARTS article. See ECM LOCATION table for identifying ECM mounting locations.
ECM LOCATION
| Model | Location |
|---|---|
| Previa | Below Driver's Seat |
NOTE:

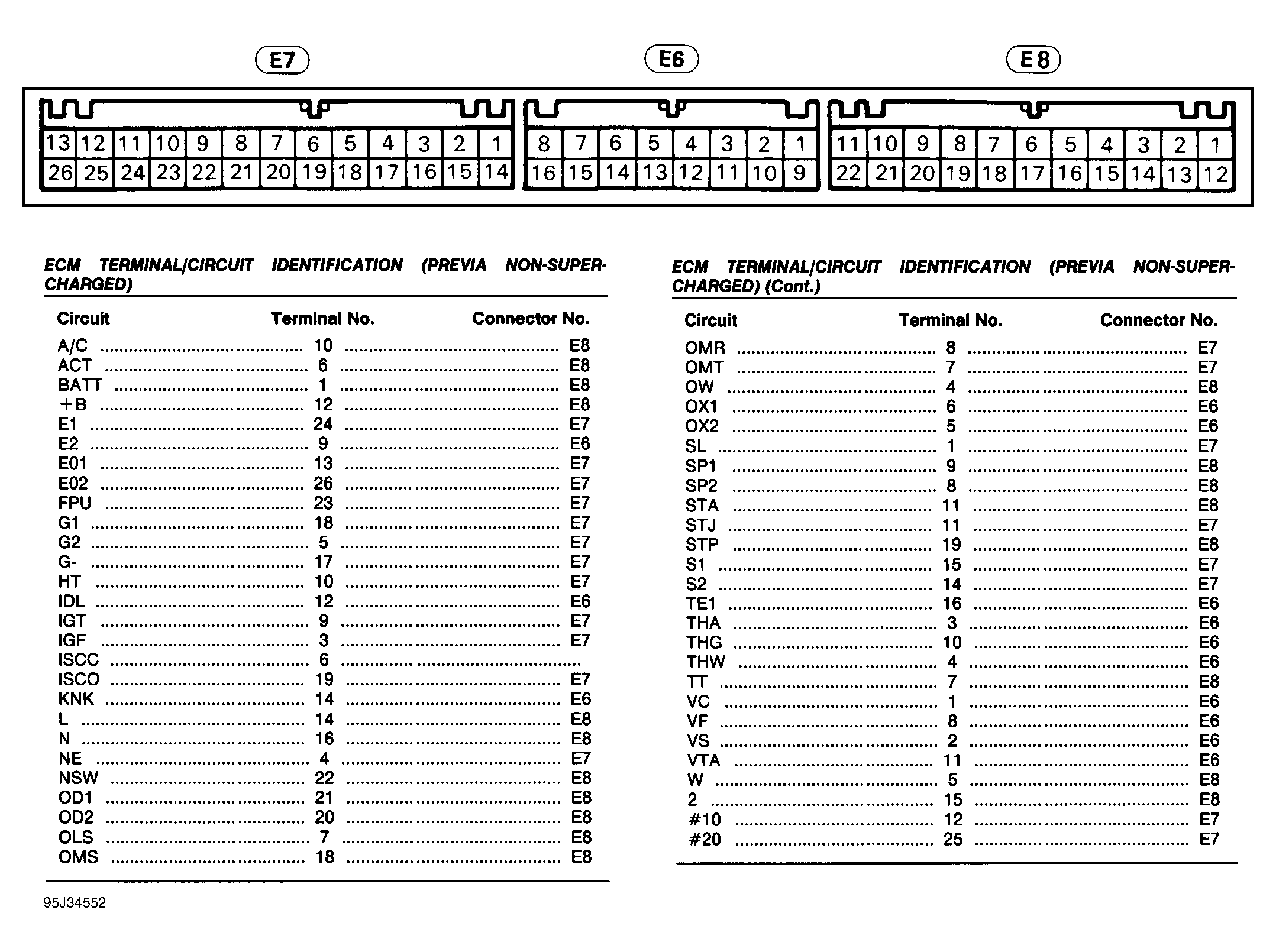

Fig. Fig 1 identifies ECM terminals which are used for performing tests on various components in this article.
