ECM Location

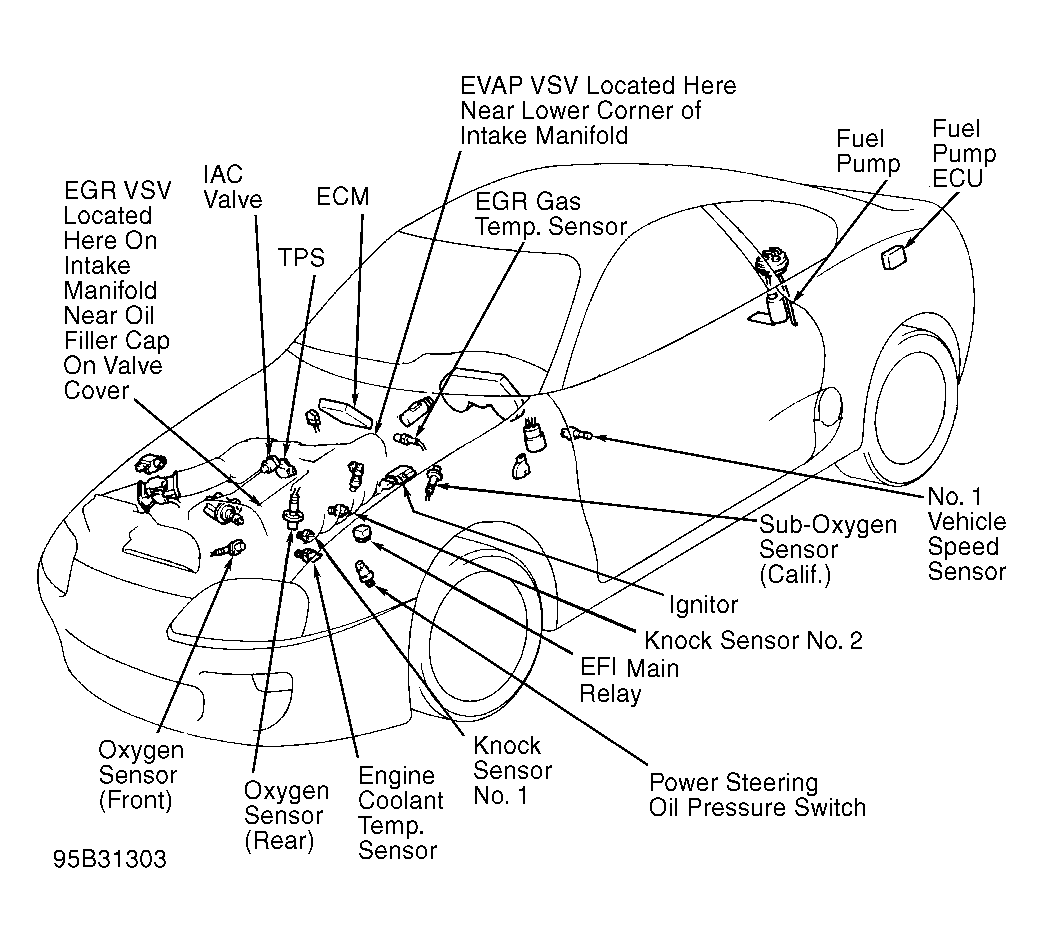

Fig 1: ECM Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECM LOCATION
Model
Location
Supra Non-Turbo
Below Passenger's Side Of Dash, Underneath Carpet On The Floor
