Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

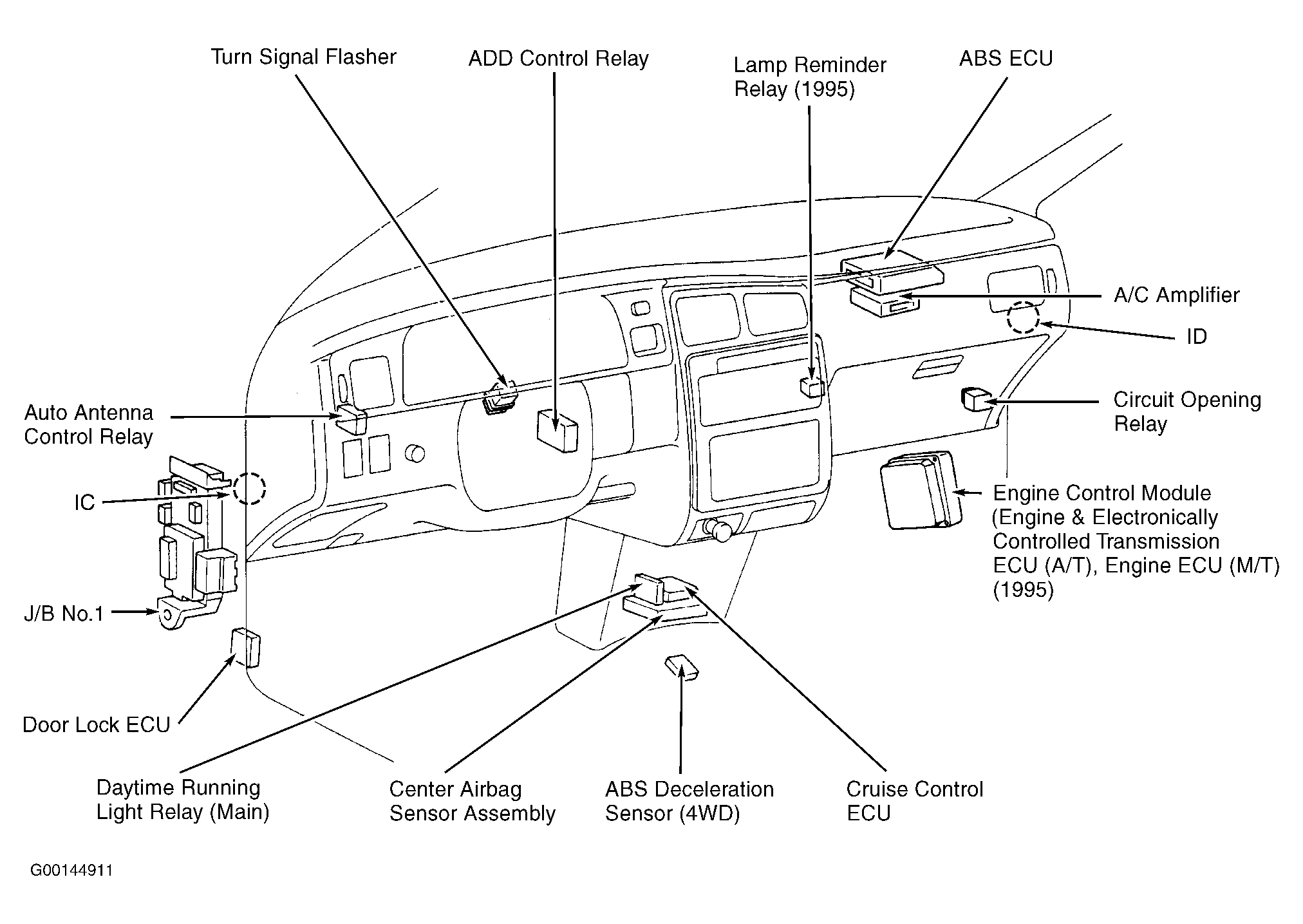

| ABS ECU | Behind right side of dash, above glove box. See Figure. |
| A/C Amplifier | Behind right side of dash, below ABS ECU. See Figure. |
| Center Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control ECU | Below center of dash. See Figure. |
| Door Lock Control ECU (1996) | At left kick panel. |
| Door Lock ECU (1995) | At left kick panel. See Figure. |

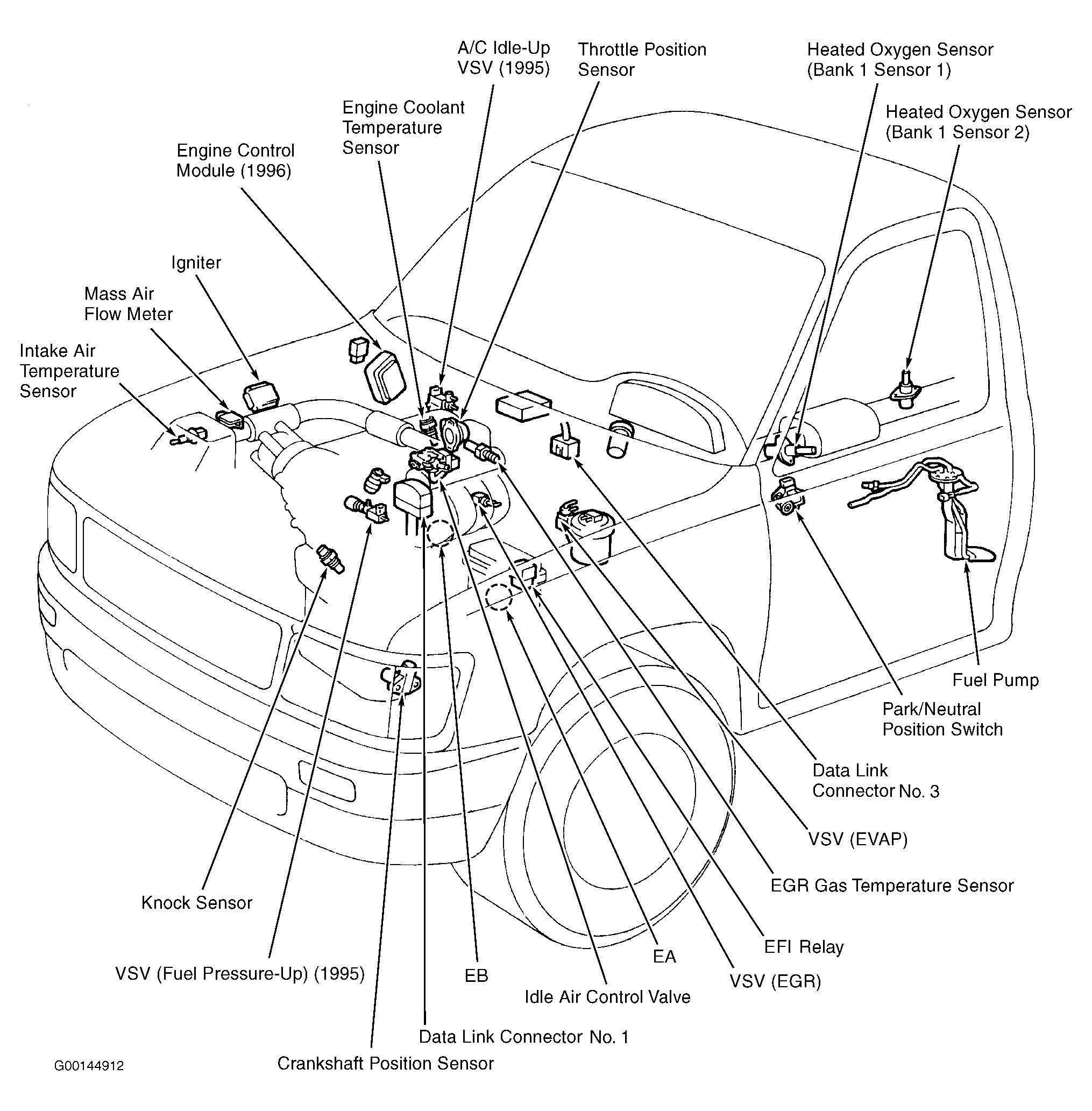

| Engine Control Module (2.7L) (1996) | Below right side of dash, near kick panel. See Figure. |

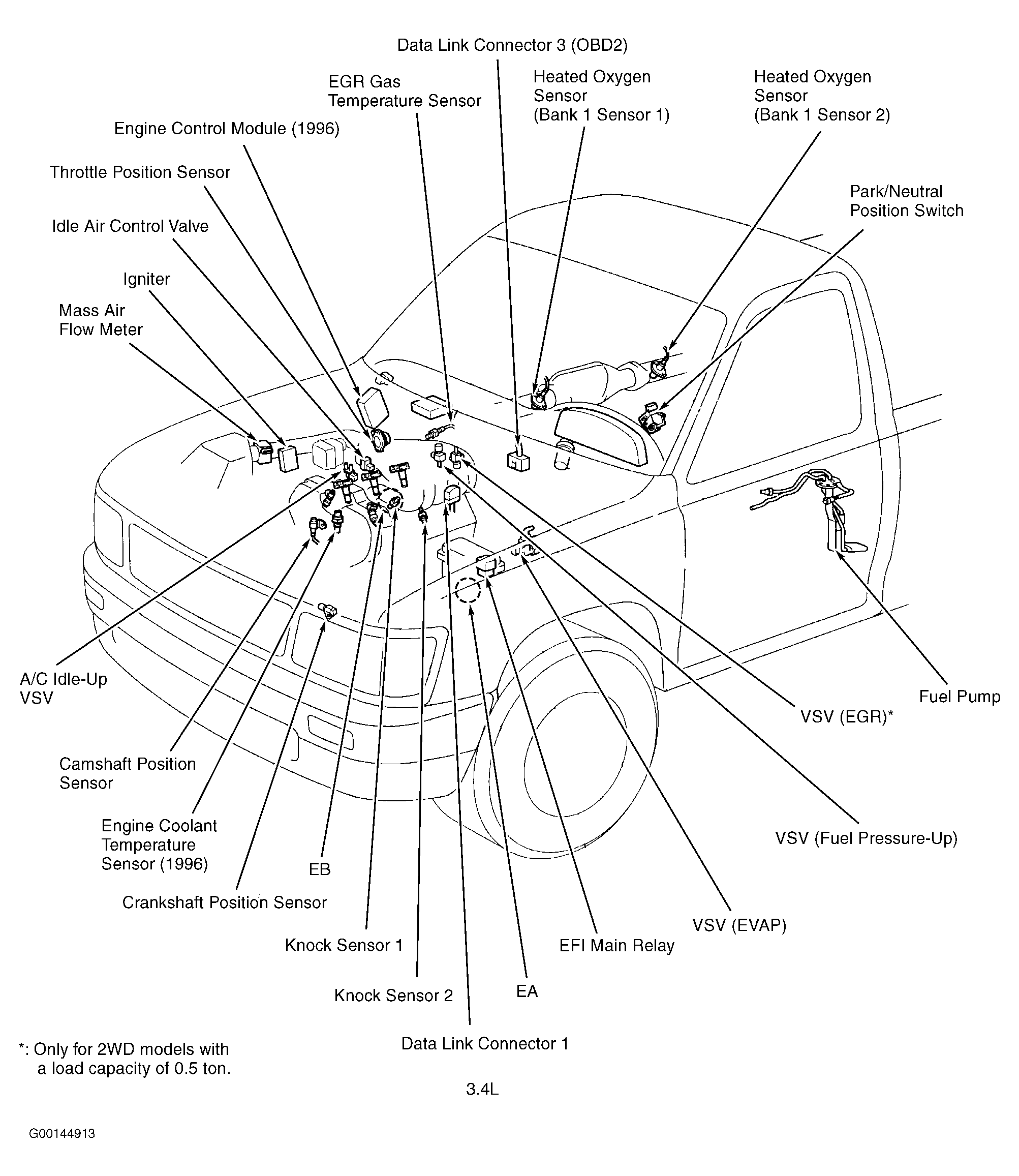

| Engine Control Module (3.4L) (1996) | Below right side of dash, near kick panel. See Figure. |
| Engine Control Module (Engine & Electronically Controlled Transmission ECU (A/T), Engine ECU (M/T) (1995) | Below right side of dash, near kick panel. See Figure. |
