Abs Warning Light Circuit

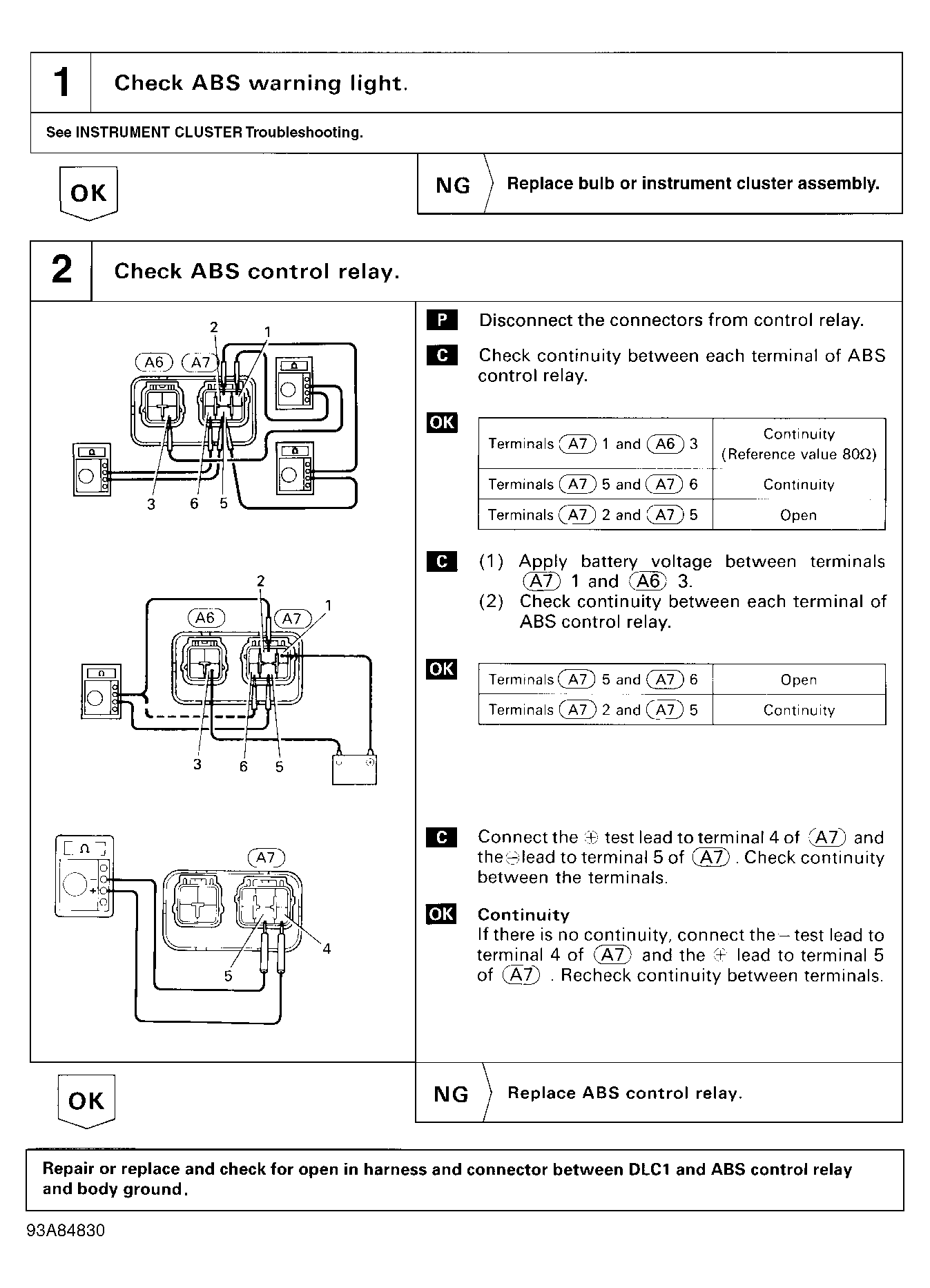

Fig 1: ABS WARNING LIGHT CIRCUIT CHART (1 OF 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

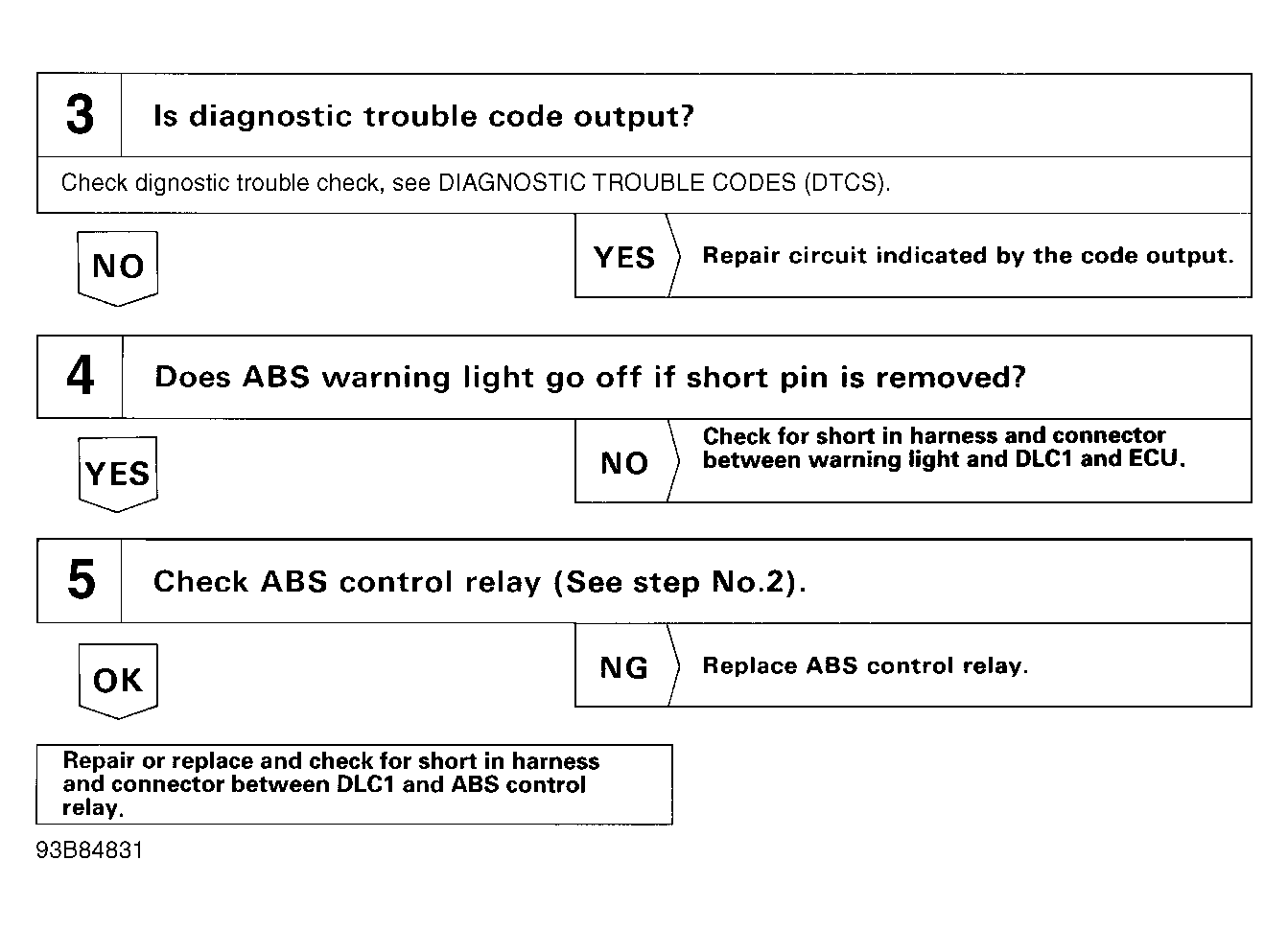

Fig 2: ABS WARNING LIGHT CIRCUIT CHART (2 OF 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

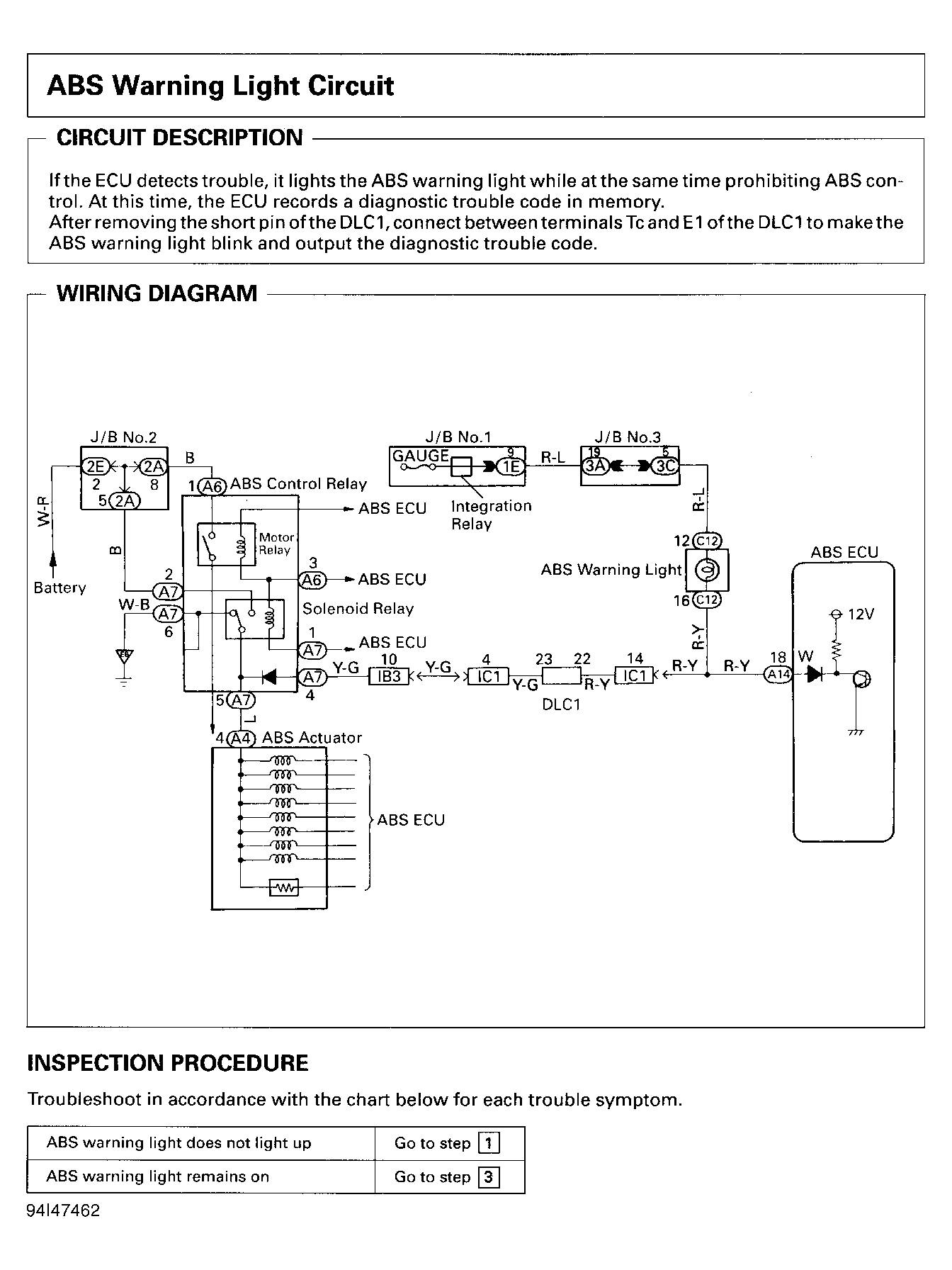

Fig 3: ABS WARNING LIGHT CIRCUIT CHART (3 OF 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
