TRAC Indicator Light Circuit

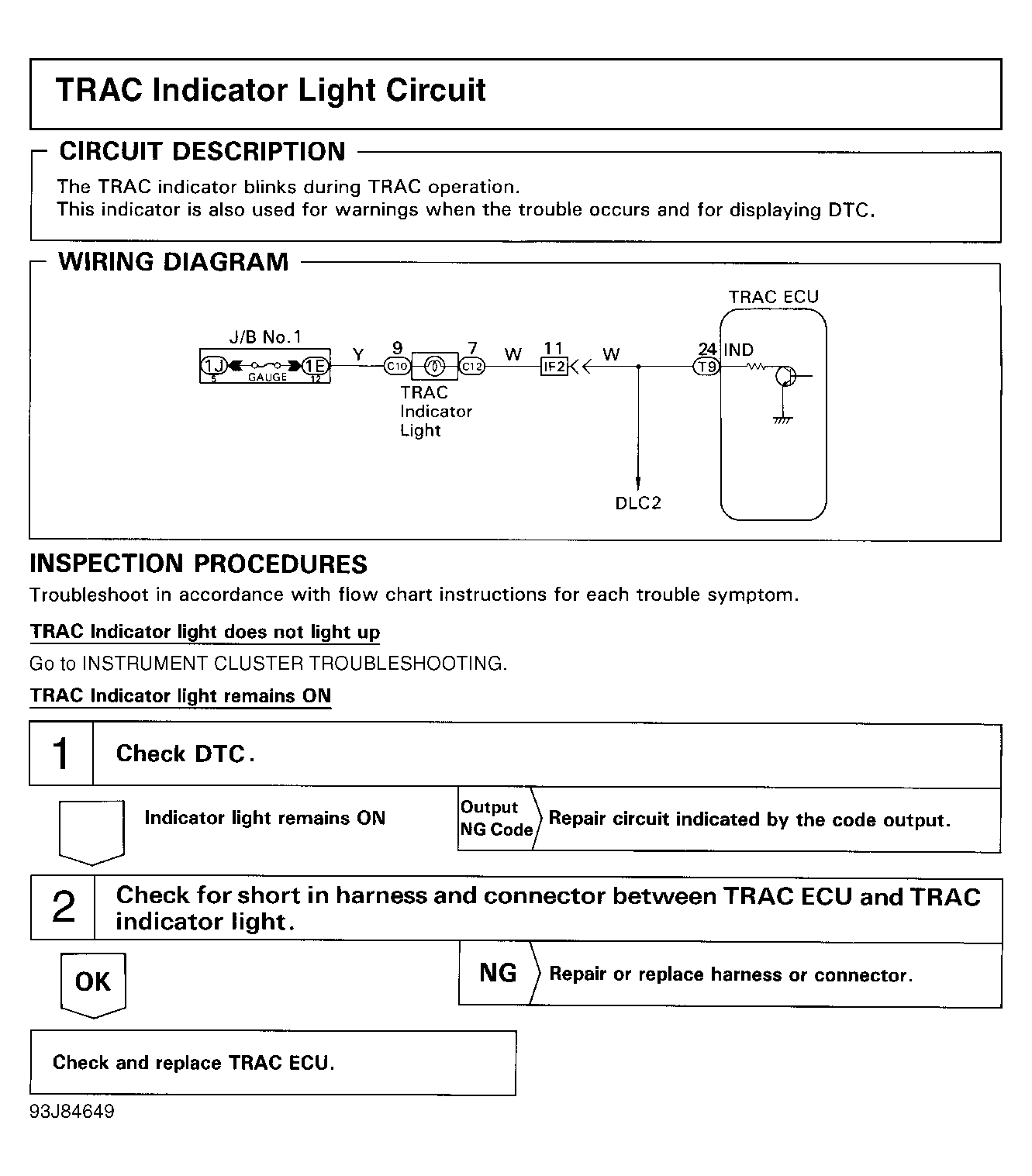

Fig 1: TRAC INDICATOR LIGHT CIRCUIT CHART
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
