Throttle Opener

  1. Warm engine to normal operating temperature. Ensure idle speed is within specification. See IDLE SPEED & MIXTURE in ADJUSTMENTS article.
  2. Disconnect and plug vacuum hose at throttle opener, located on side of throttle body. Start engine. Maintain engine speed at 2500 RPM. Release throttle and note engine speed. Engine speed should be 1300-1700 RPM.
  3. If engine speed is not within specification, rotate throttle opener adjusting screw until correct engine speed is obtained. See Fig 1. Reinstall vacuum hose on throttle opener.

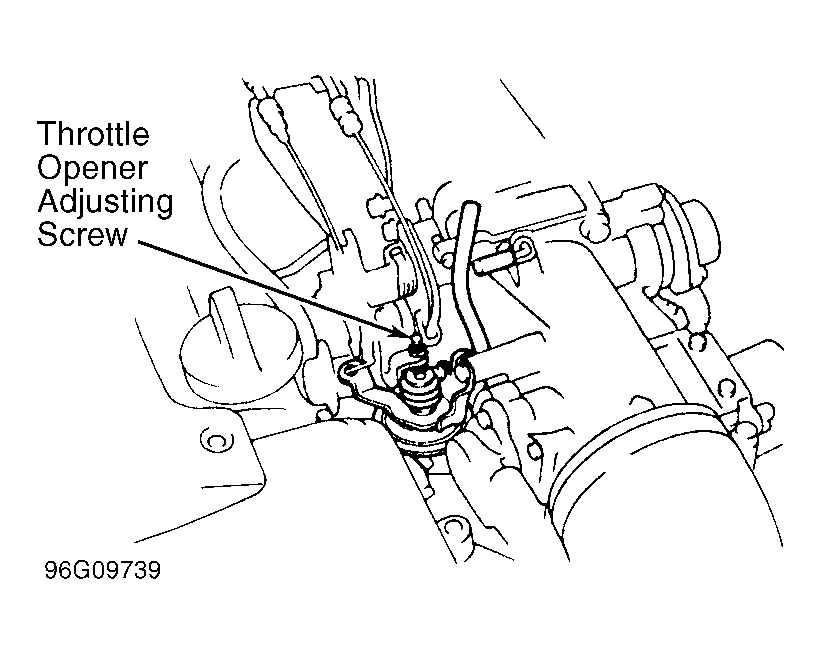

Fig 1: Adjusting Throttle Opener
G96G09739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
