System Testing: Notes

NOTE: Perform all tests using a volt-ohmmeter with a minimum 10-megohm input impedance. See Figure for additional circuit testing.

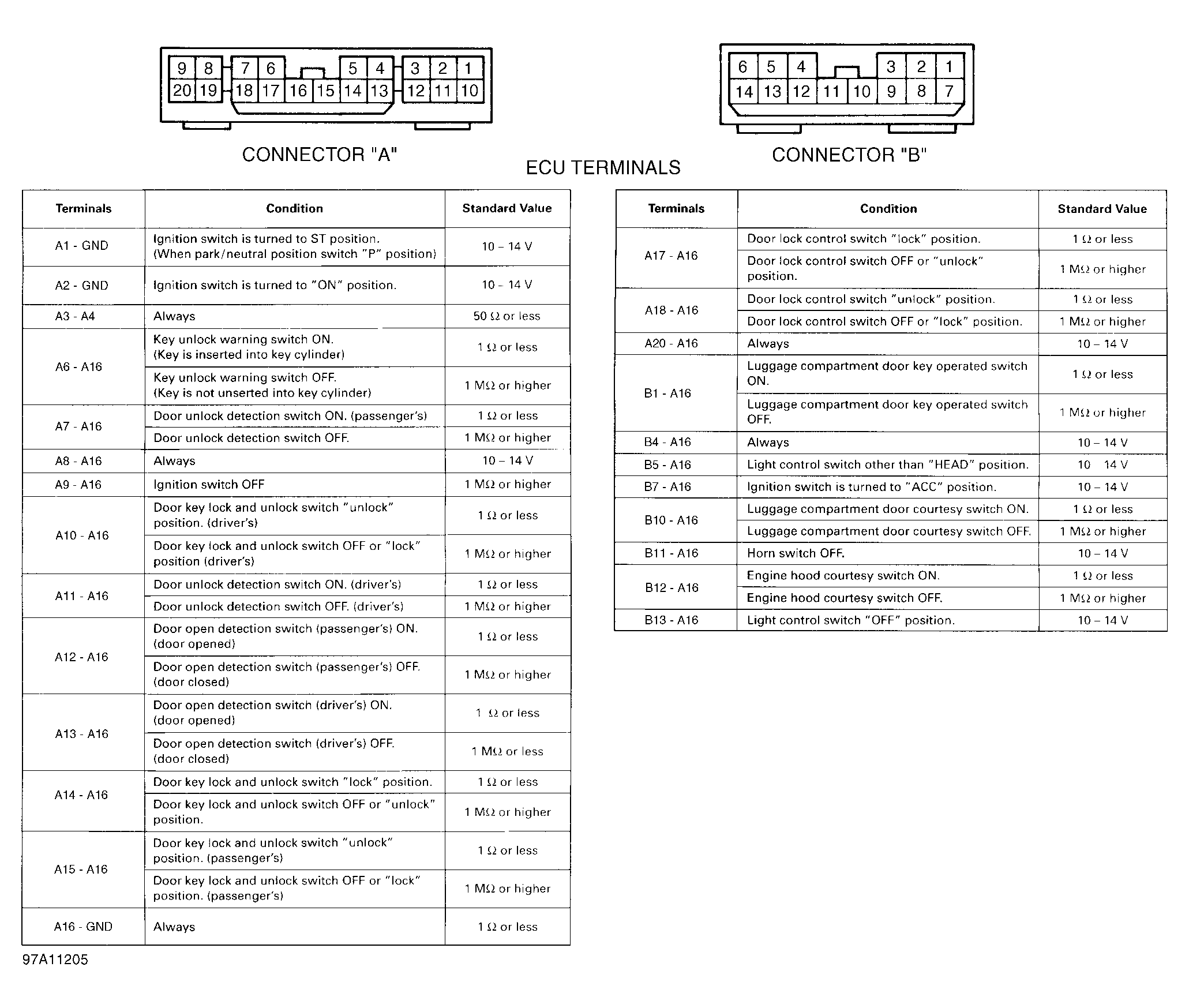

NOTE: To identify ATS ECU connector terminals, See Figure.
