Circuit Testing: Notes

WARNING: Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEM article. DO NOT  apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

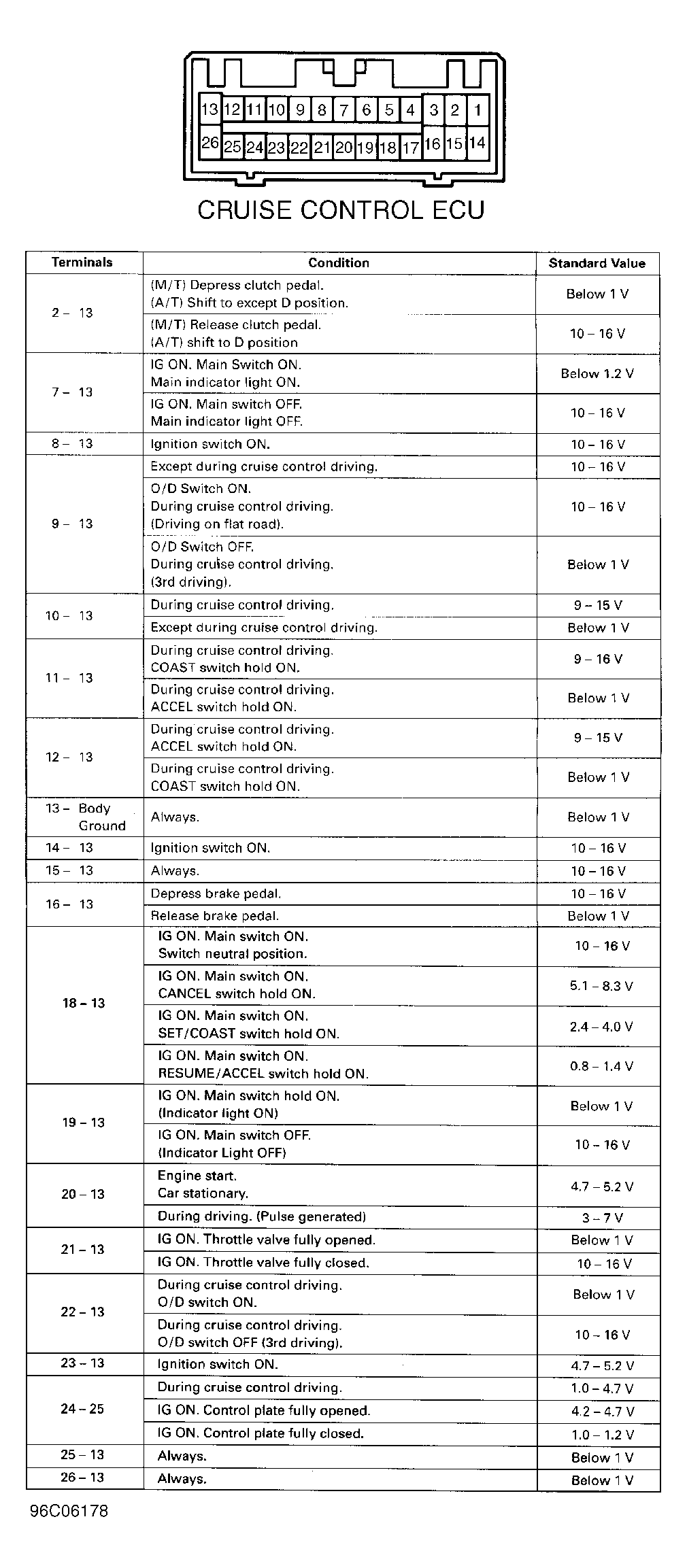

NOTE: To identify CC ECU connector terminals, see Figure. To help identify all other cruise control related connector terminals and wire colors, see WIRING DIAGRAMS .
