Air Induction Systems: Turbochargers: Notes

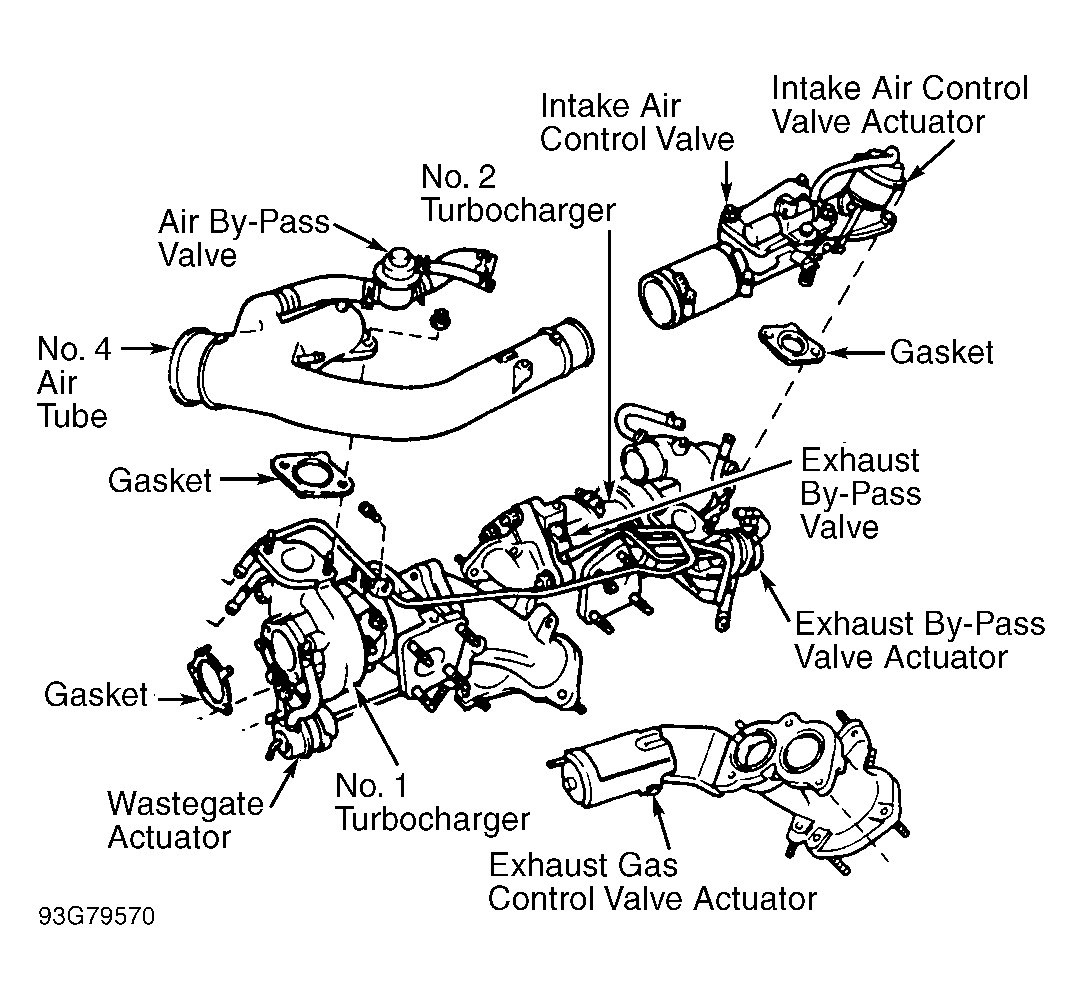

NOTE: No. 1 and 2 turbochargers are used along with various operating valves, actuators, intake air control valve and vacuum switching valves. See Figure. For description of system operation, see TURBOCHARGERS under AIR INDUCTION SYSTEM in THEORY/OPERATION article.
