Engine Control Module (ECM): Removal

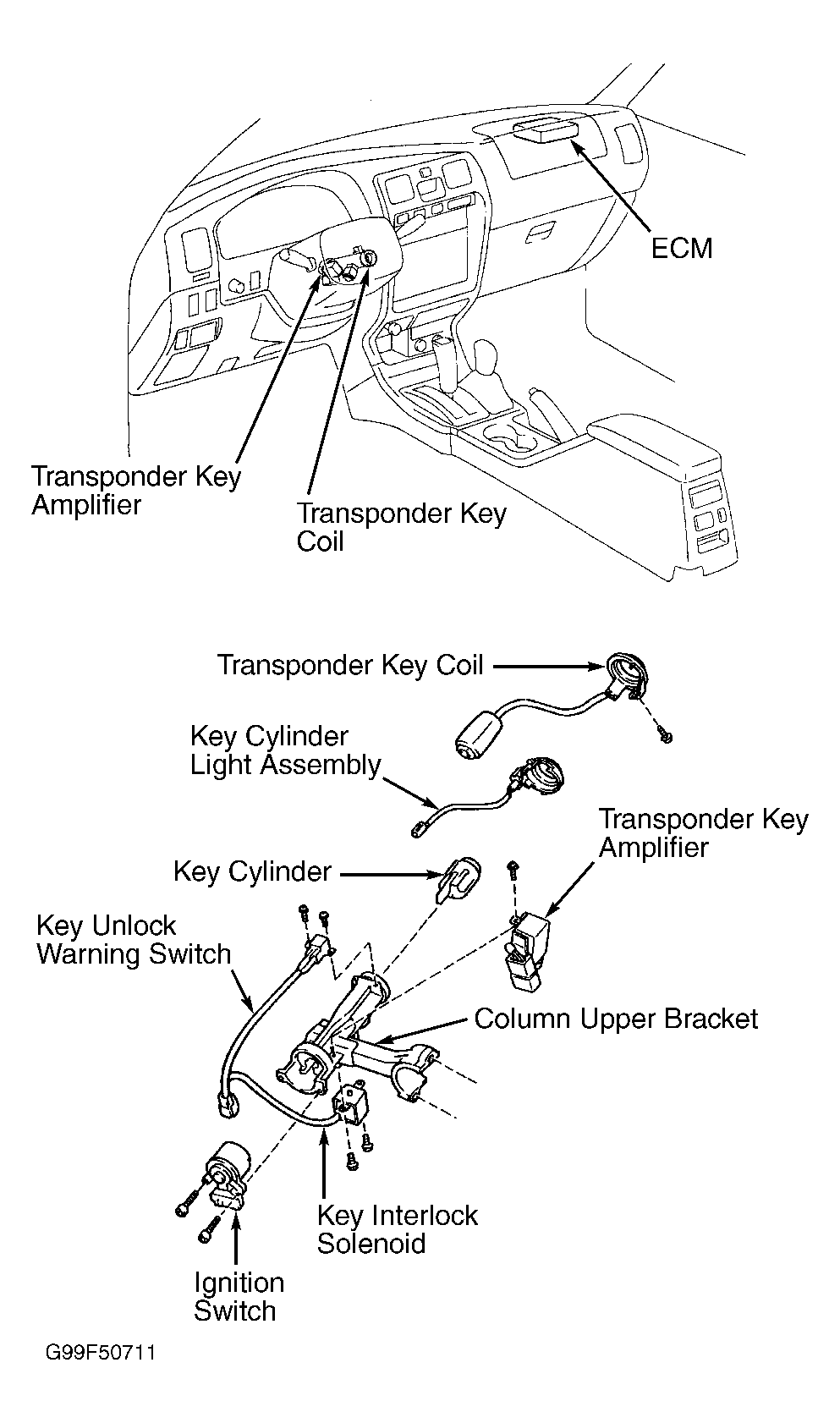

Disconnect negative battery cable. ECM is located behind glove box. See Figure. Remove lower instrument panel covers and glove box door with glove box. Disconnect connectors at ECM. Remove bracket retaining screws and ECM.
