Component Tests

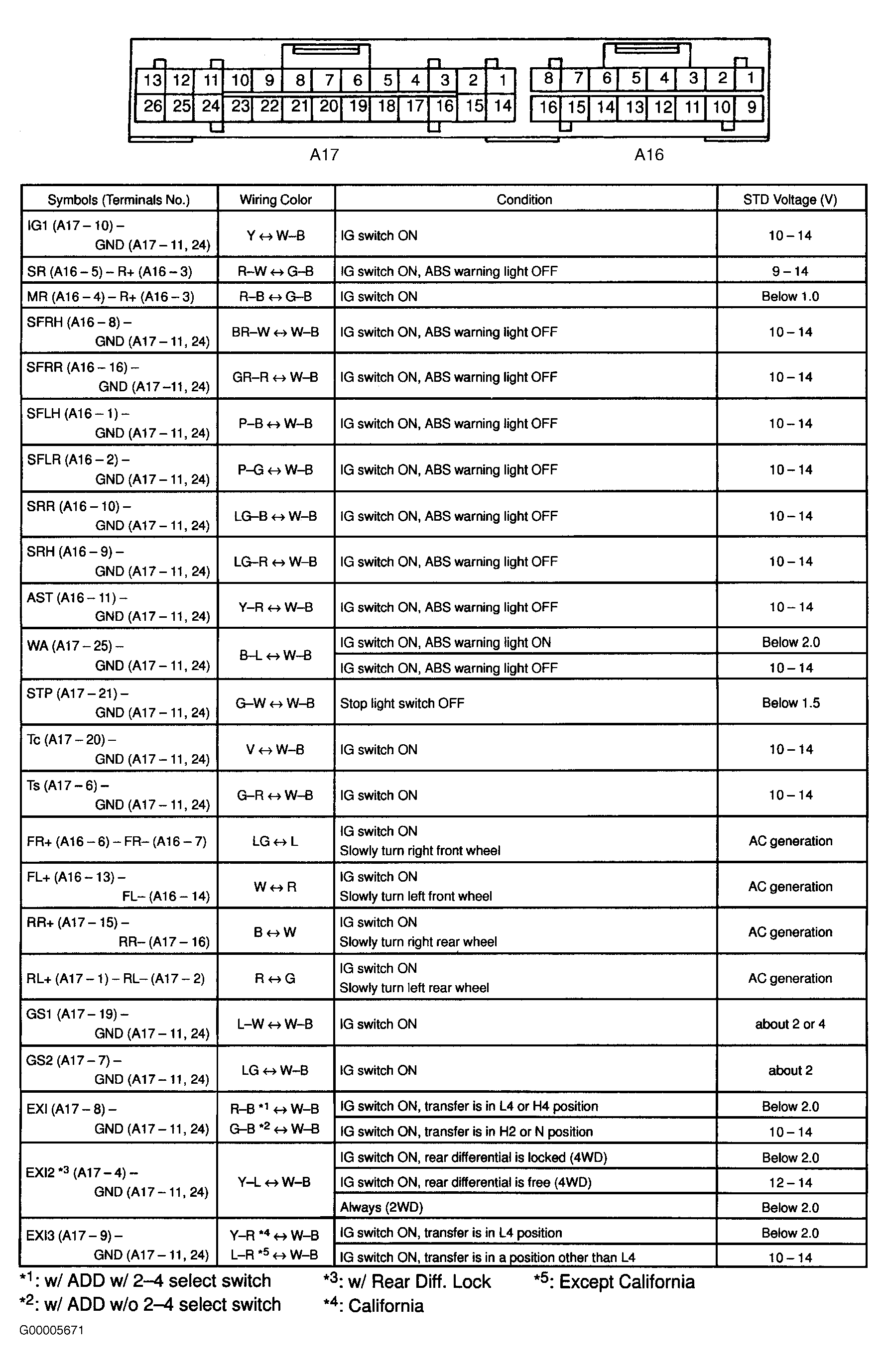

Components are tested with related circuit. See DIAGNOSTIC TESTS . ABS ECU values can be measured using Toyota hand-held tester and breakout box. ABS circuits and harness can also be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1.
