Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |
| Center J/B |

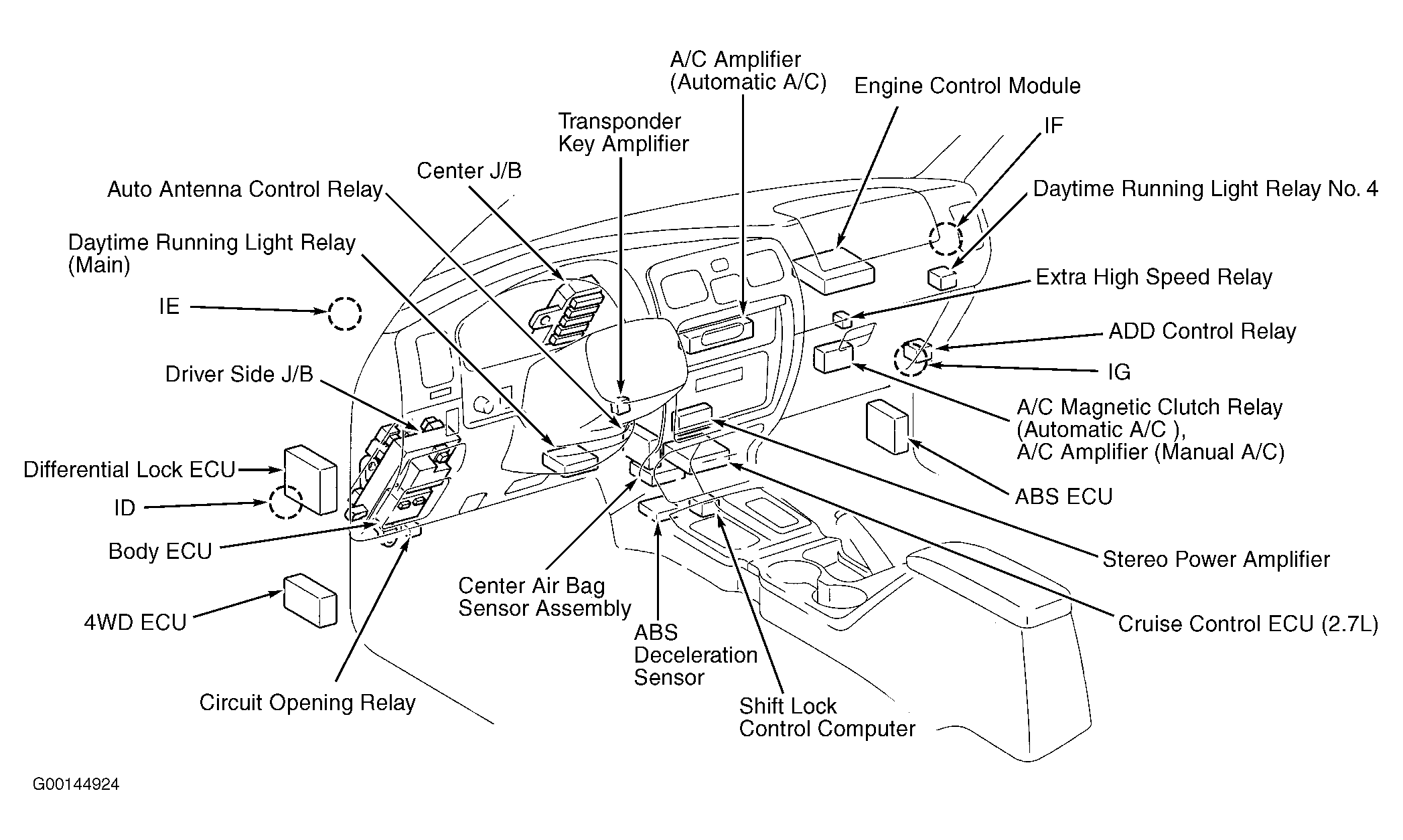

Behind left side of dash, to right of steering column. See Figure. |
| Driver Side J/B |
On lower left side of dash. See Figure. |
| Engine Room R/B |

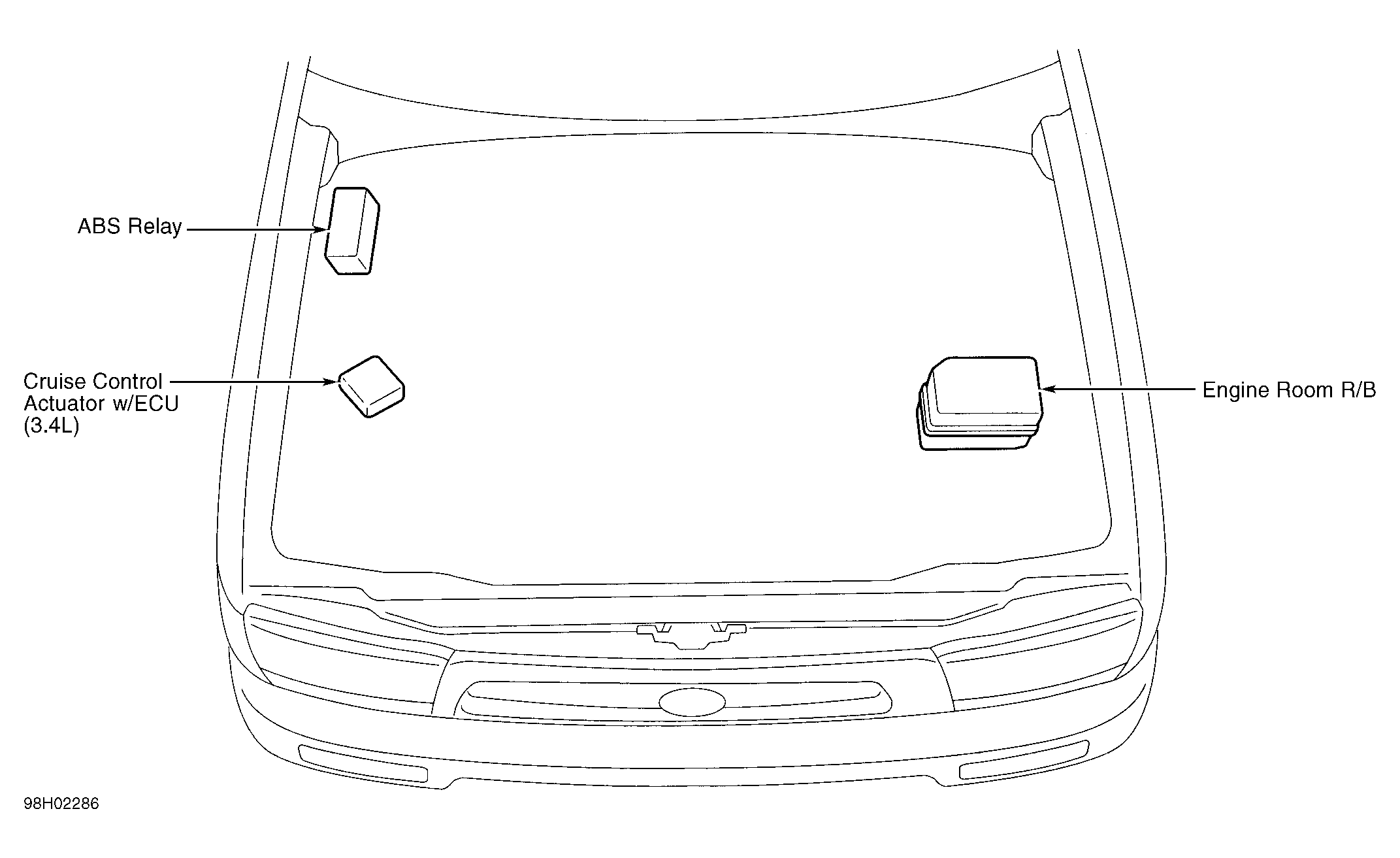

On left side of engine compartment, on inner fender panel. See Figure. |
