Component Locations

For multiplex control system component locations, see Fig 1.

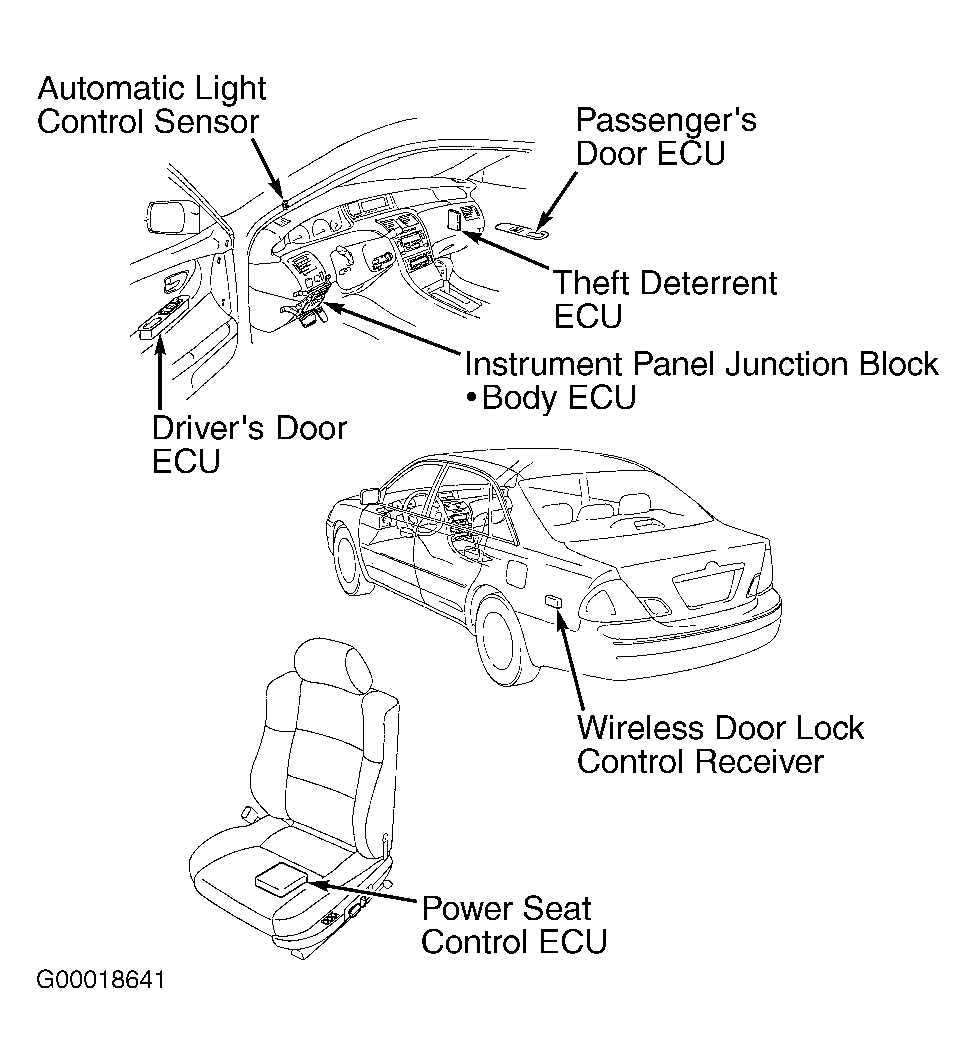

Fig 1: Identifying Multiplex Control System Components
G00018641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
