Engine Control Module (ECM): Removal

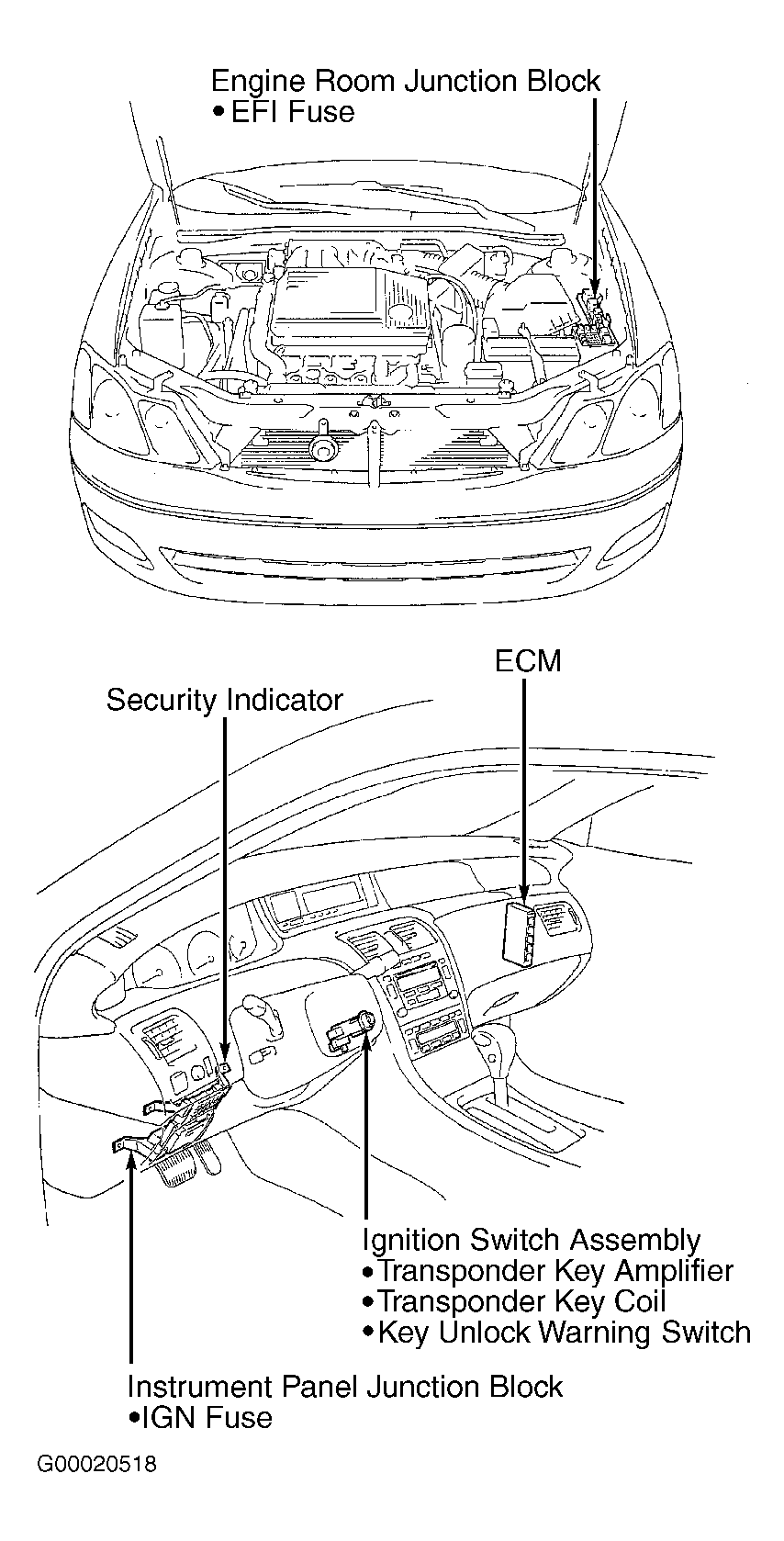

Disconnect negative battery cable. ECM is located behind the glove box. See Figure and Figure . Remove passenger's side door opening scuff plate and kick panel. Remove lower instrument panel covers, glove box door and glove box. Disconnect connectors at ECM. Remove necessary retaining nuts and brackets for removal of ECM. Remove ECM.
