Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |

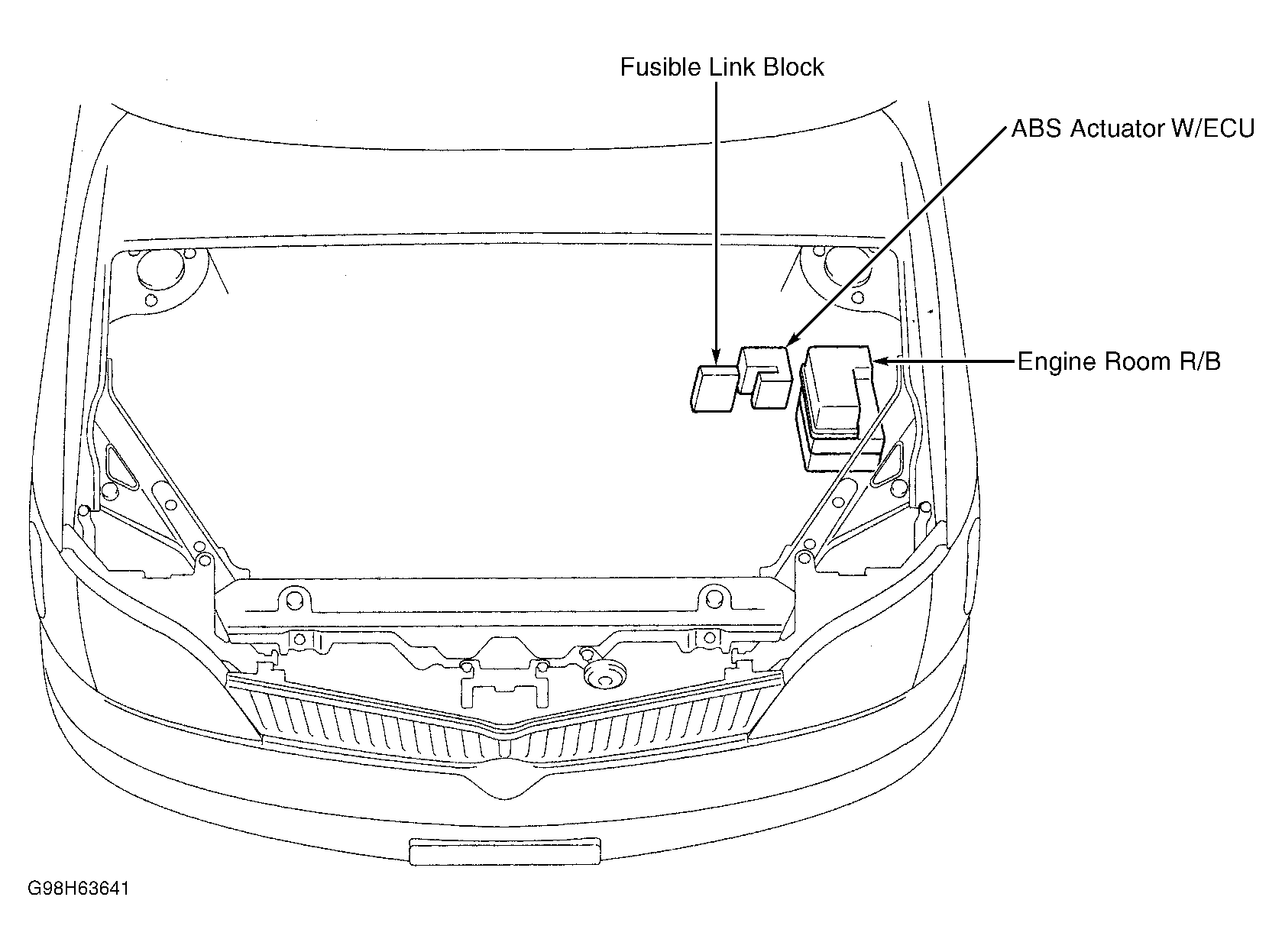

| Engine Room R/B |
On left side of engine compartment. See Figure. |
| Fusible Link Block |
On left side of engine compartment. See Figure. |

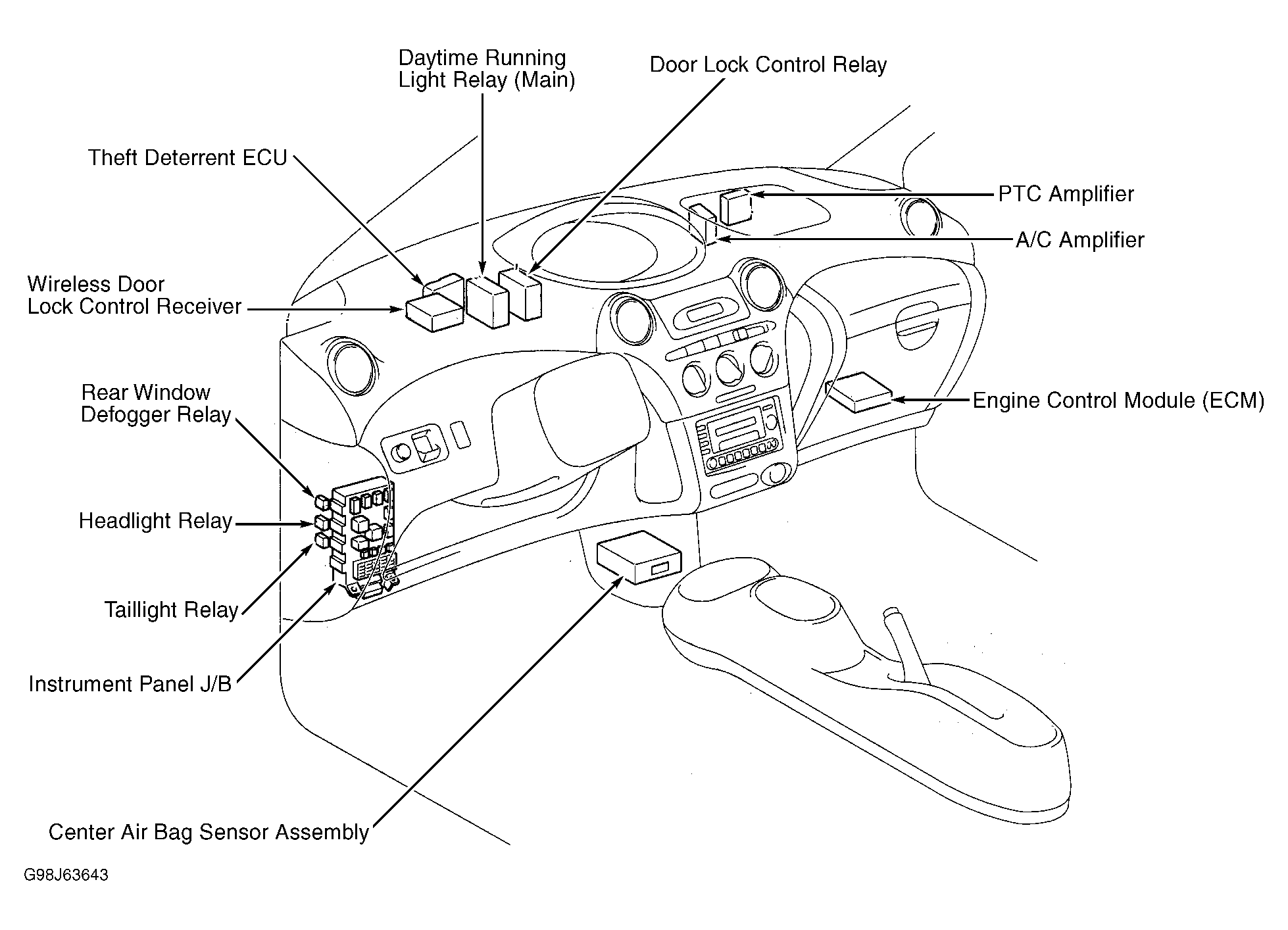

| Instrument Panel J/B |
Behind left side of dash, near base of "A" pillar. See Figure. |
