System Diagram

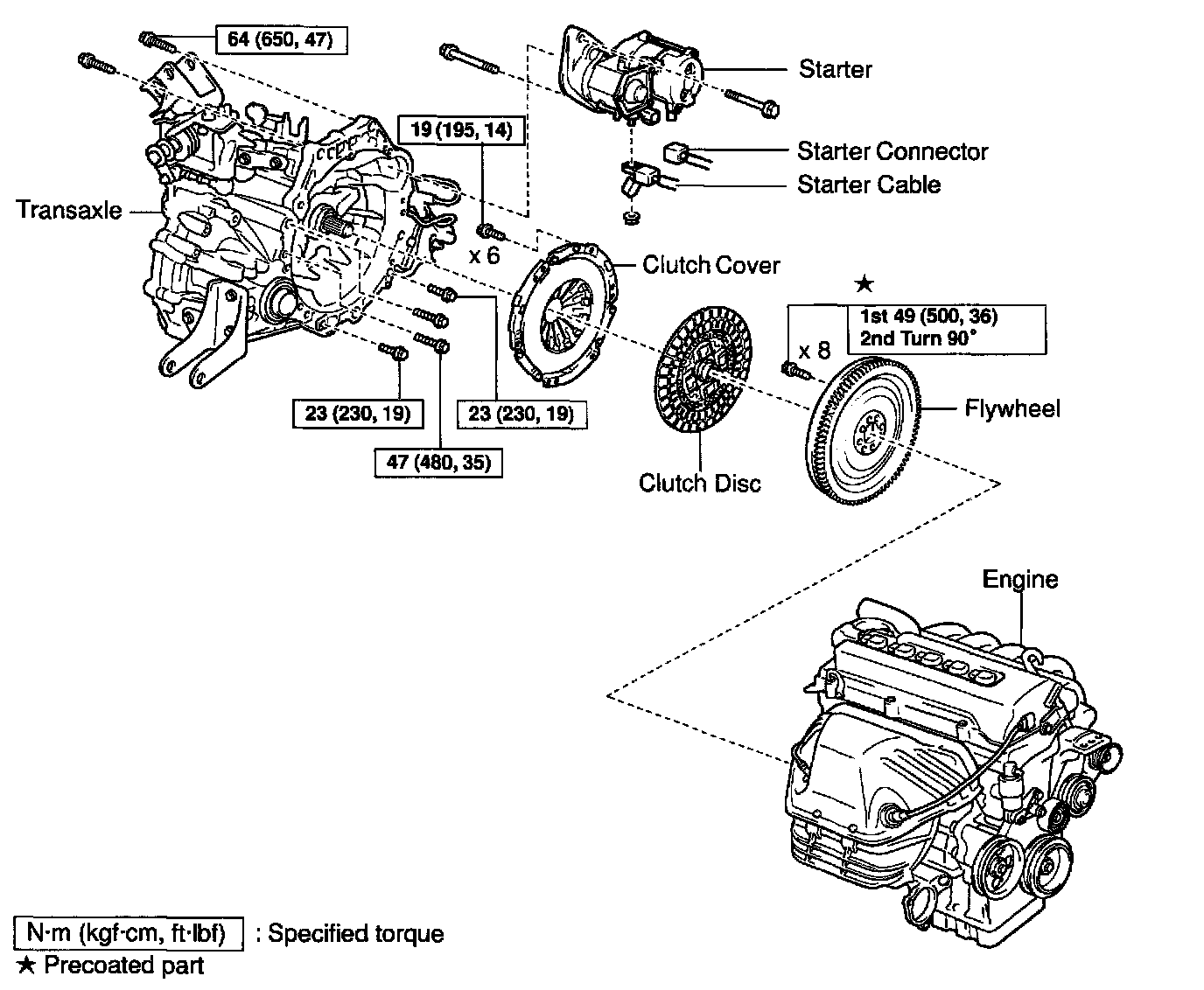

ENGINE UNIT REPLACEMENT





Part 1 of 5





Part 2 of 5





Part 3 of 5





Part 4 of 5





Part 5 of 5
