Section 376 (Instrument Panel): Components

WARNING: This page is about a different car, the 2004 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

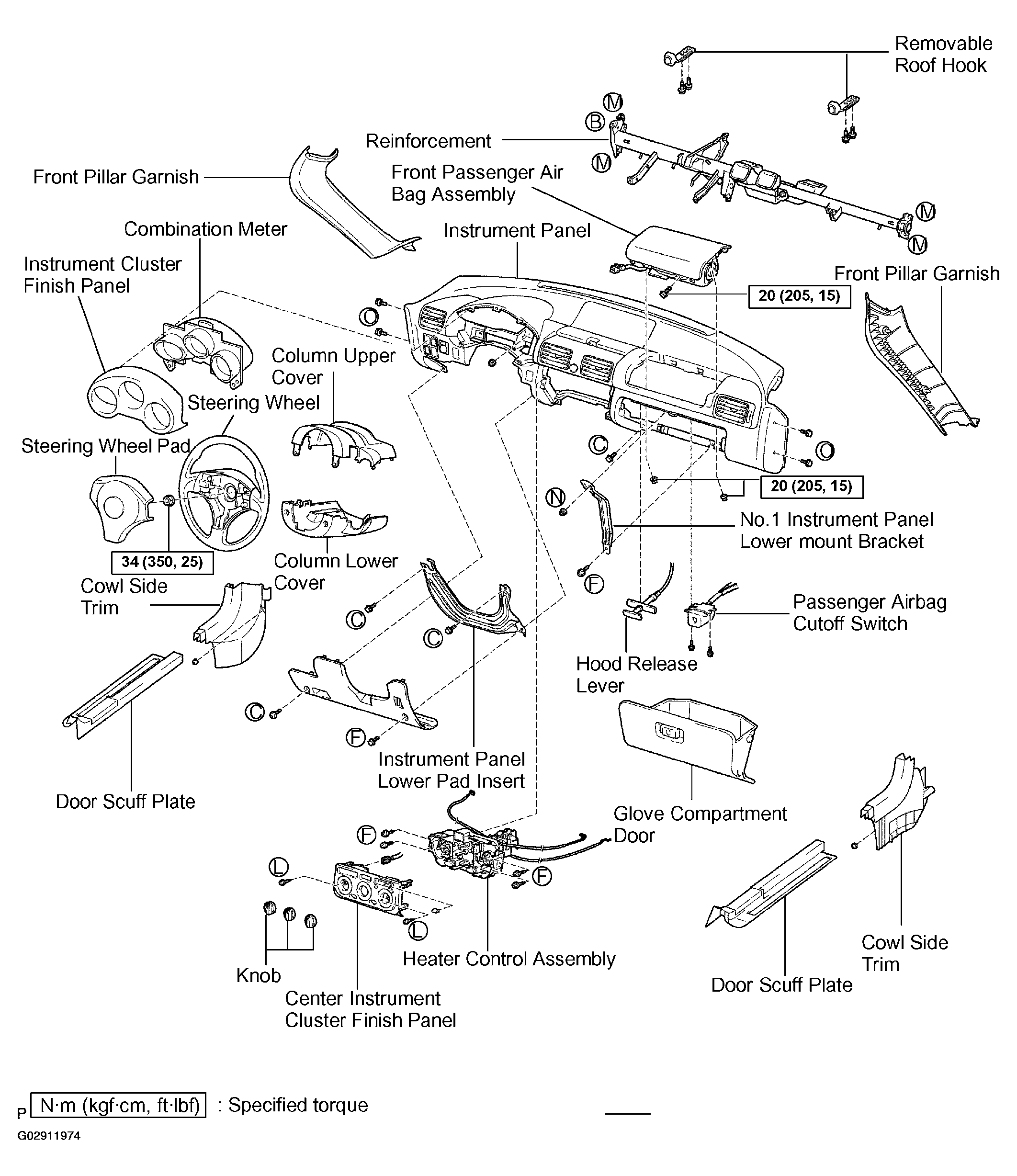

Fig 1: Identifying Instrument Panel Components (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

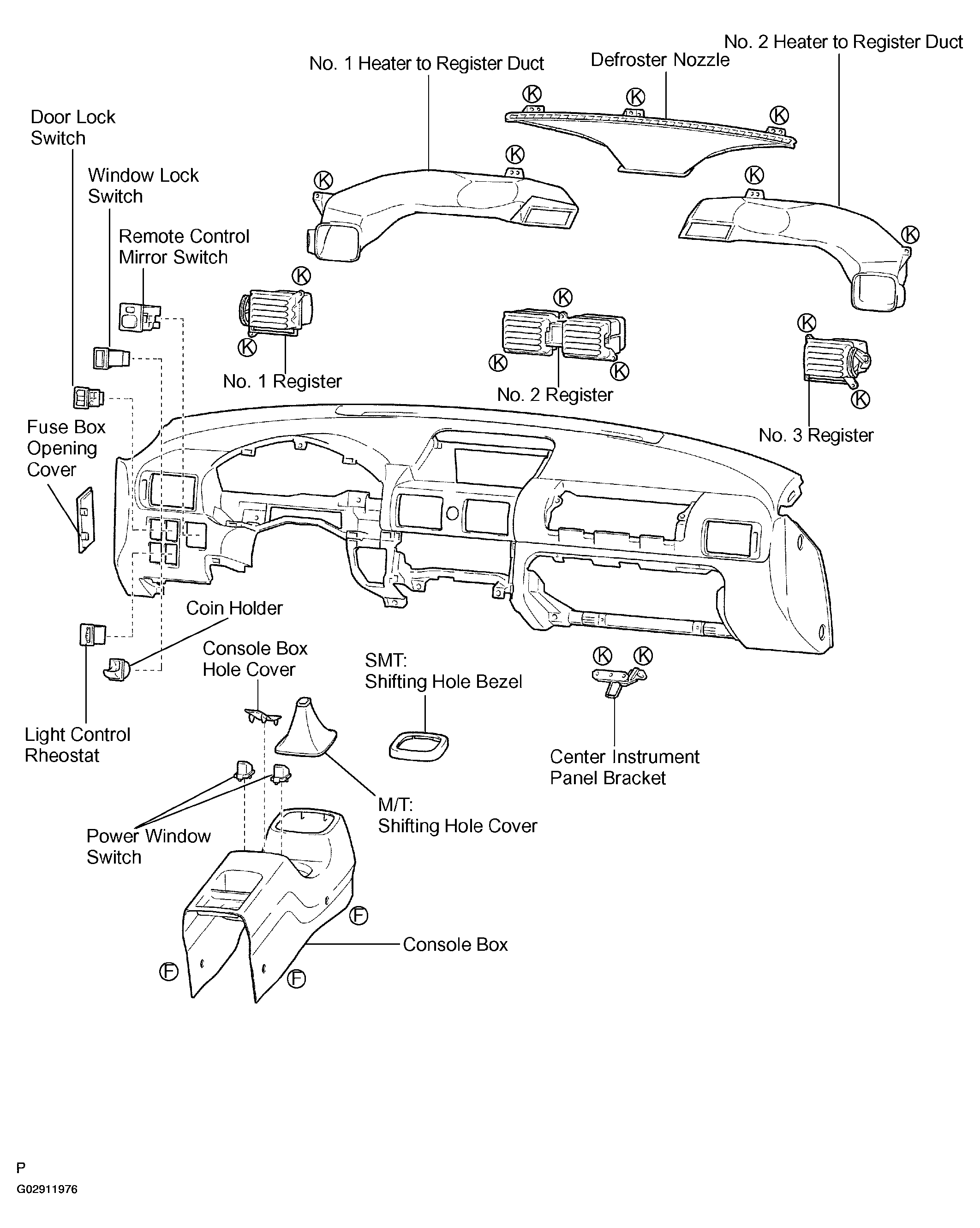

Fig 2: Identifying Instrument Panel Components (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

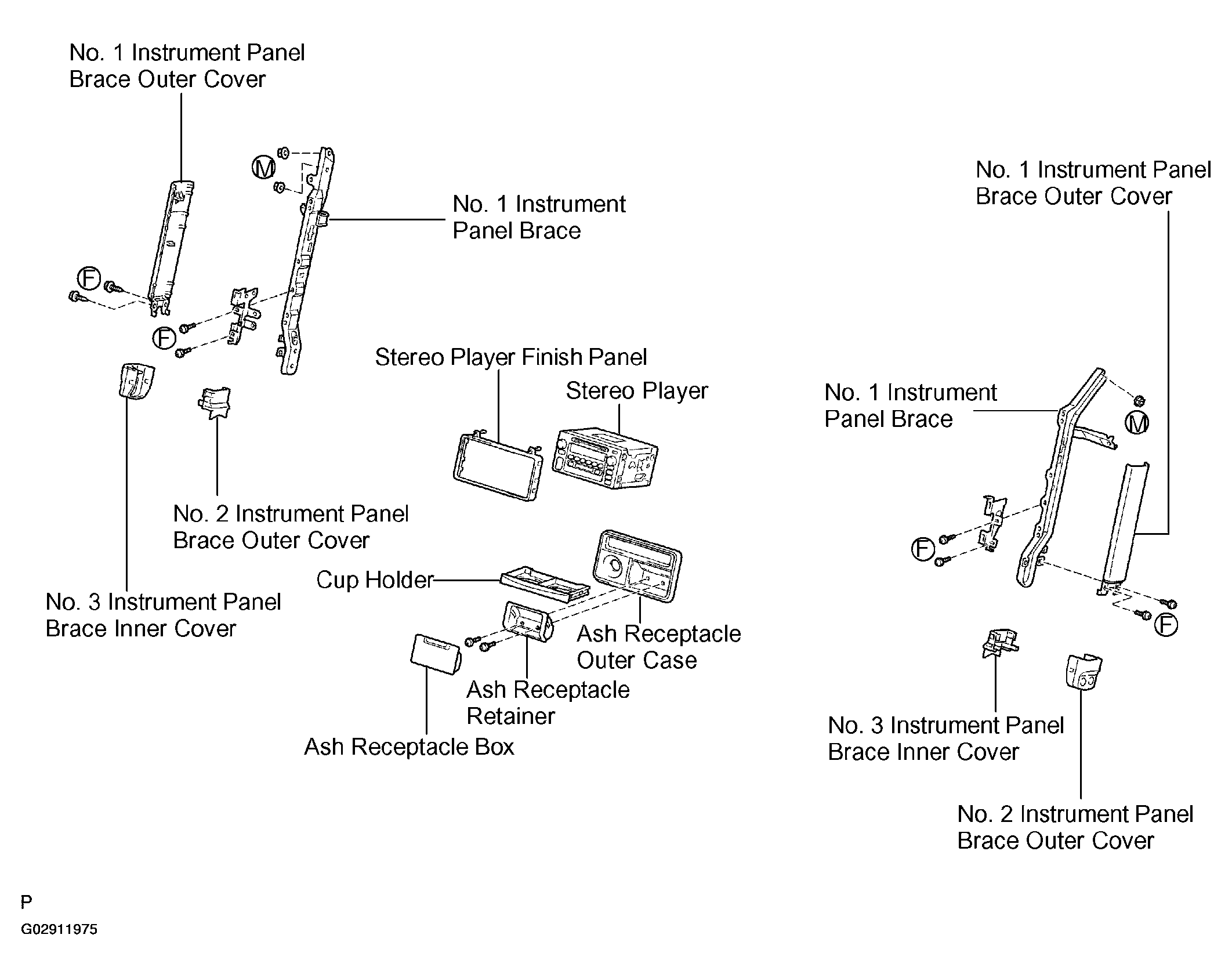

Fig 3: Identifying Instrument Panel Components (3 of 3)

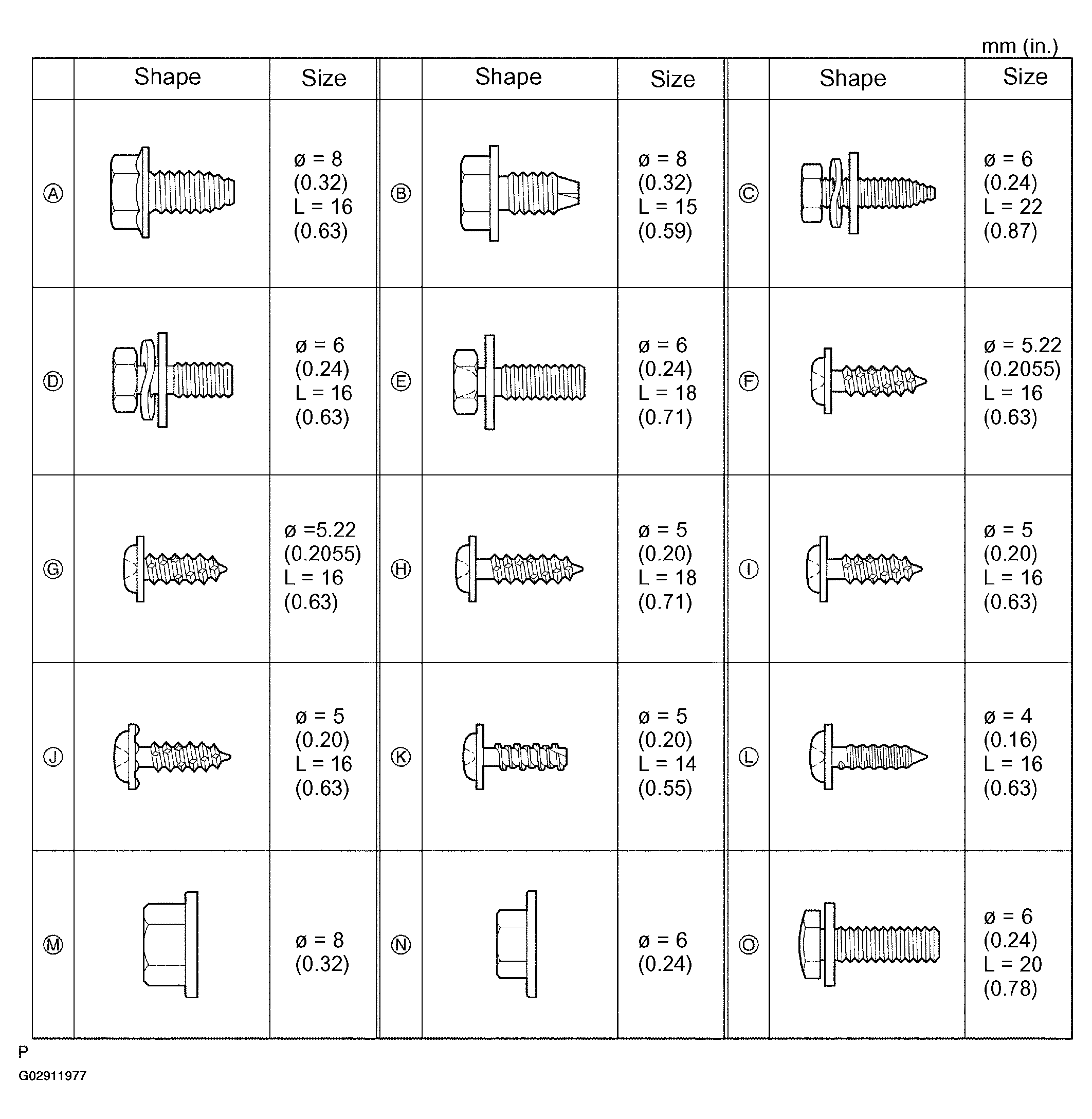

NOTE: Screw shapes and sizes are indicated in the table below. The codes (A - O) correspond to those indicated on the previous pages.

Fig 4: Identifying Different Fasteners
