Remote Control Arming And Disarming

The RS3000 may be ARMED and DISARMED with either of the supplied REMOTE CONTROLS. If the vehicle is equipped with power locks, the doors are locked when the system is ARMED, and unlocked when it is DISARMED. The REMOTE CONTROL'S operating range will vary depending on the surroundings and the REMOTE'S battery strength.

To arm the RS3000 by REMOTE CONTROL

Remove the key from the ignition switch.

Exit the vehicle, and close all entry points (doors, trunk or hatch). (The system will not arm if any of the doors, trunk or hatch is open. )

Press and release the REMOTE CONTROL'S top button once:

The exterior (tail/marker) lights flash once.

The PIEZO "CHIRPER" chirps once. (The PIEZO "CHIRPER" will not sound if the PIEZO OPERATION MODE was set to "OFF". )

The STATUS MONITOR'S LED starts flashing.

The vehicle's interior lights turn on for 3 seconds (as long as the dome light switch is set to the "DOOR" position ).

The vehicle's doors are locked. (The vehicle must be equipped with power locks. )

NOTE: The PIEZO "CHIRPER" will emit a continuous sound for up to 10 seconds if you attempt to REMOTE ARM the system while a door, trunk or hatch is open. (See DOOR AJAR WARNING in the CONVENIENCE FEATURES section.)

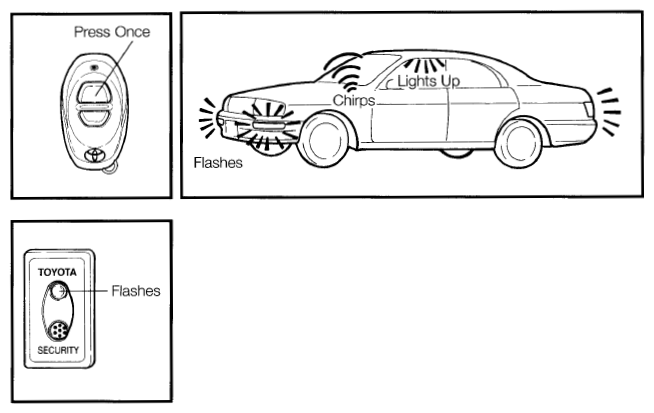

Fig 1: Arming RS3000 By Remote Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To disarm the RS3000 by REMOTE CONTROL

Press and release the REMOTE CONTROL'S top button once:

The exterior lights (tail/marker) flash twice.

The PIEZO "CHIRPER" chirps twice. (The PIEZO "CHIRPER" will not sound if the PIEZO OPERATION MODE was set to "OFF". )

The STATUS MONITOR'S LED stops flashing.

The vehicle's interior lights turn on for 30 seconds, or until the doors are closed (as long as the dome light switch is set to the "DOOR" position ).

The vehicle's doors are unlocked. (The vehicle must be equipped with power locks.)

NOTE: Should the exterior lights flash 3 times when the system is DISARMED by REMOTE, the TRIGGER MEMORY was activated; the system was TRIGGERED and reset while you were away from the vehicle.

Pressing the REMOTE CONTROL'S button for more than 2 seconds will activate the PANIC MODE.

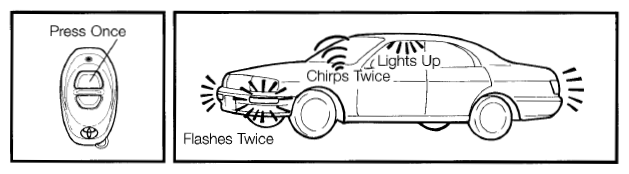

Fig 2: Disarming RS3000 By Remote Control
