Entry Delay Time Selection

The factory set ENTRY DELAY time (for when system PASSIVELY ARMED) is 15 seconds.

To adjust the ENTRY DELAY time, follow the steps below:

Sit in the driver's seat with all doors and the trunk (or hatch) closed.

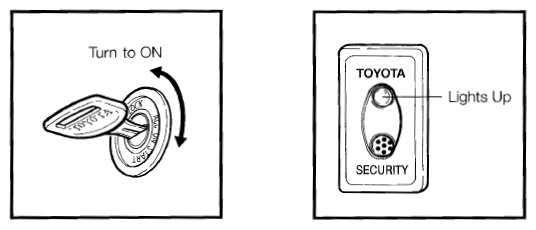

Insert the key into the ignition switch, and turn it to "ON" (not "ACC) 5 times (ON→LOCK→ON→LOCK→ON→LOCK→ON→LOCK→ON) within a 10 second period. The STATUS MONITOR'S LED turns on, and the PIEZO "CHIRPER" sounds once.
-YOU MUST PERFORM THE NEXT STEPS WITHIN 30 SECONDS-
Select the operating mode.

ENTRY DELAY TIME SELECTION PROGRAMMING PROCEDURE

DELAY TIME

Programming Step

Programming Completion

5 SECONDS

Open and close the driver's door once.

Turn the ignition switch to K the "LOCK"⁽¹⁾ position.
(The PIEZO "CHIRPER" chirps once, and the exterior lights flash once.)

15 SECONDS

Open and close the driver's door twice.

Turn the ignition switch to the "LOCK"⁽¹⁾ position. (The PIEZO "CHIRPER" chirps twice, and the exterior lights flash twice.)

30 SECONDS

Open and close the driver's door three times.

Turn the ignition switch to the "LOCK"⁽¹⁾ position.
(The PIEZO "CHIRPER" chirps three times, and the exterior lights flash three times.)

⁽¹⁾	If you do not turn the ignition key to "LOCK", or exceed 30 seconds during the programming steps, the STATUS MONITOR'S LED will turn off, and the previous operation mode will remain unchanged.

Fig 1: Procedure For Entry Delay Time Selection
