Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Timing Chain Cover Plug
ECHO 11 (15.0)
Valve Cover Bolt Or Nut
Camry CNG & Gasoline Models, & Camry Solara 33 (45)
Celica
1.8L 1ZZ-FE (1)
1.8L 2ZZ-GE (2)
Corolla (3)
ECHO (4)
RAV4 33 (45)
Tacoma & 4Runner (5)
Ventilation Pipe Bolt/Nut
Celica
1.8L 2ZZ-GE (6)
INCH Lbs. (N.m)
Ignition Coil Bolt
Celica, Corolla & ECHO 80 (9.0)
Tacoma & 4Runner
Calif. Models 69 (7.8)
(1) Tighten bolts/nuts with washer to 80 INCH lbs. (9.0 N.m). Tighten bolts/nuts without washer to 97 INCH lbs. (11.0 N.m).
(2) Tighten bolts to 88 INCH lbs. (9.9 N.m).

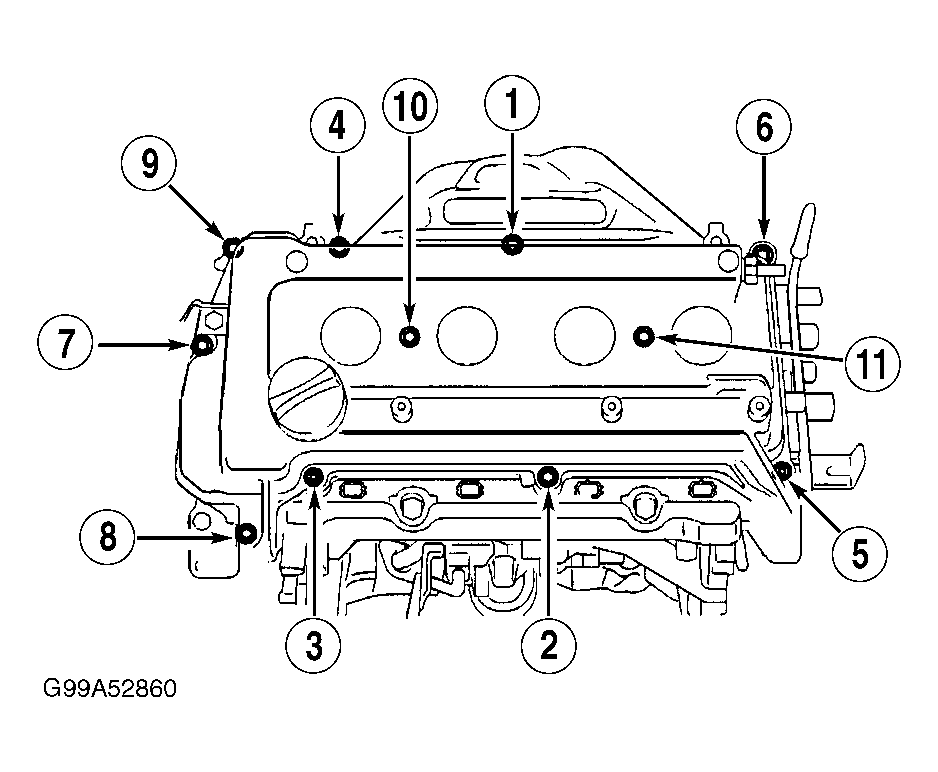

(3) Tighten bolts/nuts with washer to 80 INCH lbs. (9.0 N.m). Tighten bolts/nuts without washer to 97 INCH lbs. (11.0 N.m). Tighten bolts/nuts to specification in sequence. See Figure.

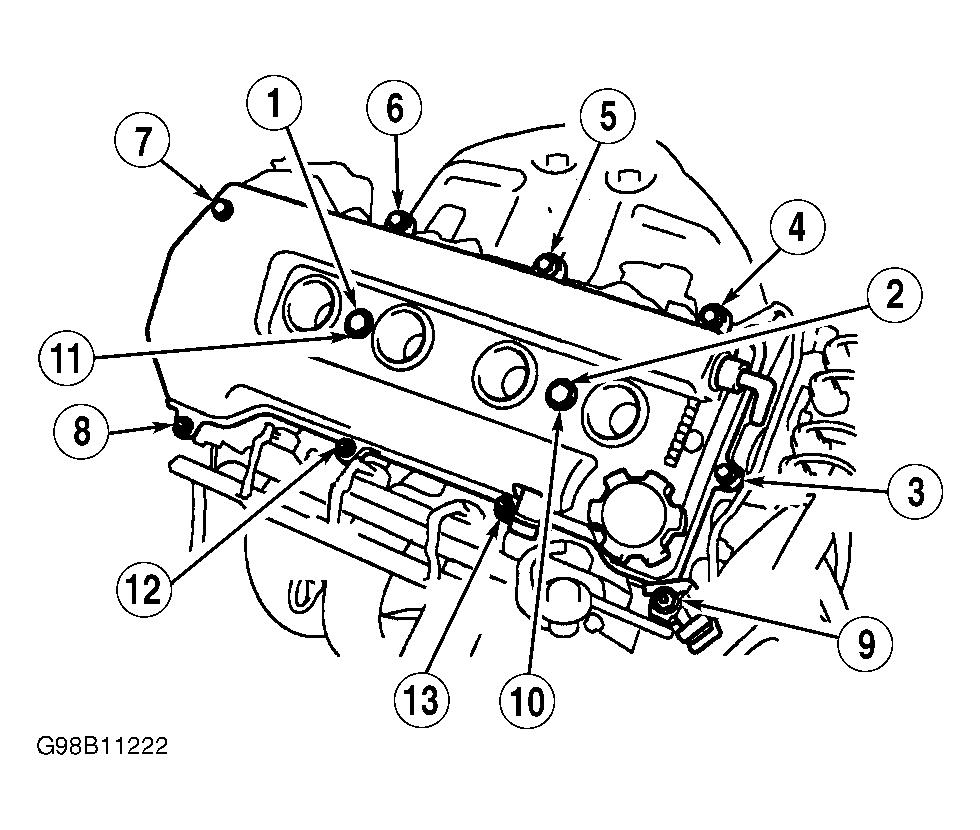

(4) Tighten bolts/nuts to 88 INCH lbs. (9.9 N.m) to specification in sequence. See Figure.
(5) Information is not available from manufacturer.
(6) Tighten nuts to 88 INCH lbs. (9.9 N.m) and bolt to 18 ft. lbs. (24 N.m).
