Cylinder Block Specifications

WARNING: This page is about a different variant/trim than selected.

CYLINDER BLOCK

Application

In. (mm)

Cylinder Bore ⁽¹⁾

Size Mark "1"

3.3858-3.3862 (86.000-86.010)

Size Mark "2"

3.3862-3.3866 (86.010-86.020)

Size Mark "3"

3.3866-3.3870 (86.020-86.030)

Maximum Standard Size

3.3949 (86.230)

.020" (.50 mm) Oversize

3.4146 (86.731)

Maximum Deck Warpage

.0020 (.050)

Main Bearing Bore I.D. ⁽²⁾

Size Mark "1"

2.3236-2.3239 (59.020-59.026)

Size Mark "2"

2.3239-2.3241 (59.026-59.032)

Size Mark "3"

2.3241-2.3243 (59.032-59.038)

⁽¹⁾	Cylinder bore diameter is determined by size mark on cylinder block deck surface. See Figure.

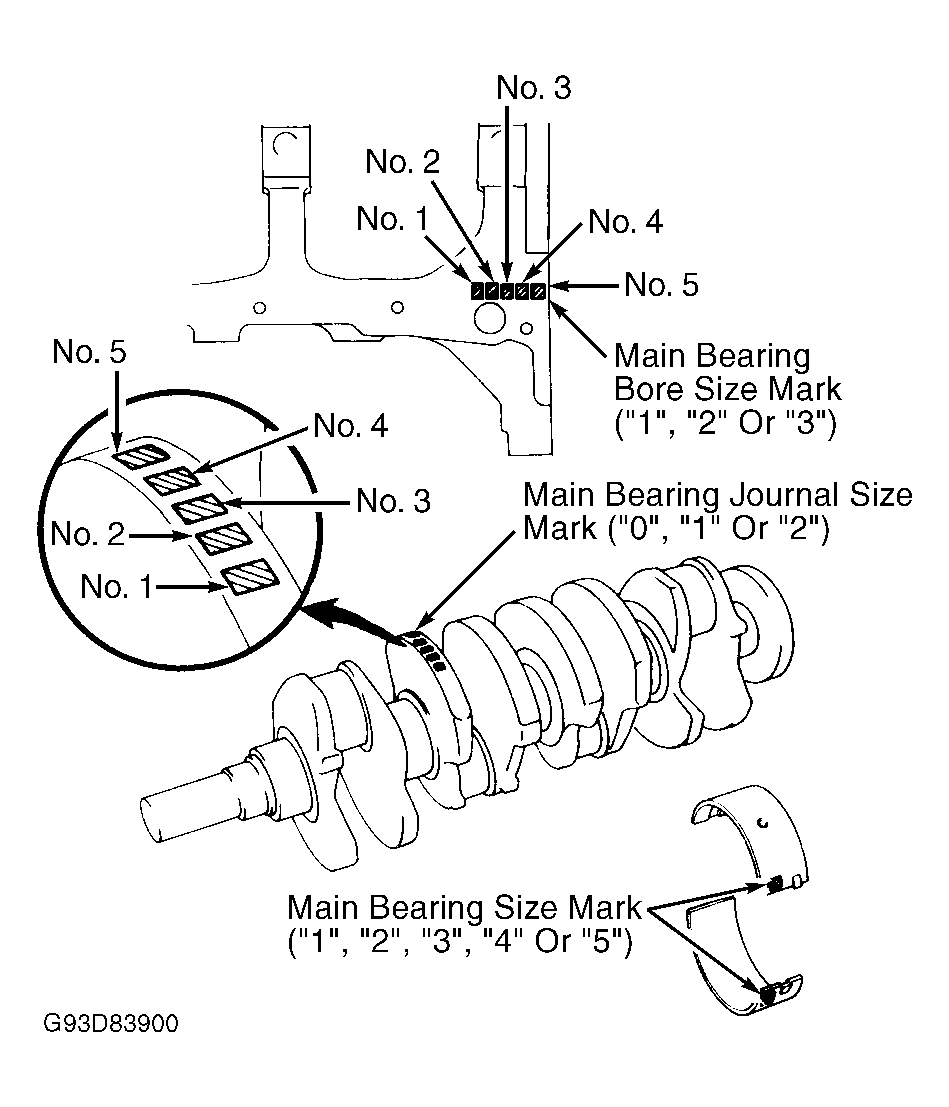

⁽²⁾	Main bearing bore I.D. is determined by main bearing bore size mark on cylinder block. See Figure.
