Engine Control Module (ECM): Removal

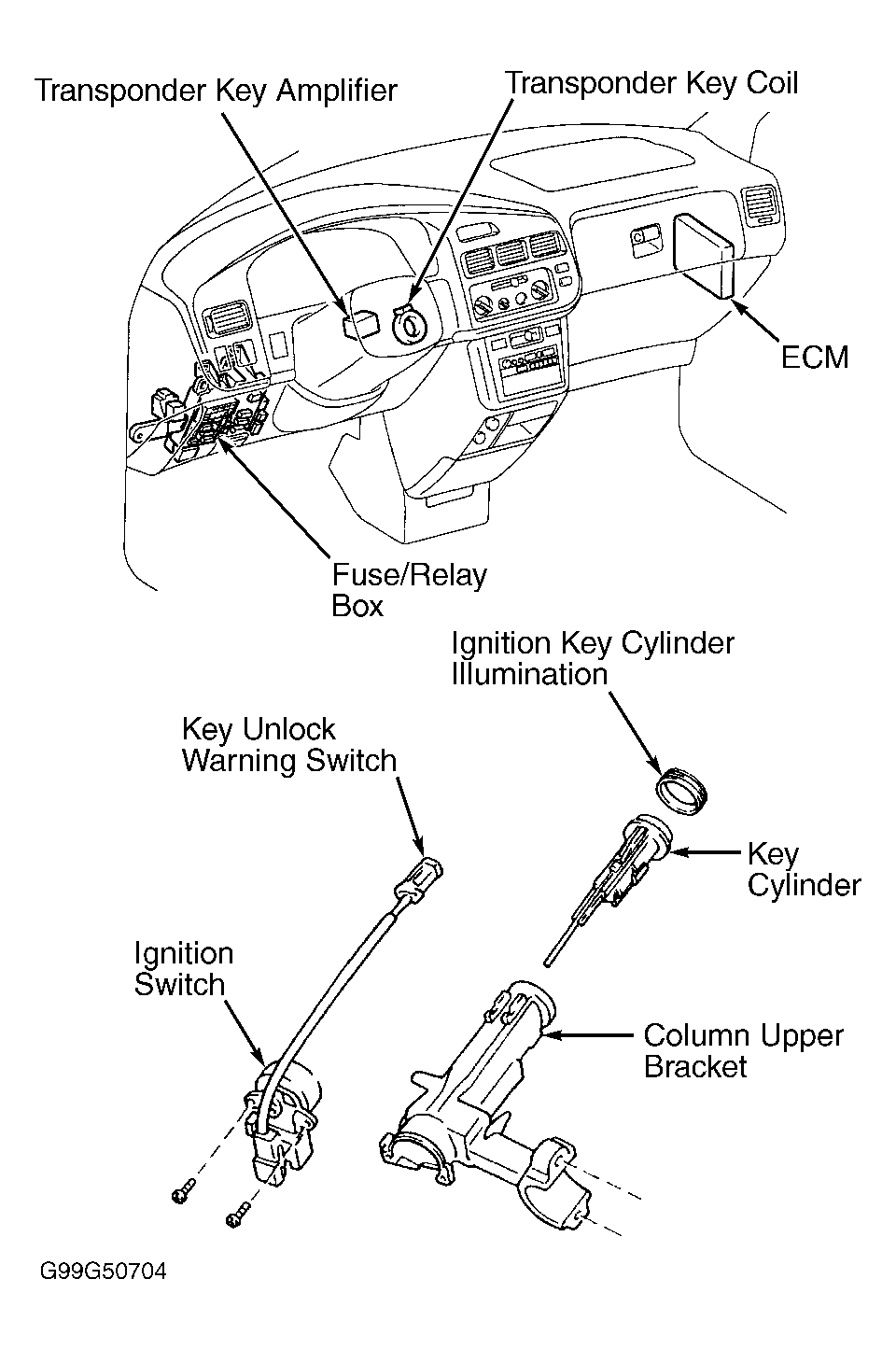

Disconnect negative battery cable. ECM is located below glove box. See Figure. Remove passenger's side door opening scuff plate and kick panel. Remove lower instrument panel covers. Disconnect electrical connectors at ECM. Remove retaining nuts and ECM.
