Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|

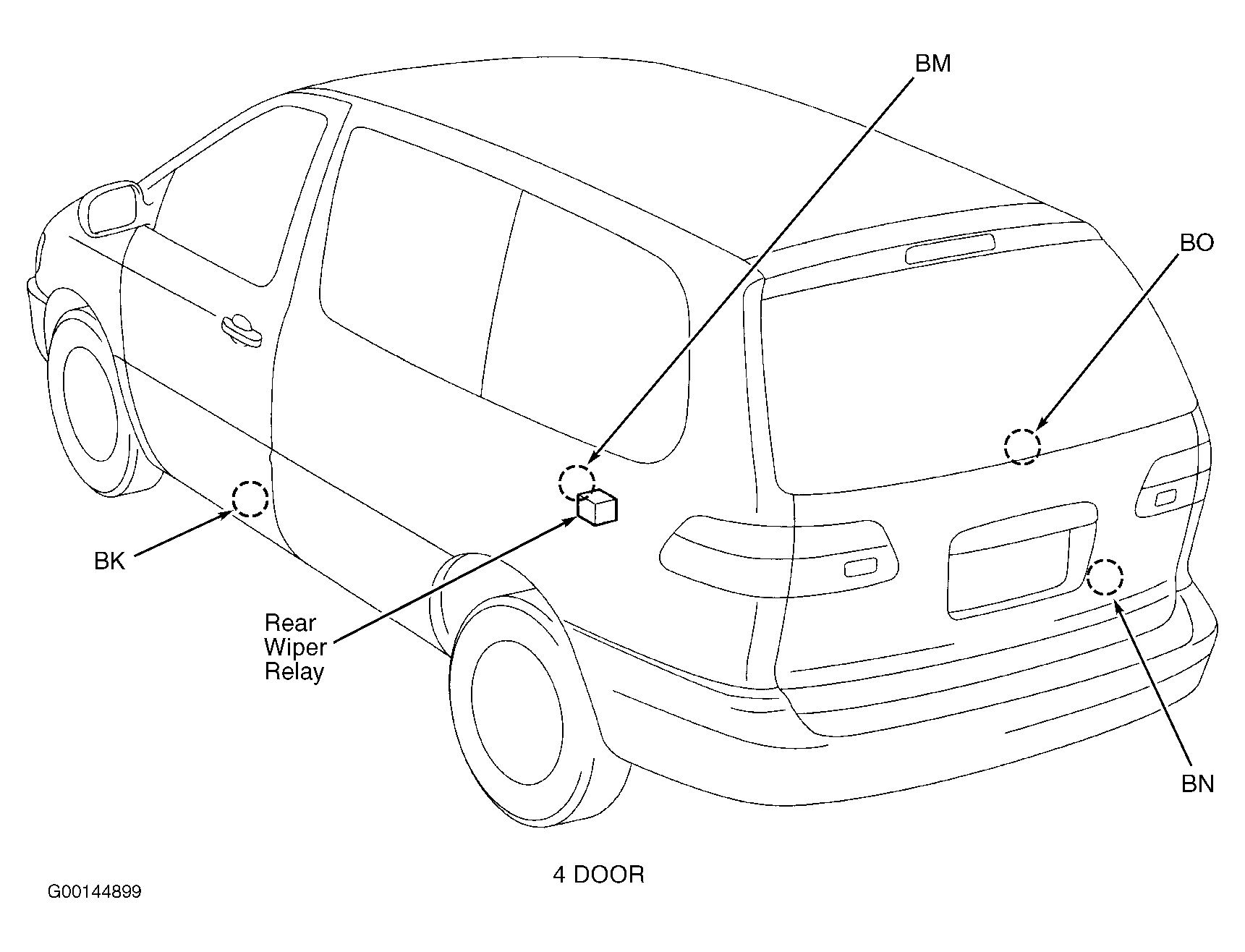

| BK (4-Door) | Under left "B" pillar. See Figure. |
| BK (5-Door) | Under left "B" pillar. See Figure. |
| BL (5-Door) | At left side of roof side panel. See Figure. |
| BM (4-Door) | At left rear quarterpanel. See Figure. |
| BM (5-Door) | At left rear quarterpanel. See Figure. |
| BN (4-Door) | At right side of tailgate. See Figure. |
| BN (5-Door) | At right side of tailgate. See Figure. |
| BO (4-Door) | At right rear quarterpanel. See Figure. |
| BO (5-Door) | At right rear quarterpanel. See Figure. |
| EA | At front of right inner fender panel. See Figure. |
| EB | At right side of intake manifold. See Figure. |
| EC | At rear of intake manifold. See Figure. |
| ED | Near left strut tower. See Figure. |
| EE | At front of left inner fender panel. See Figure. |
| IF | At left kick panel. See Figure. |
| IG | At left side of firewall. See Figure. |
| IH | At right dash brace. See Figure. |
| II | At right kick panel. See Figure. |
| IJ | At right side of firewall. See Figure. |
