Parts Location

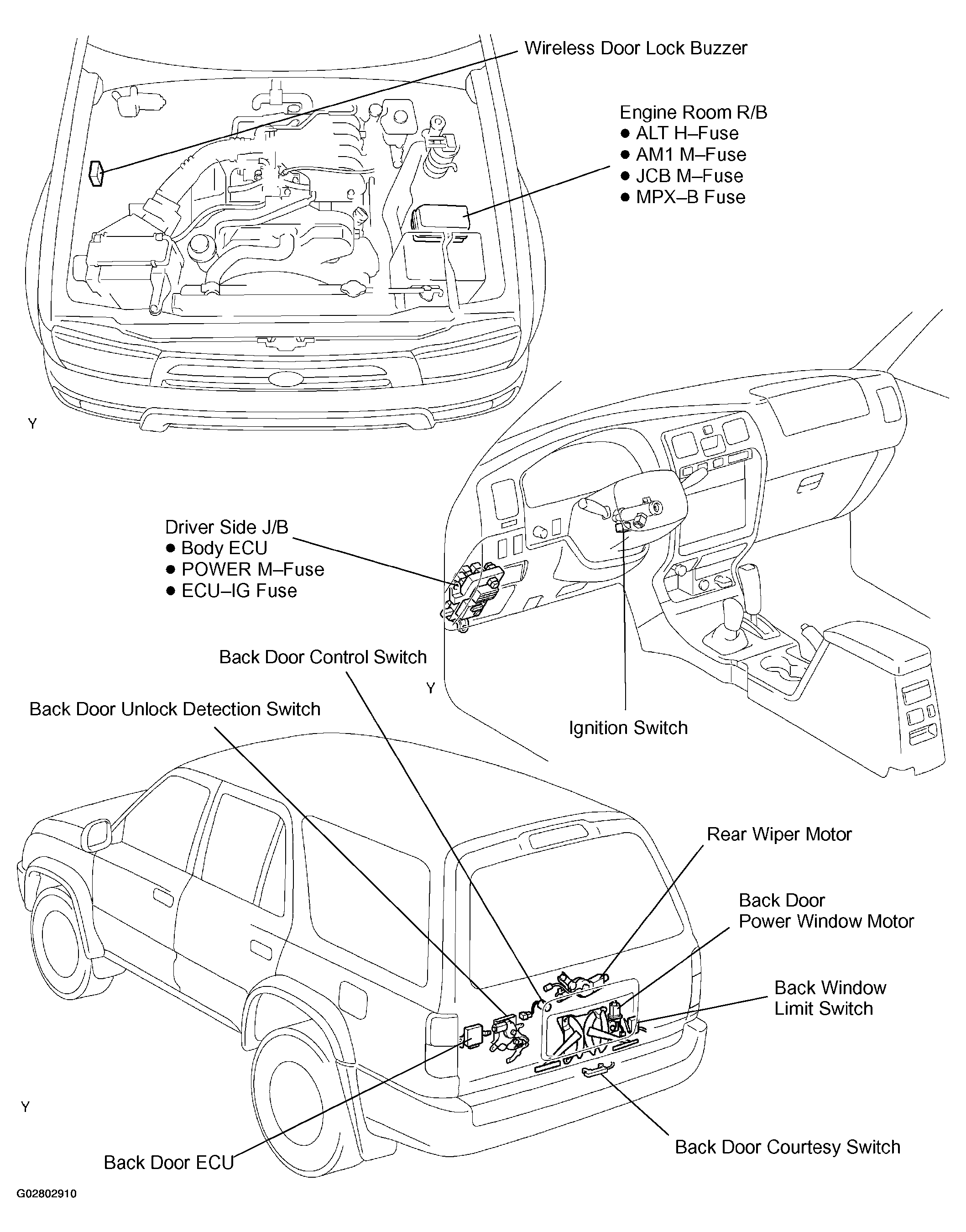

Fig 1: Identifying Back Door Control System Parts Location
G02802910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
