Testing Procedure

For wiring diagram see Figure and Figure . For testing procedure see Fig 1 and Fig 2 .

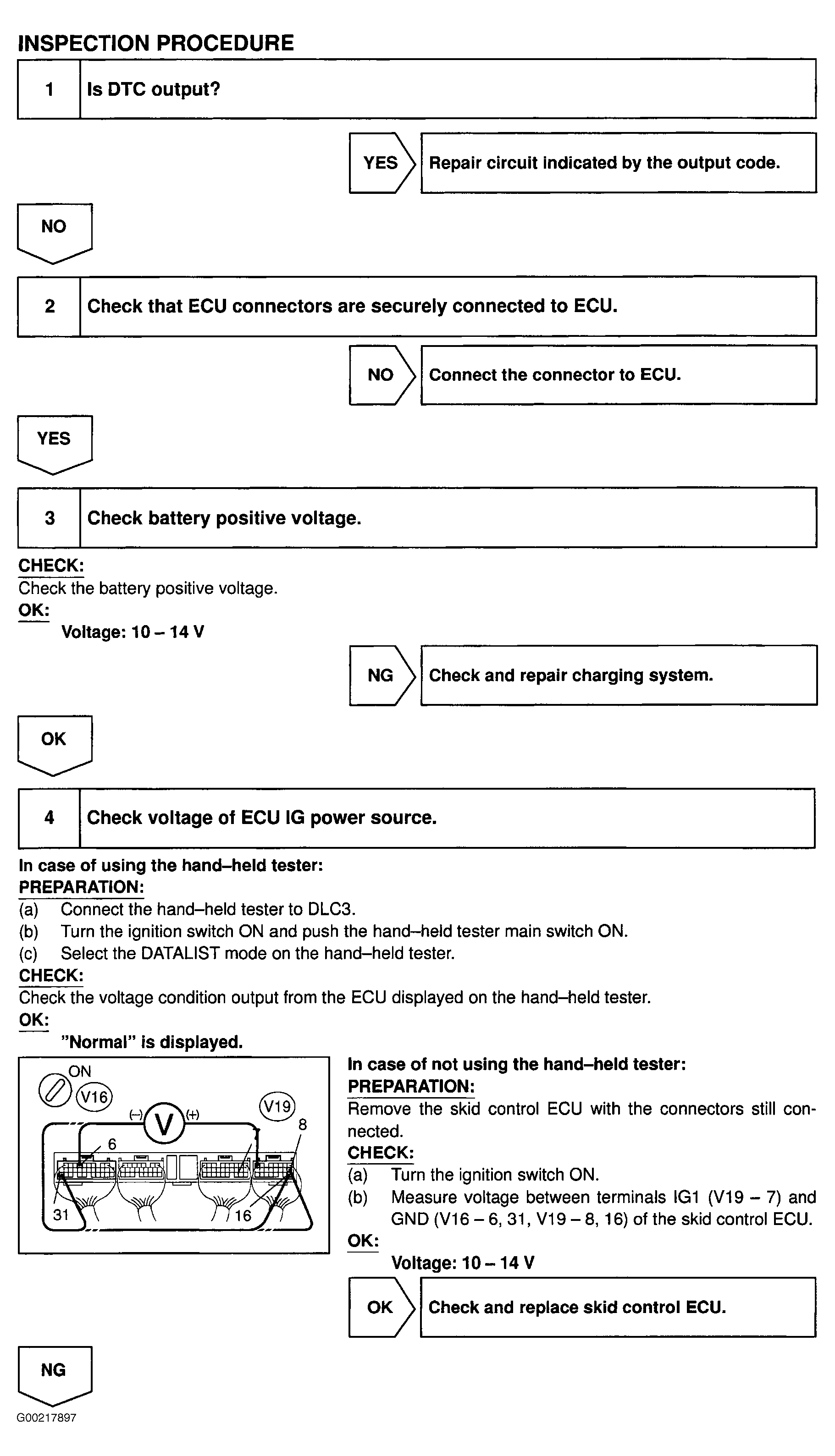

Fig 1: Testing Procedures ABS ECU Malfunction (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

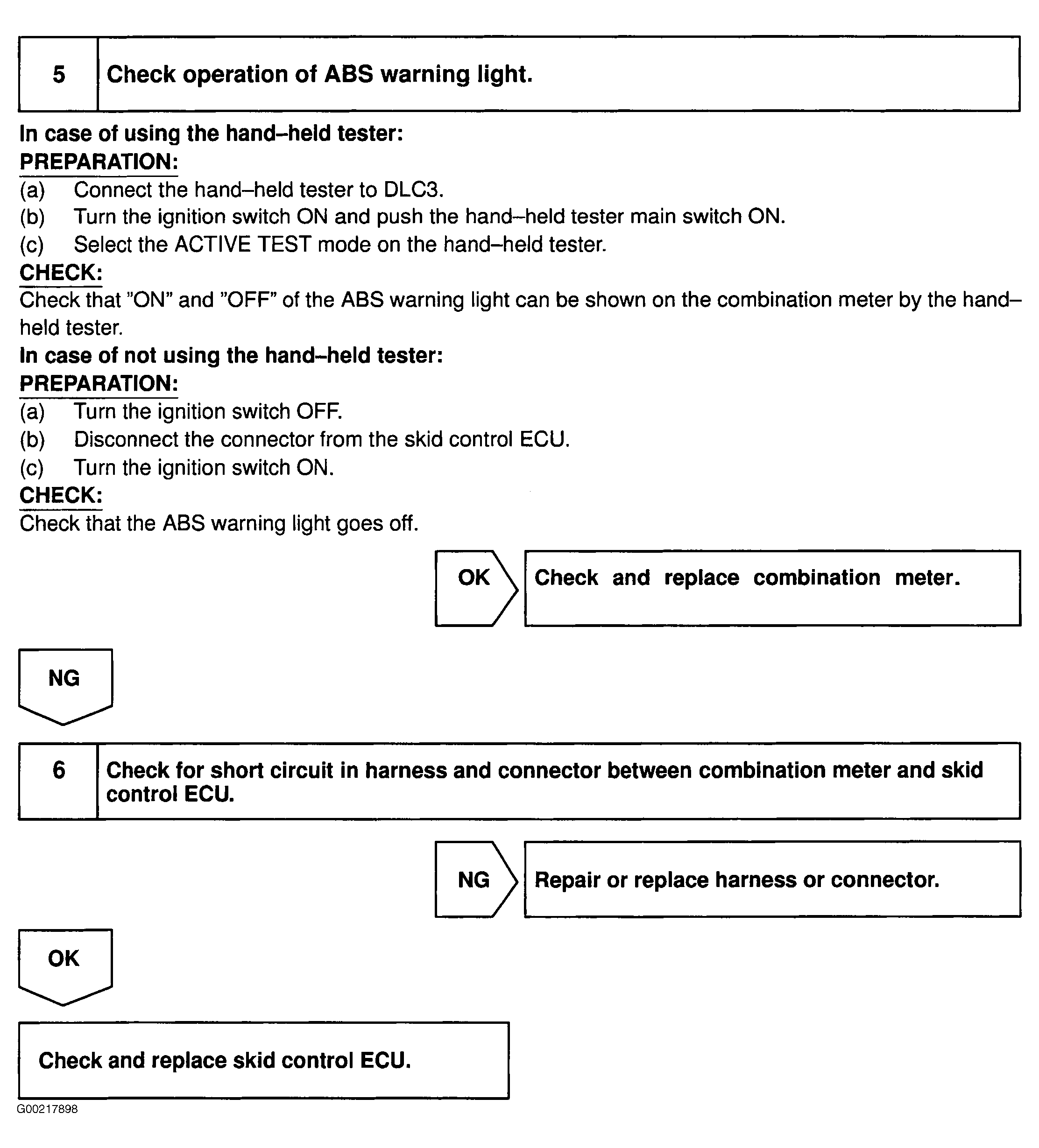

Fig 2: Testing Procedures ABS ECU Malfunction (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
