Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

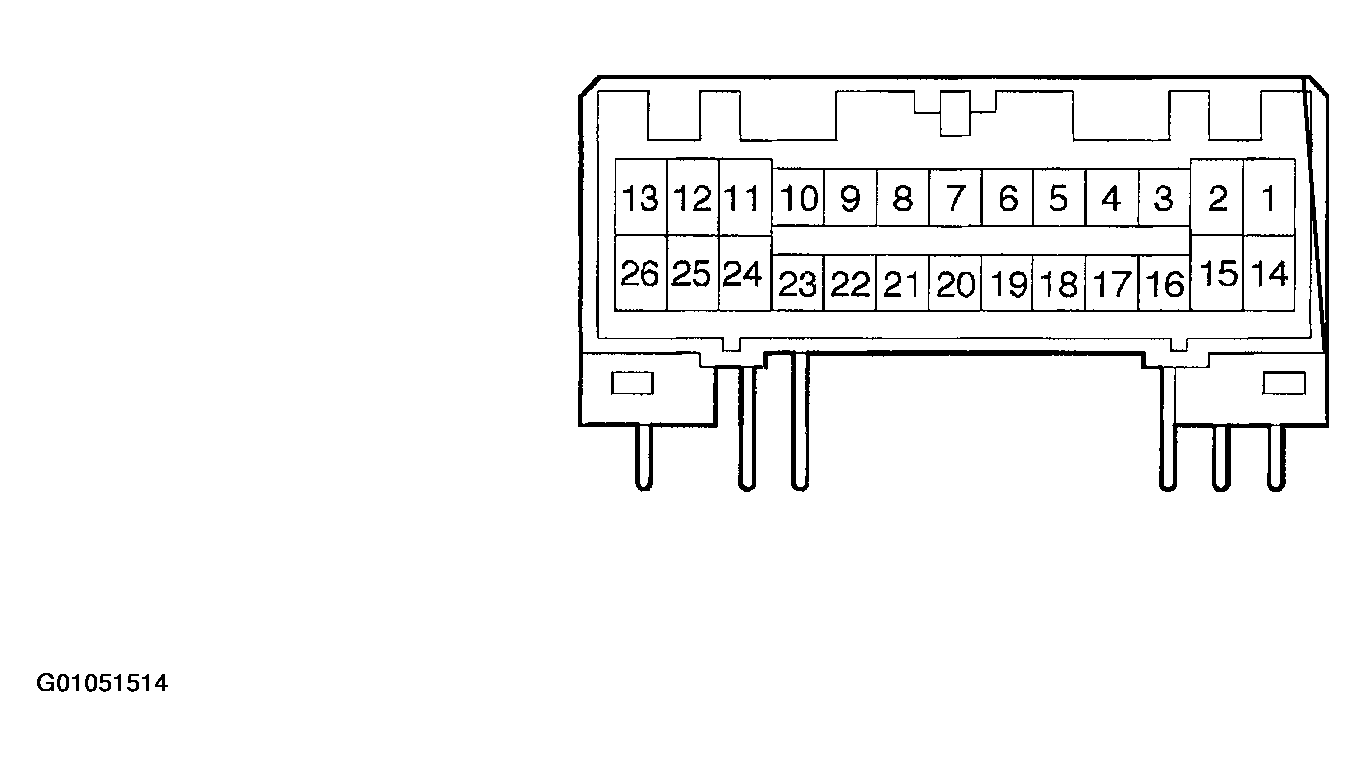

Fig 1: Identifying ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

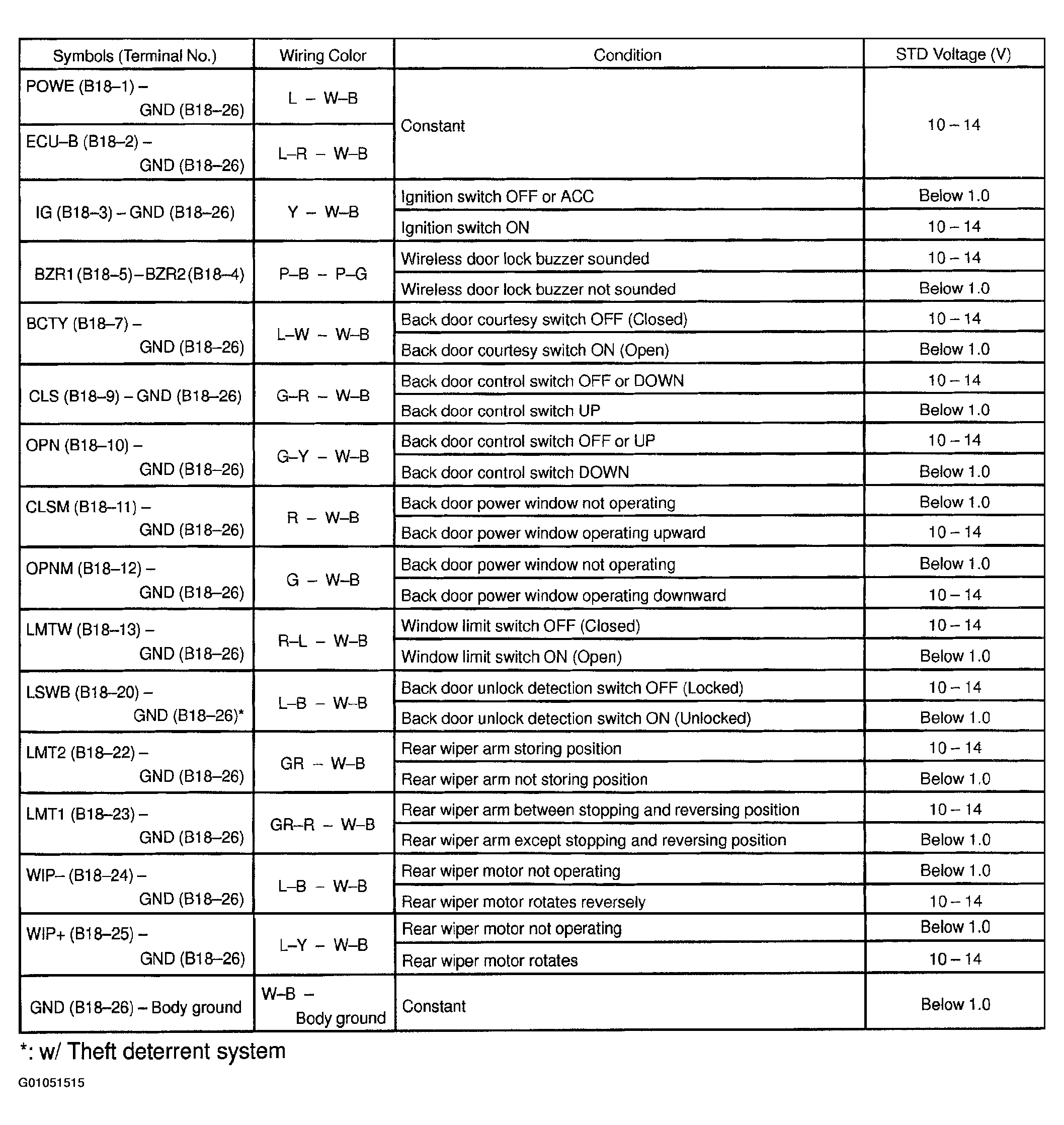

Fig 2: ECU Terminal Specifications
