Defogger System: Inspection

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT DEFOGGER TIMER OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 4.
      Fig 1: Testing Defogger Timer
      G01939324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the positive (+) lead from the battery to terminal 12 through a 3.4 W test bulb.
    3. Turn the defogger switch ON and check that the indicator light and test bulb light up for 12 for 18 minutes, then the indicator light and test bulb lights go out.

    If operation is not as specified, replace the switch.

  2. Connector disconnected:

    INSPECT DEFOGGER SWITCH CIRCUIT

    Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown in Fig 3.

    Fig 2: Identifying Defogger Switch Connector Terminals
    G01939325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

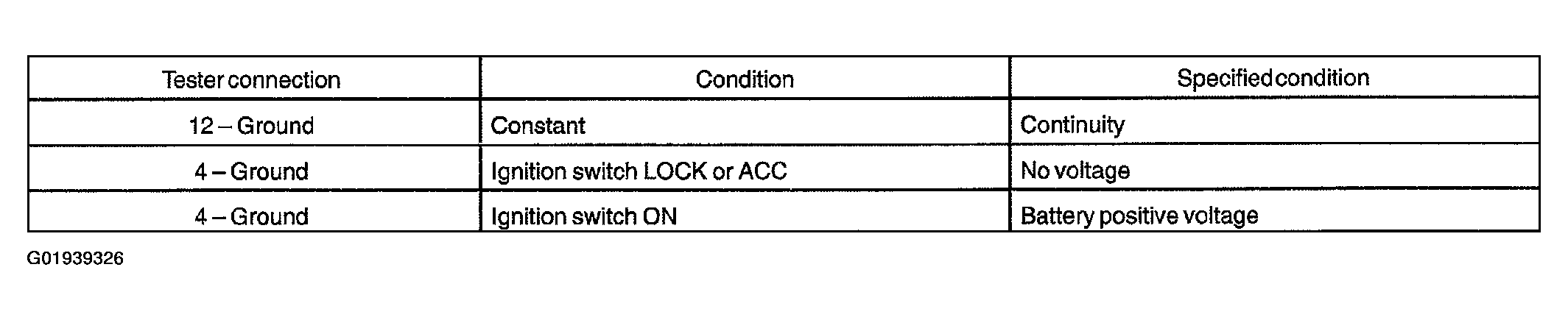

    Fig 3: Identifying Defogger Switch Test Parameters (Connector Disconnected)
    G01939326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the circuit is as specified, replace the switch.

  3. Connector connected:

    INSPECT DEFOGGER SWITCH CIRCUIT

    Connect the connector from the switch and inspect the wire harness side connector from the back side, as shown in Fig 4.

    Fig 4: Identifying Defogger Switch Test Parameters (Connector Connected)
    G01939328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the circuit is as specified, try replacing the switch with a new one.

    If the circuit is not as specified, inspect the circuit connected to other parts.

  4. INSPECT DEFOGGER RELAY CONTINUITY

    If continuity is not as specified, replace the relay.

    Fig 5: Identifying Defogger Relay Terminals
    G01939330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 6: Identifying Defogger Relay Test Parameters
    G01939329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT DEFOGGER WIRE
    NOTE:
    • When cleaning the glass, use a soft, dry cloth, and wipe the glass in the direction of the wire. Take care not to damage the wires.
    • Do not use detergents or glass cleaners with abrasive ingredients.
    • When measuring voltage, wind a piece of tin foil around the top of the negative probe and press the foil against the wire with your finger, as shown.
      Fig 7: Using Tin Foil On Negative Tester Probe
      G01939331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch ON.
    2. Turn the defogger switch ON.
    3. Inspect the voltage at the center of each heat wire, as shown.
      Fig 8: Testing Defogger Wire At Center Of Each Wire
      G01939333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 9: Identifying Defogger Wire Test Parameters
      G01939332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If there is approximately 10 V, the wire is broken between the center of the wire and the positive (+) end. If there is no voltage, the wire is broken between the center of the wire and ground.
    4. Place the voltmeter positive (+) lead against the defogger positive (+) terminal.
      Fig 10: Locating Break In Defogger Wire
      G01939334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Place the voltmeter negative (-) lead with the foil strip against the heat wire at the positive (+) terminal end and slide it toward the negative (-) terminal end.
    6. The point where the voltmeter deflects from zero to several V is the place where the heat wire is broken.
    NOTE: If the heat wire is not broken, the voltmeter indicates 0 V at the positive (+) end of the heat wire but gradually increases to about 12 V as the meter probe is moved to the other end.
  6. IF NECESSARY, REPAIR DEFOGGER WIRE
    1. Clean the broken wire tips with grease, wax and silicone remover.
    2. Place the masking tape along both sides of the wire to be repaired.
      Fig 11: Using Masking Tape To Prepare Wire For Repair
      G01939335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent).
    4. Using a fine top brush, apply a small amount to the wire.
      Fig 12: Applying Paste To Break In Wire
      G01939336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. After a few minutes, remove the masking tape.
    6. Do not repair the defogger wire for at least 24 hours.
