Section 460 (Engine Cooling System): Radiator: Components

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

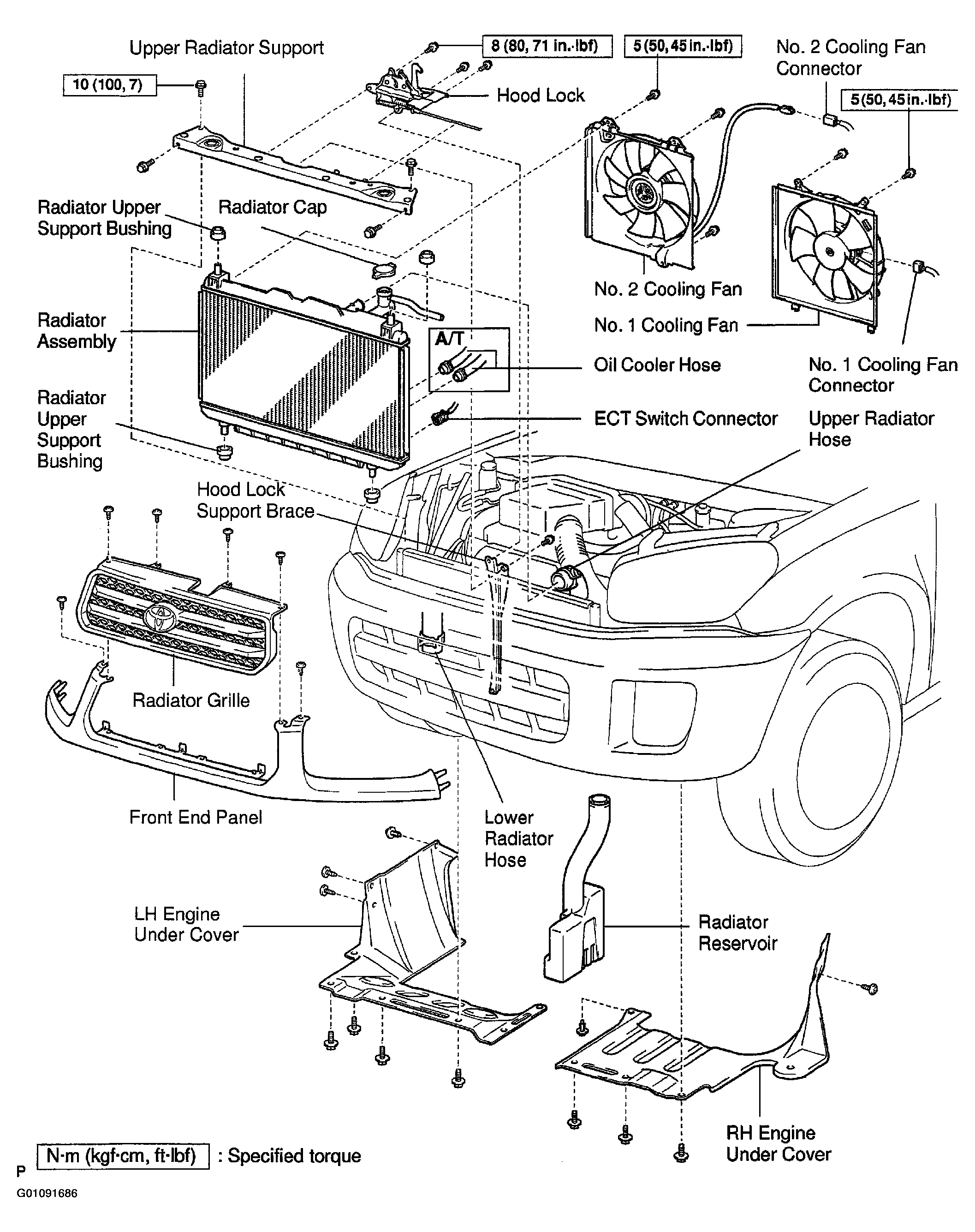

Fig 1: Identifying Components For Radiator Removal
G01091686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

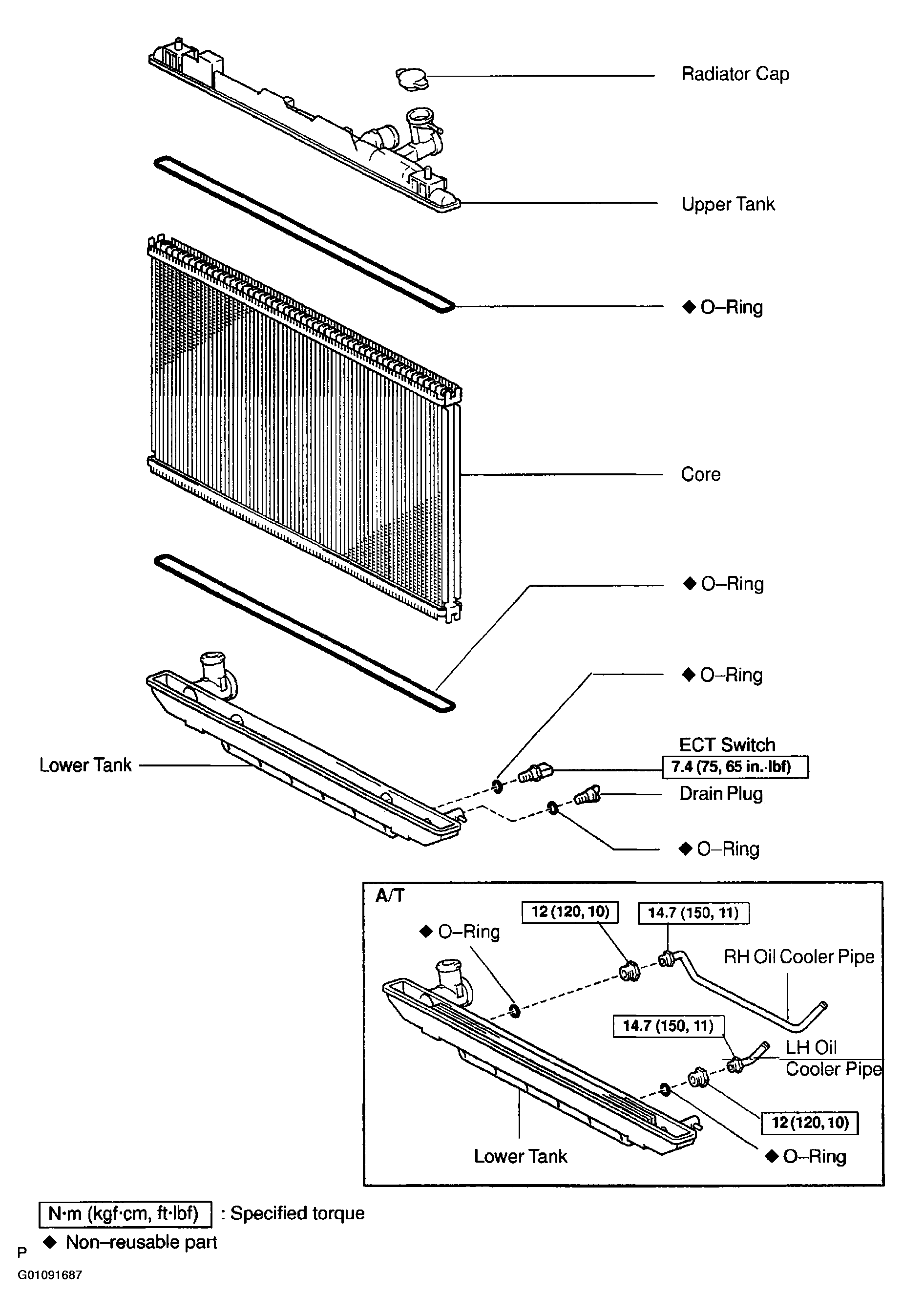

Fig 2: Exploded View Of Radiator
G01091687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
