Front Brake Speed Sensor: Components

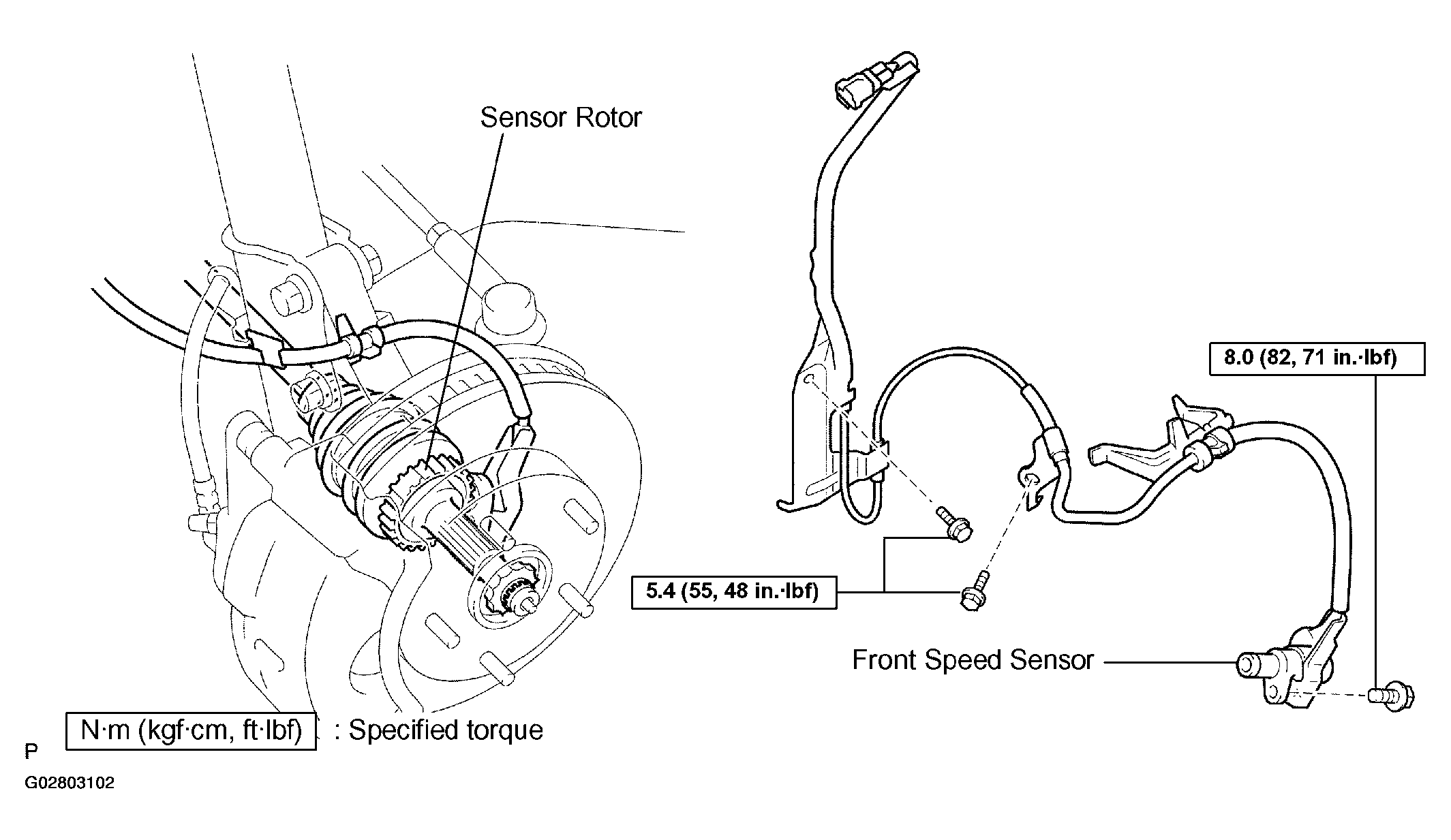

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
G02803102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
