Entering Remote Transmitter Program Mode

Door control transmitter program function has 4 different modes. ADD mode allows addition of new transmitters while retaining previously registered transmitters (up to 4 maximum). REWRITE mode is used to erase all previous remote transmitters in case door control receiver is replaced or when exchanging remote transmitters. CONFIRMATION mode is used to check the number of remote transmitters registered for this vehicle and should be checked before adding any new transmitters. PROHIBITION mode is used to cancel remote transmitter operation when all remote transmitters become lost or damaged.

To start the process, ignition key must be inserted in ignition lock cylinder. Driver's door must be opened and all other doors must be closed. Driver's door must be unlocked.

1. Insert and remove ignition key from lock cylinder 2 times within 5 seconds.
2. Close and open driver's door 2 times within 40 seconds.
3. Insert and remove ignition key from lock cylinder.
4. Close and open driver's door 2 times within 40 seconds.
5. Insert ignition key in lock cylinder and close door.
6. Turn ignition key from LOCK to ON position at about one second intervals, one time to select ADD mode, 2 times to select REWRITE mode, 3 times to select CONFIRMATION mode and 5 times to select PROHIBITION mode.

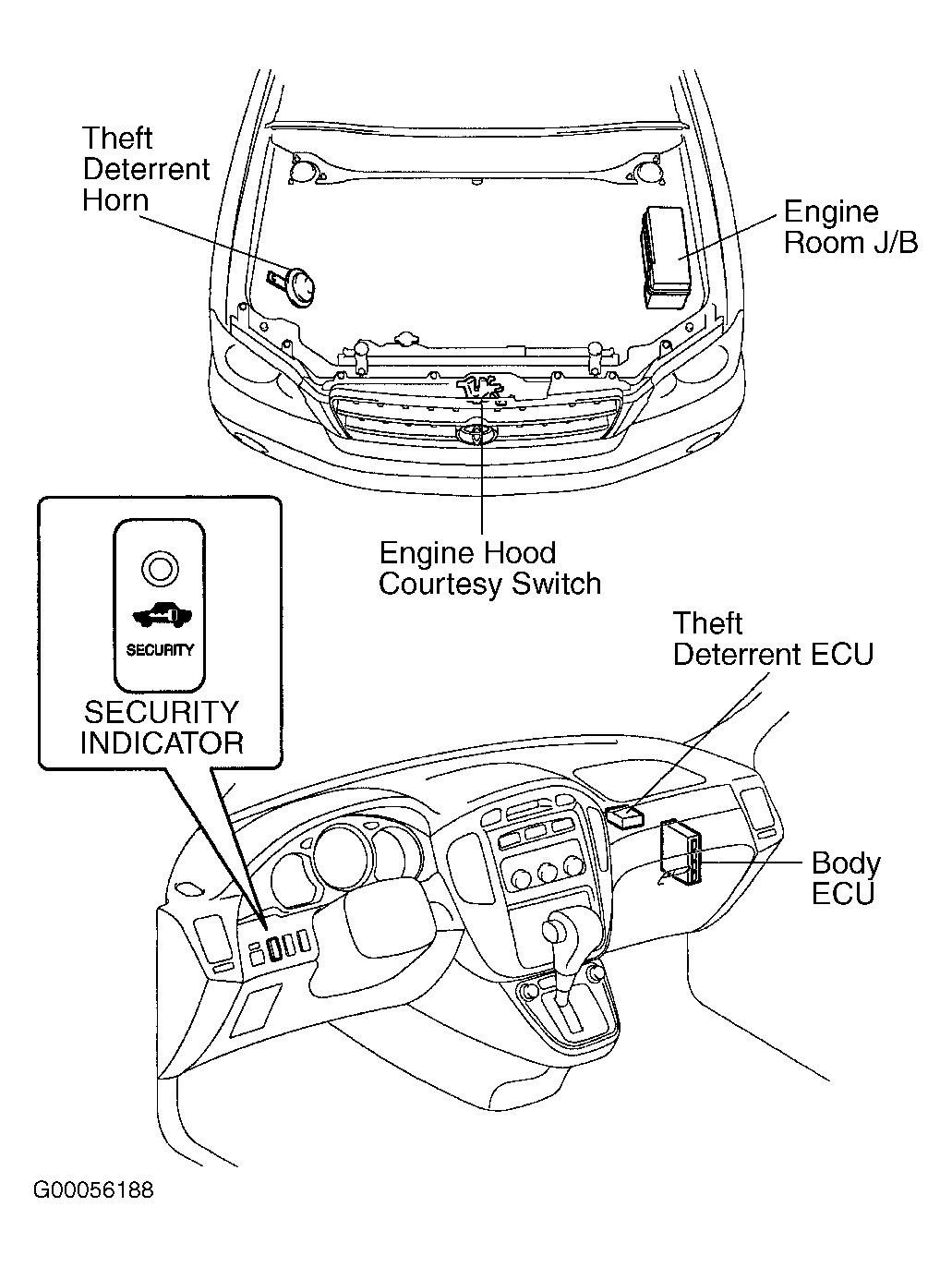

Multiplex body ECU will automatically lock and unlock door actuators one to 5 times within 3 seconds to inform operator of selected mode. See Figure. If number of registered transmitters is zero, multiplex body ECU will automatically lock and unlock door actuators 5 times.
