How To Proceed With Troubleshooting

NOTE: This ECU is connected to the multiplex communication system. Therefore, be sure to check that there is no troubles in the multiplex communication system before performing the troubleshooting.

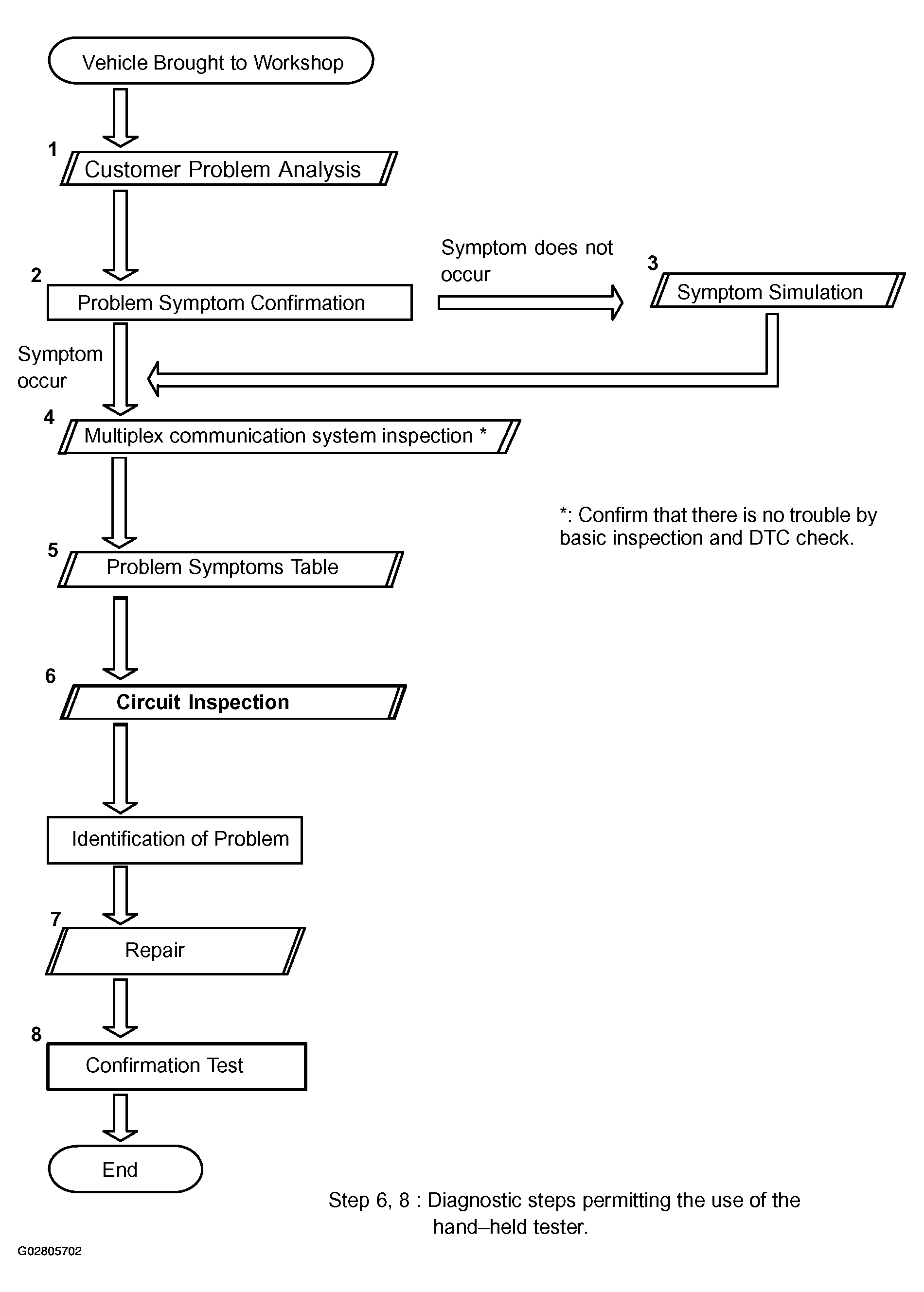

Fig 1: Troubleshooting Flow Chart
G02805702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
