Diagnostic Trouble Code Chart

TERMS MEANING

Terms	Meaning
Physical address	Three-digit code (shown in hexadecimal) which is given to each component comprising the AVC - LAN Corresponding to the function, individual symbols are specified..
Logical address	Two-digit code (shown in hexadecimal) which is given to each function comprising the inner system of the AVC - LAN.

Physical address: 110 Multi display

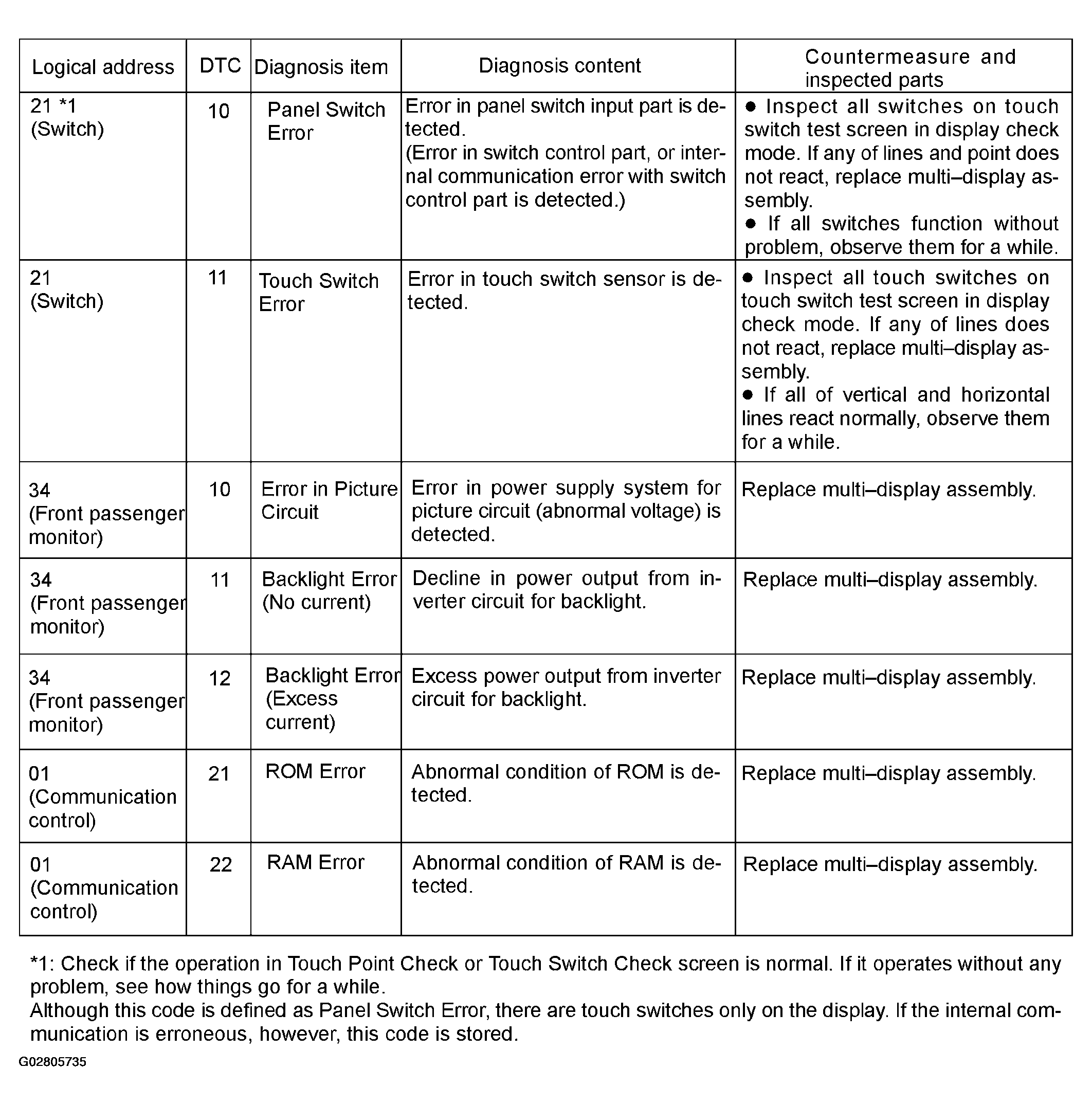

Fig 1: Diagnostic Trouble Code Chart Physical Address: 110 Multi Display (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

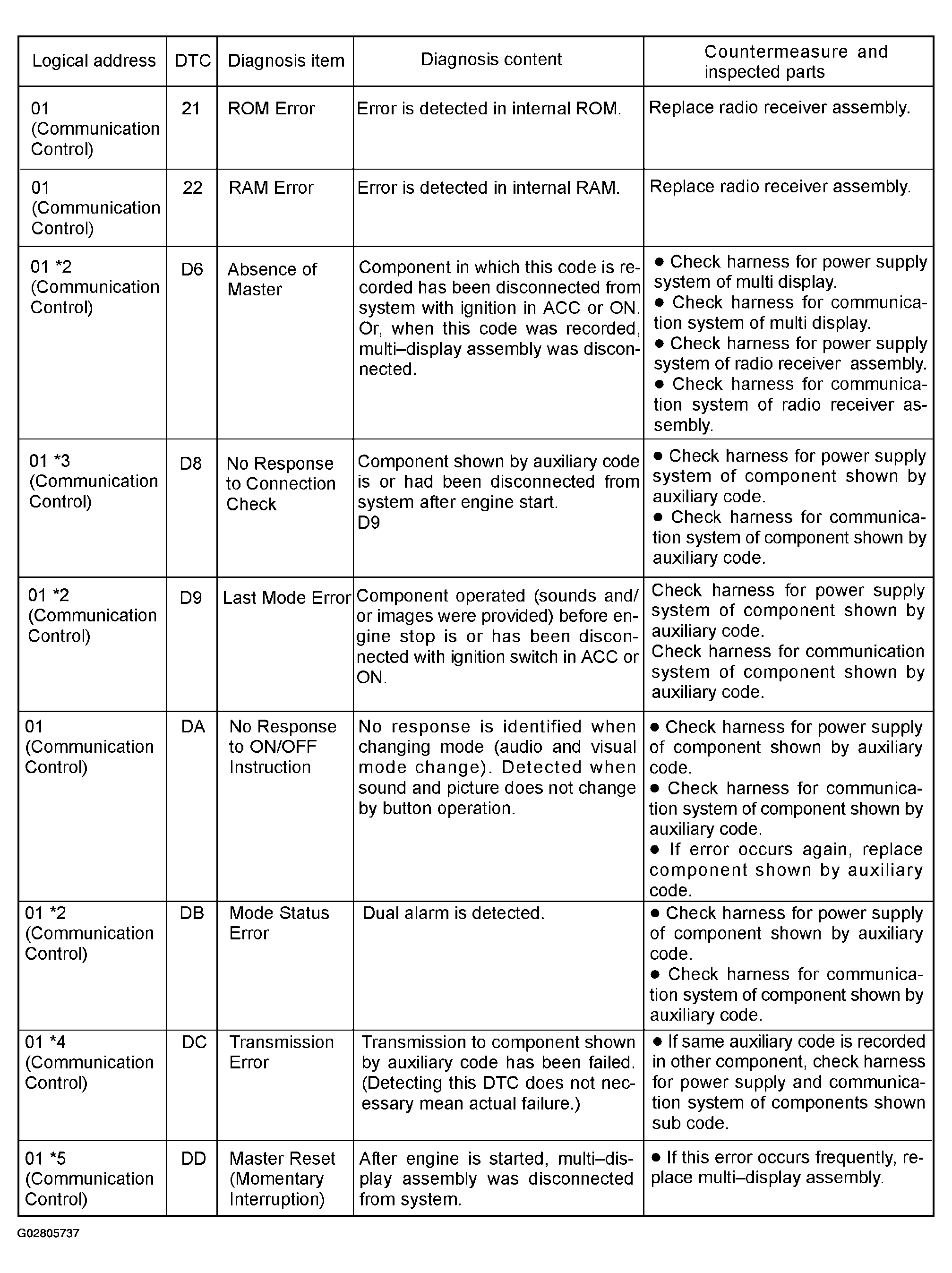

Fig 2: Diagnostic Trouble Code Chart Physical Address: 110 Multi Display (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Physical address: 190 Radio receiver assembly

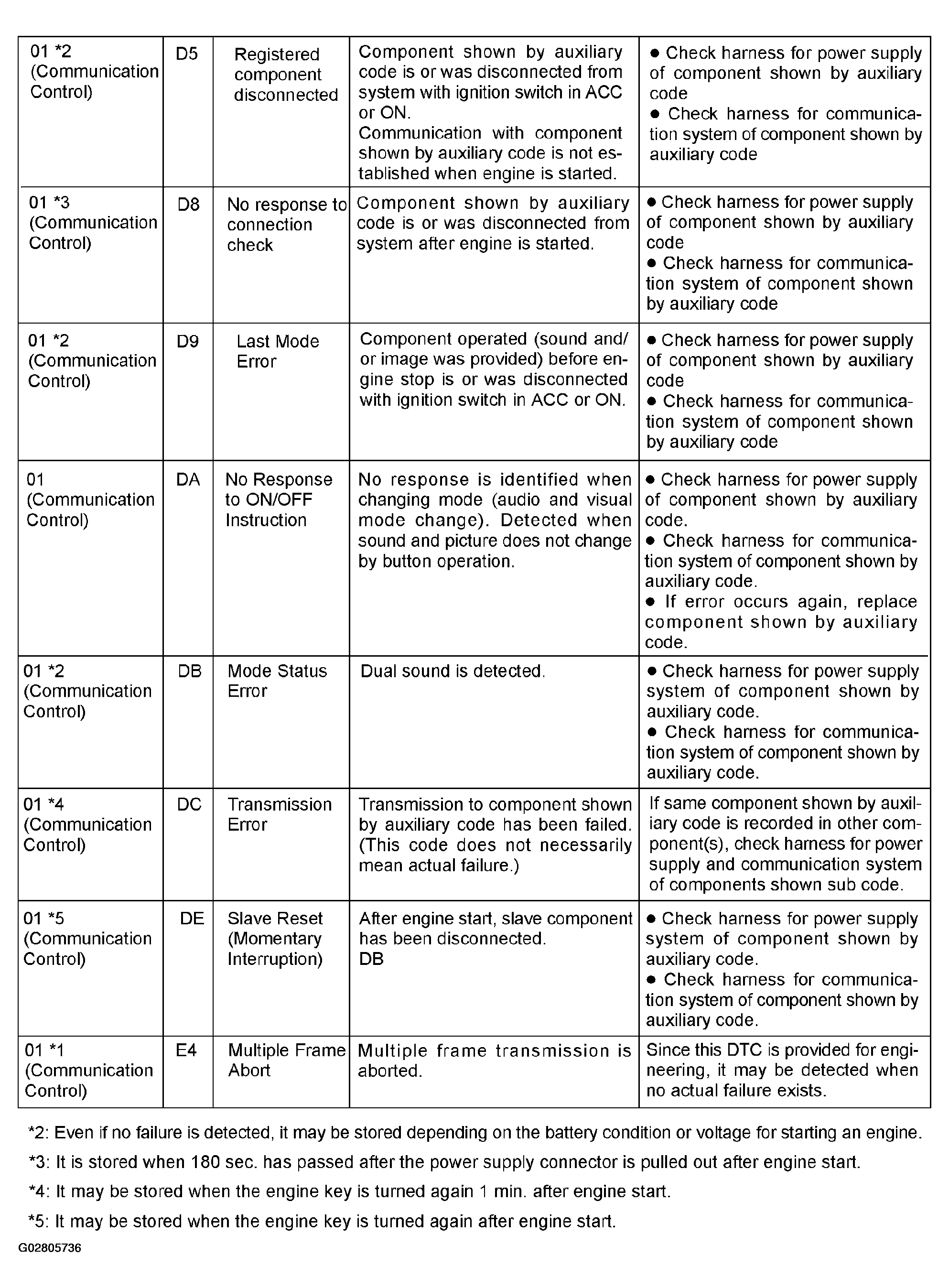

Fig 3: Diagnostic Trouble Code Chart Physical Address: 190 Radio Receiver Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

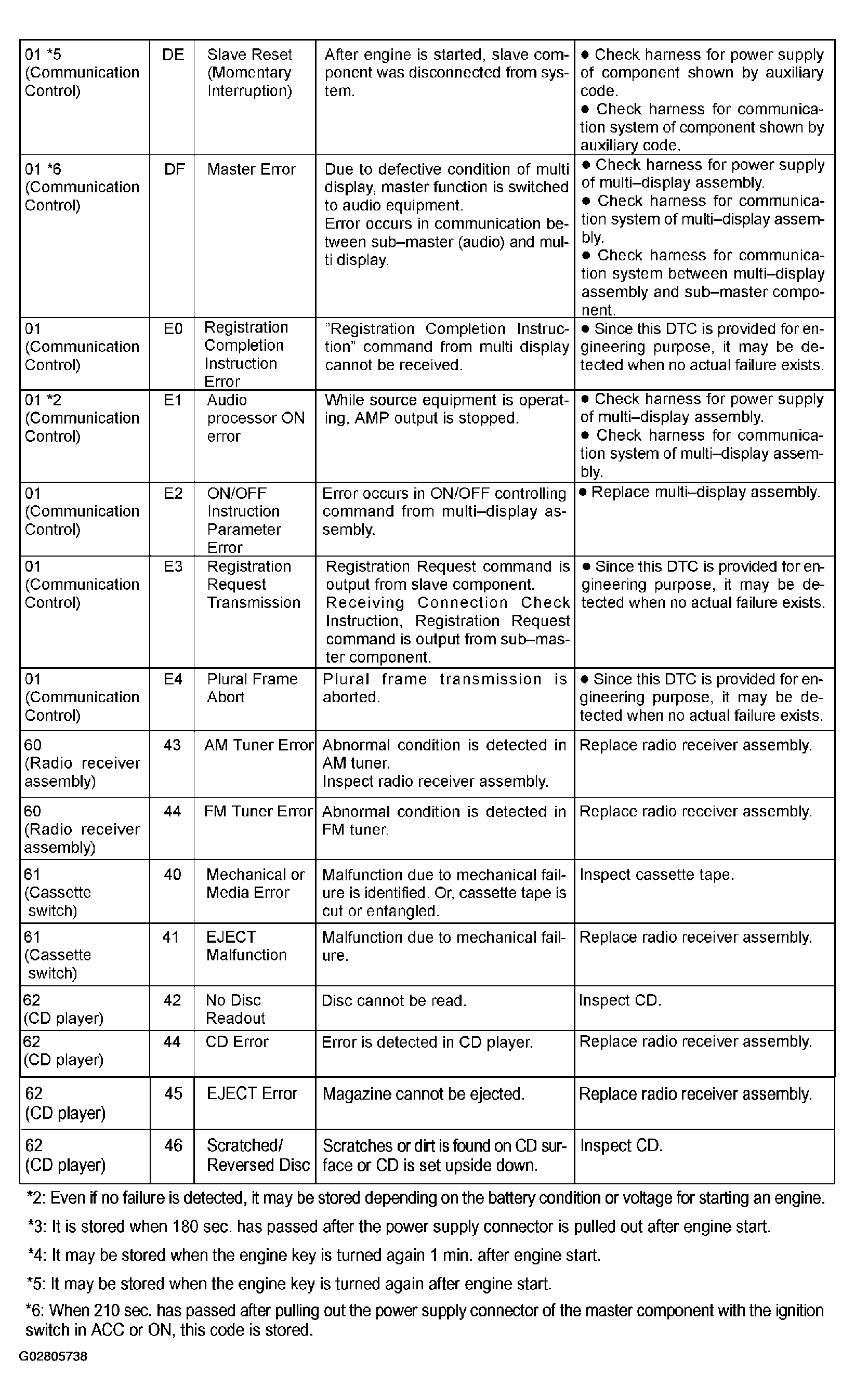

Fig 4: Diagnostic Trouble Code Chart Physical Address: 190 Radio Receiver Assembly (2 Of 2)

Physical address: 178 Navigation ECU

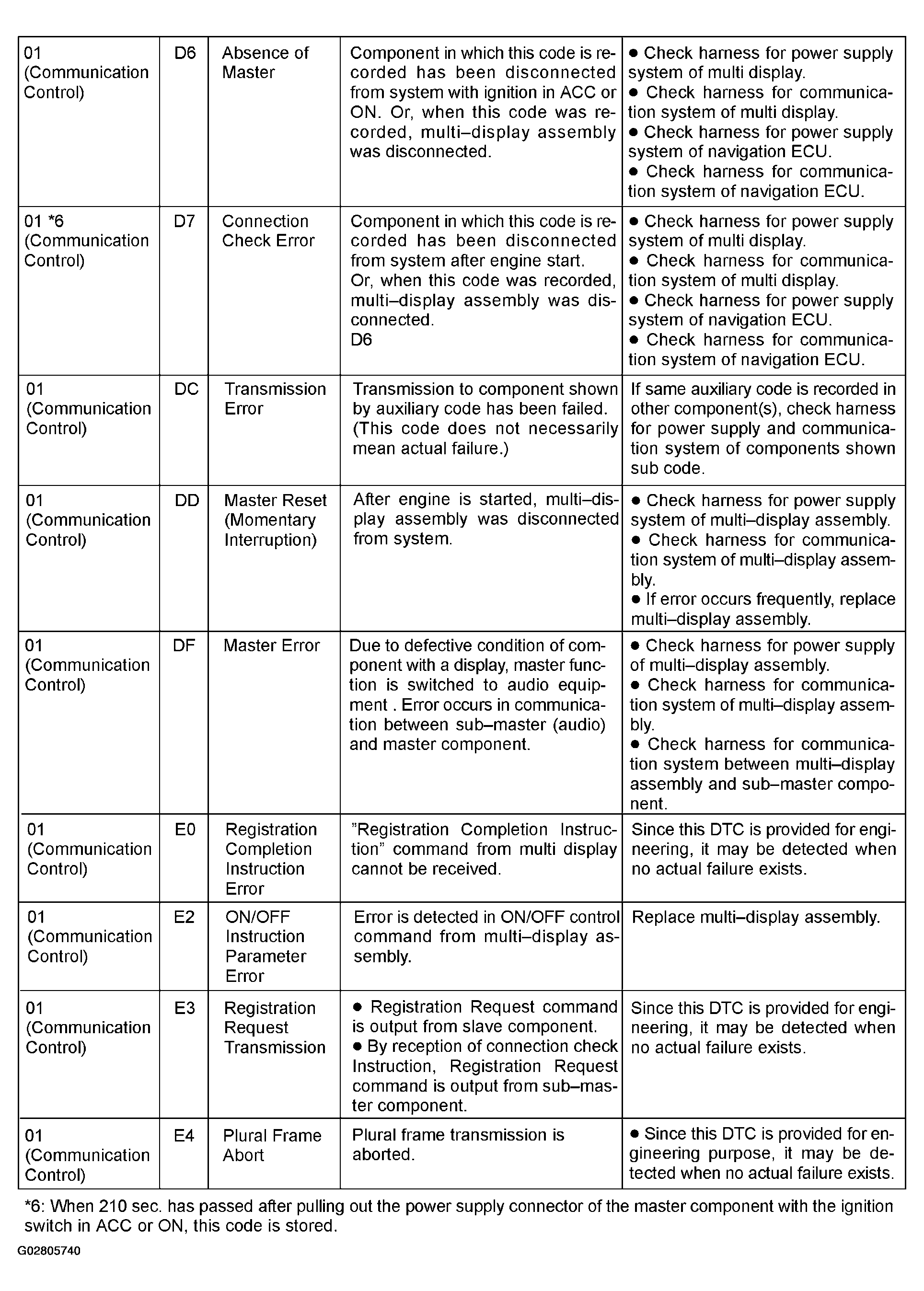

Fig 5: Diagnostic Trouble Code Chart Physical Address: 178 Navigation ECU (1 Of 2)

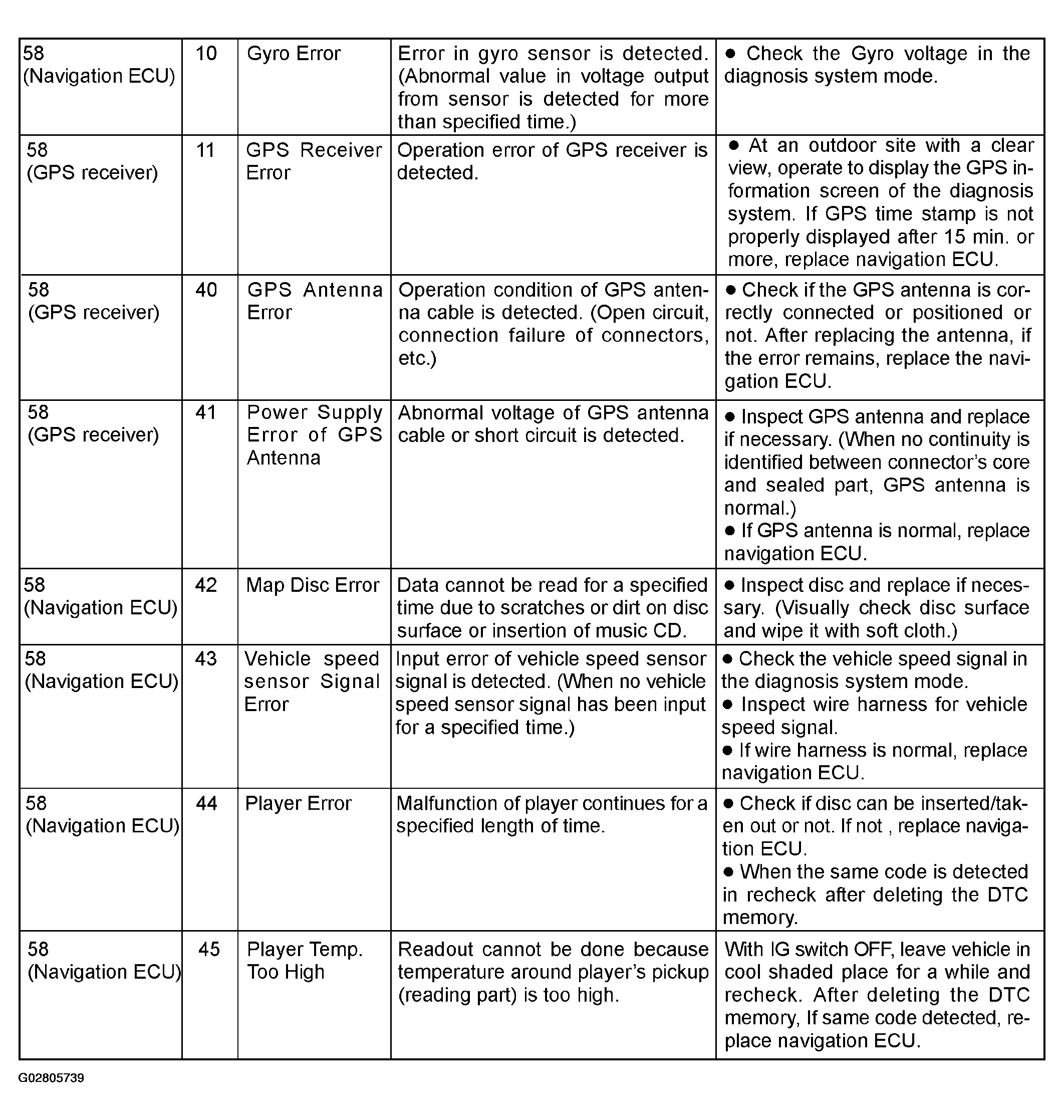

Fig 6: Diagnostic Trouble Code Chart Physical Address: 178 Navigation ECU (2 Of 2)
