How To Proceed With Troubleshooting

NOTE: The ECU of this system is connected to the multiplex communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the multiplex communication system.

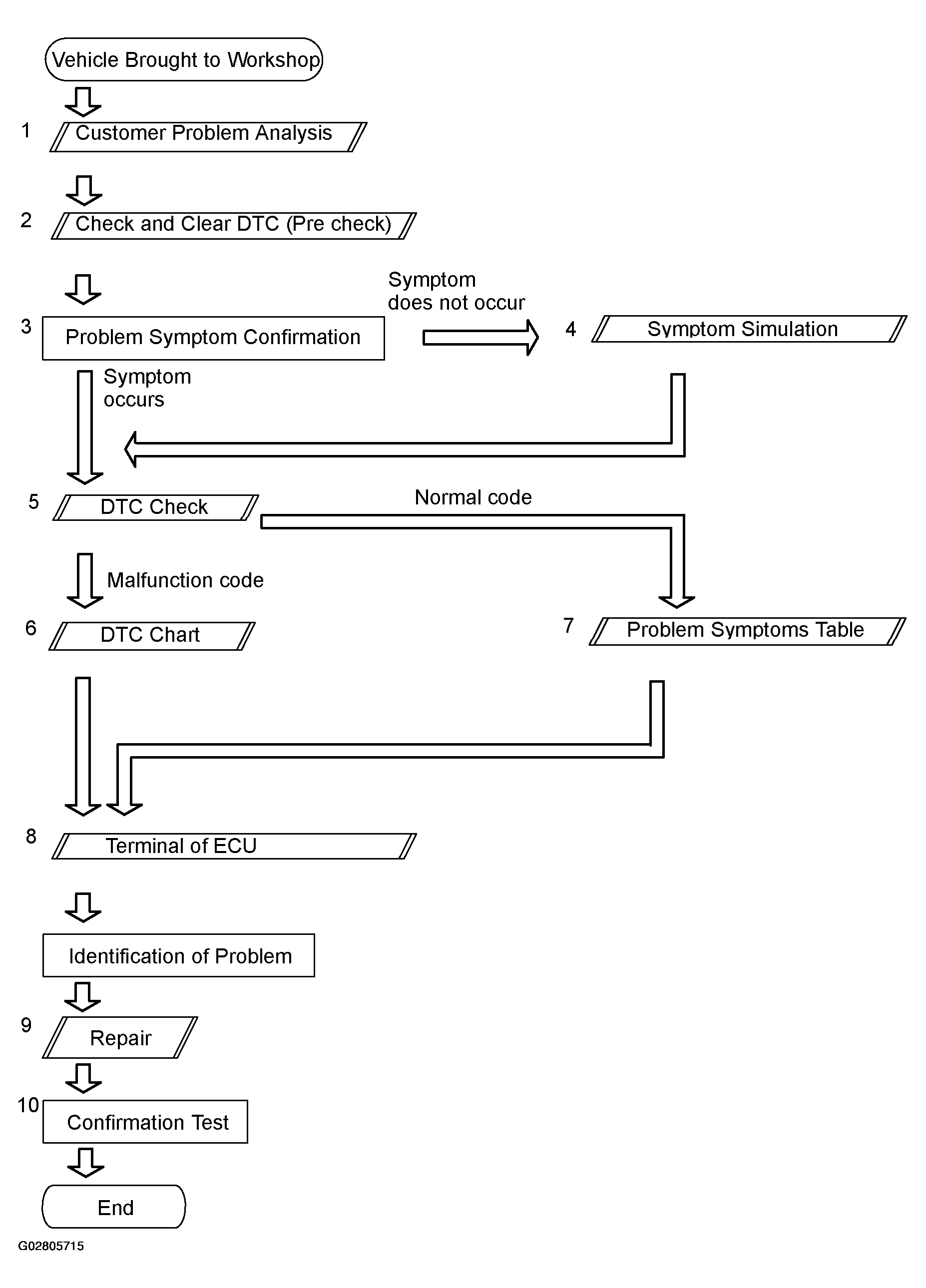

Fig 1: Navigation System Troubleshooting Chart
G02805715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
