Radiator And CONDENSOR Module: Components

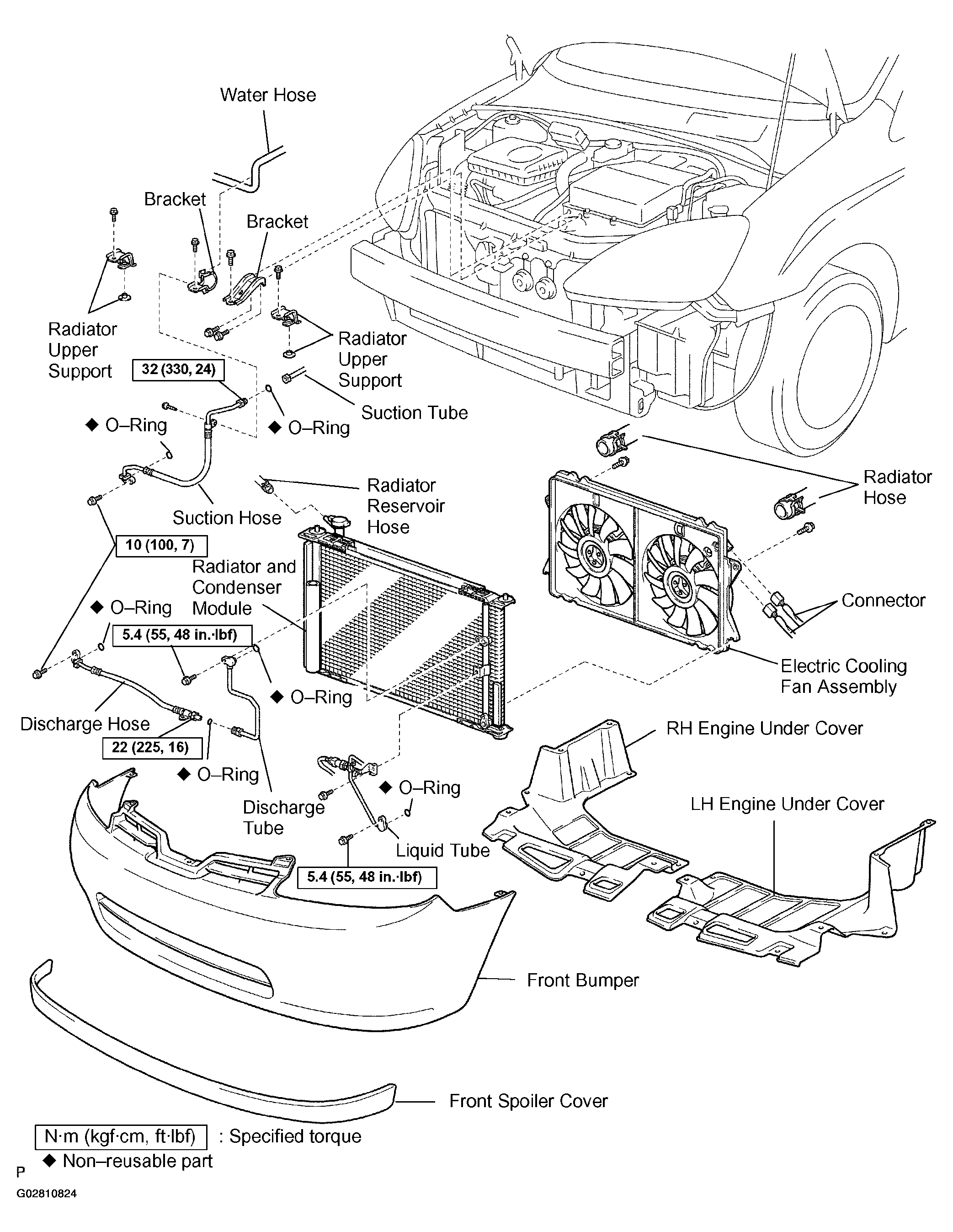

Fig 1: Identifying Components For Radiator & Condenser Module Removal
G02810824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
