Engine Unit (Removal & Installation): Components

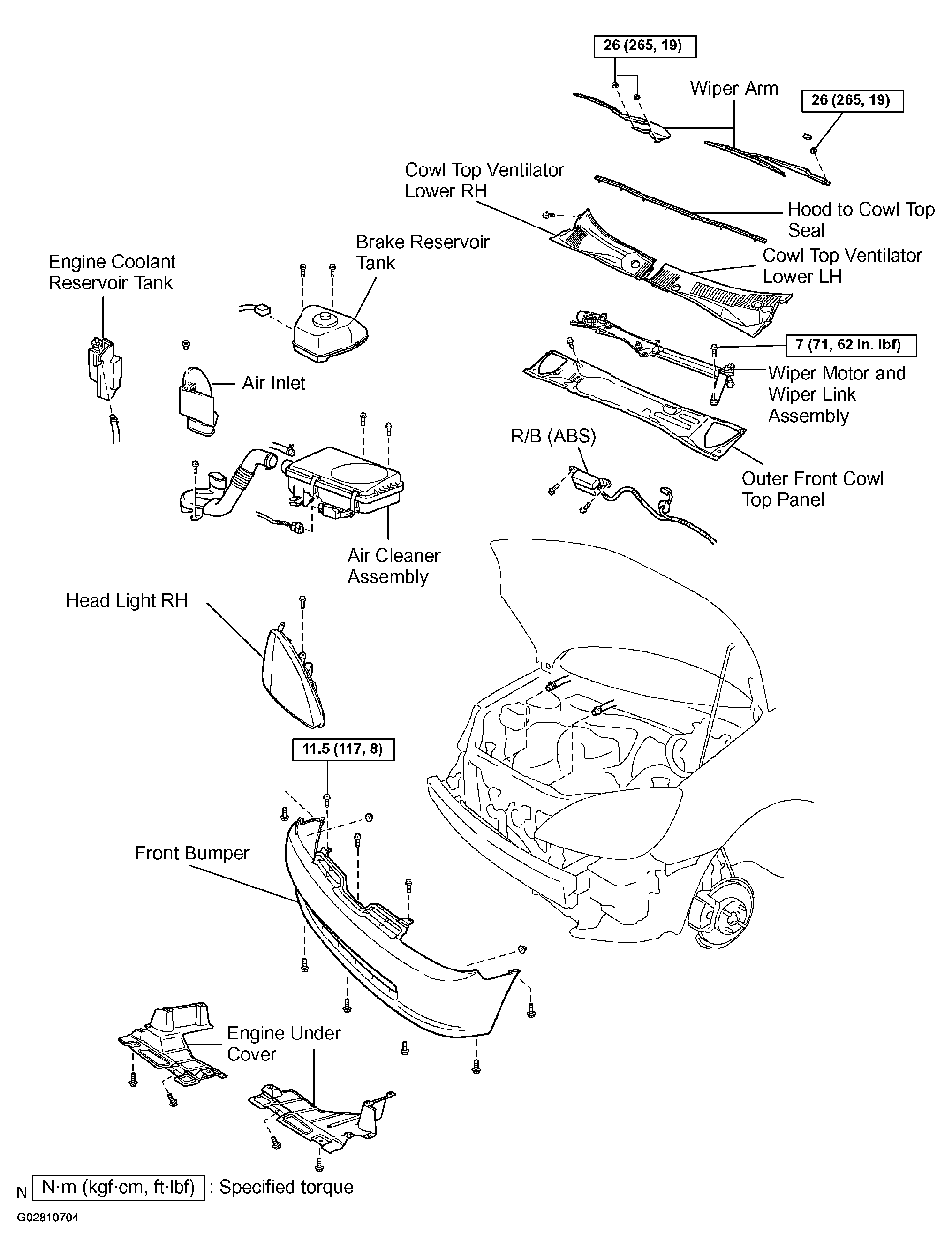

Fig 1: Identifying Components For Engine Removal (1 Of 2)
G02810704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

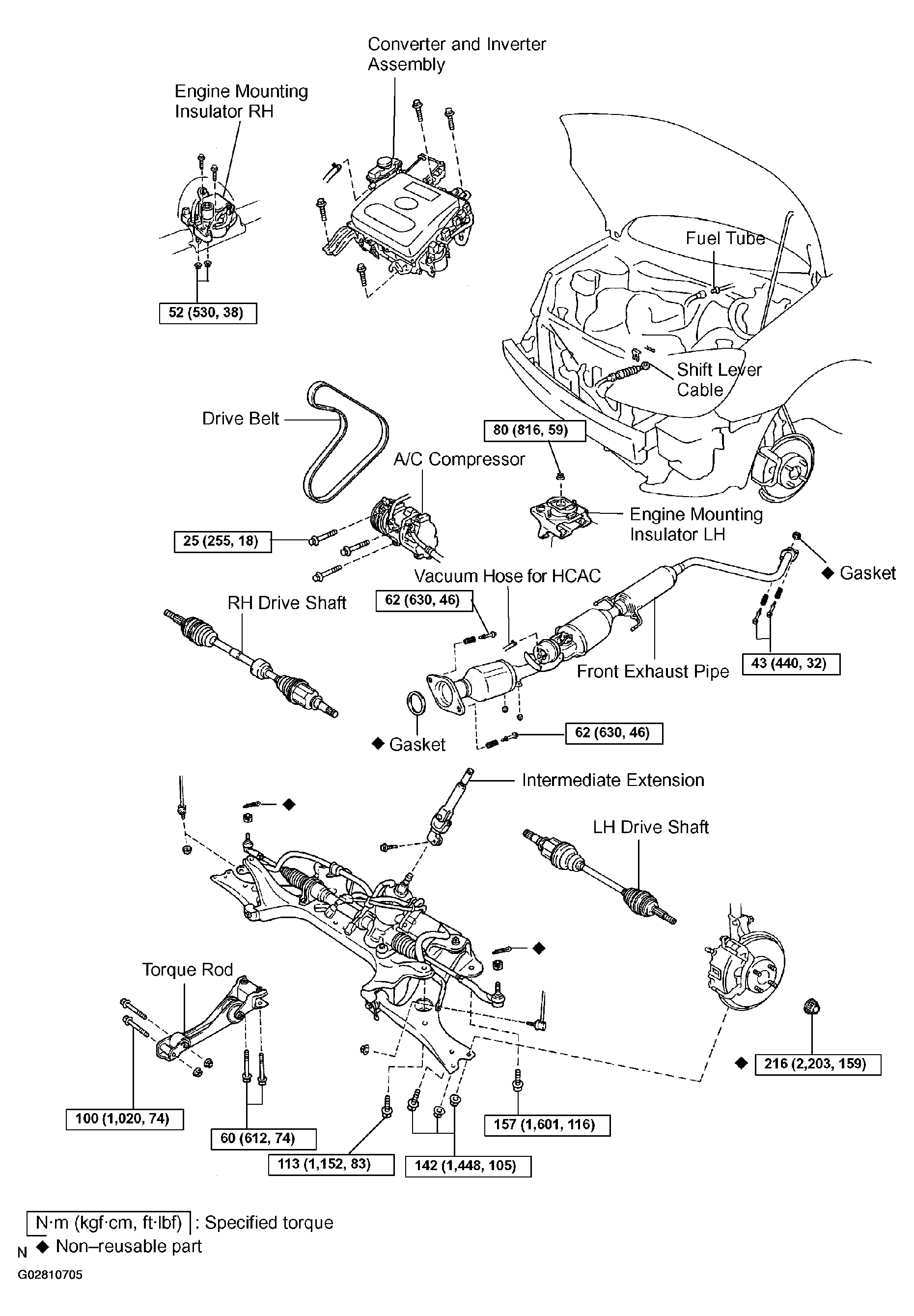

Fig 2: Identifying Components For Engine Removal (2 Of 2)
G02810705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

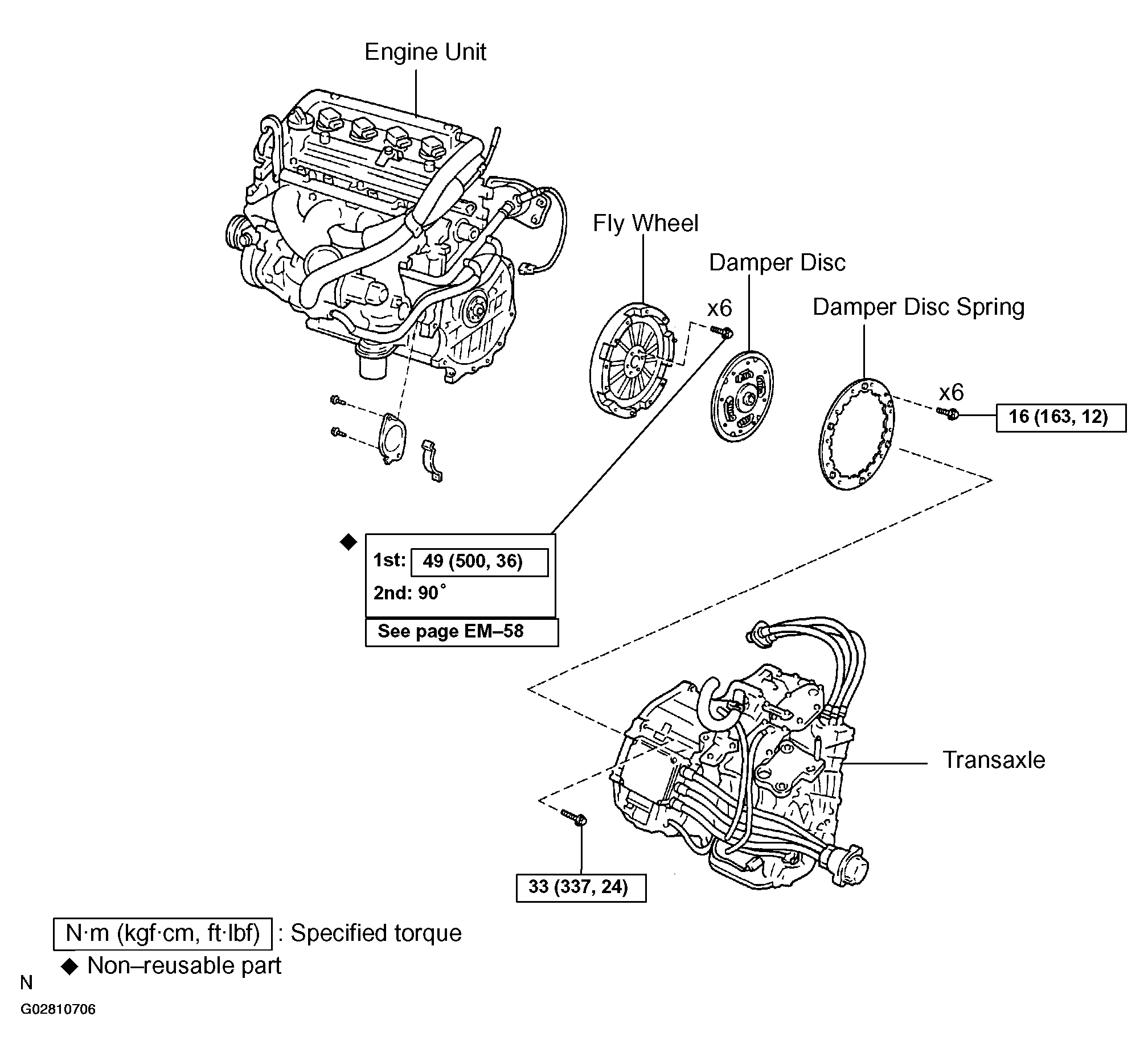

Fig 3: Exploded View Of Engine & Drivetrain
G02810706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
