Diagnostic Trouble Code Chart

NOTE:

Using SST 09843-18040, connect the terminals Tc and CG of the DLC3.
If any abnormalities are not found when inspecting the parts, inspect the ECU.
If a malfunction code is displayed during the DTC check, check the circuit listed in the code. For details of each code, refer to the "See page" under the respective "DTC No." in the following DTC chart.

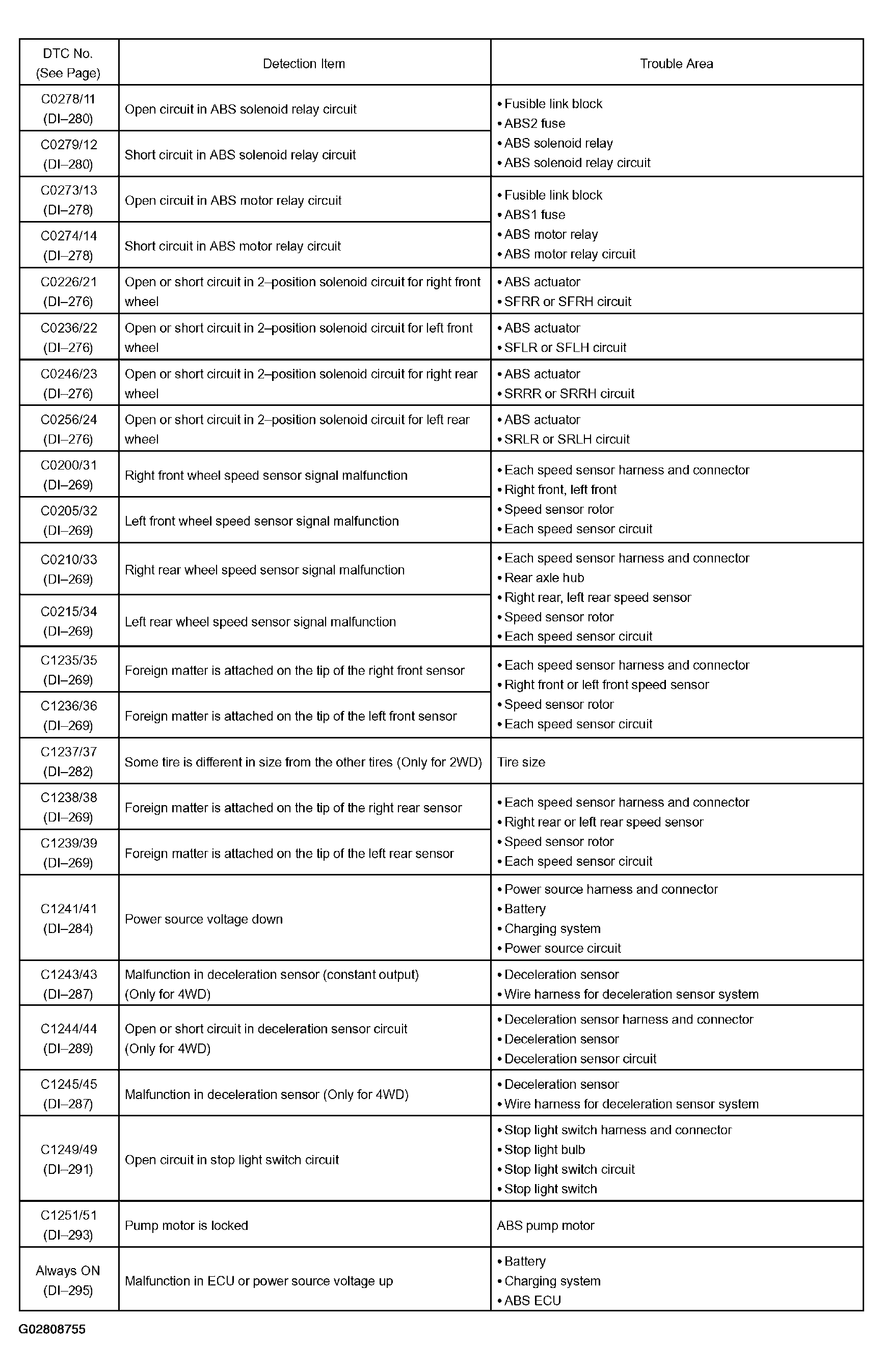

Fig 1: Diagnostic Trouble Code Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: There is a case that hand-held tester cannot be used when the ABS warning light is always ON.
