Back Door Power Window Limit Switch

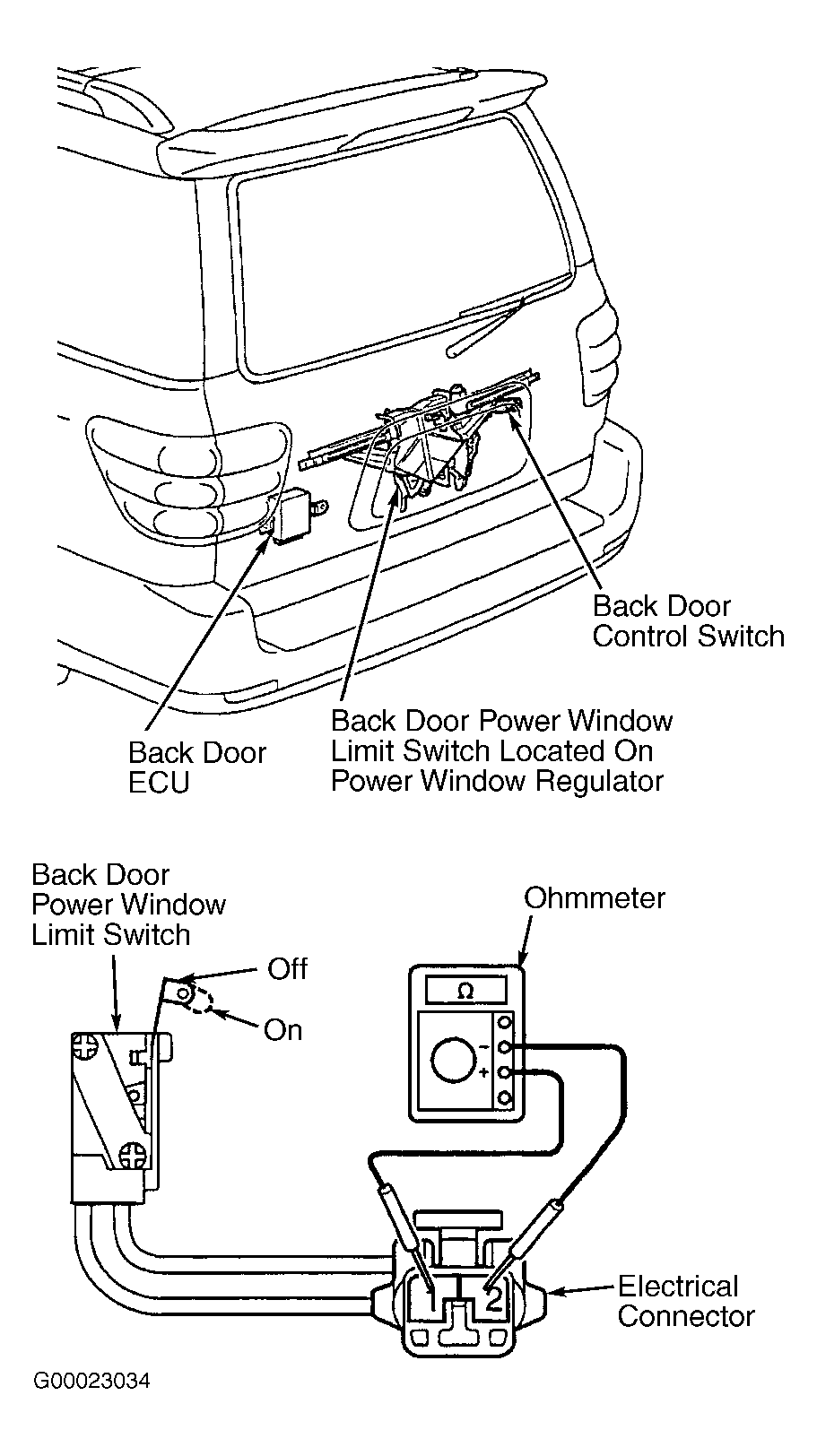

- Back door power window limit switch is located on power window regulator and contains a 2-pin electrical connector with Light Green/Black and Light Green/Red wires. See Fig 1. Remove necessary panels for access to back door power window limit switch. Disconnect electrical connector for back door power window limit switch.
- Using ohmmeter, check that no continuity exists between electrical terminals on back door power window limit switch with switch in OFF position and that continuity exists with switch in ON position. See Fig 1. Replace back door power window limit switch if continuity is not as specified. It may be necessary to replace back door power window limit switch with power window regulator as an assembly. Consult parts department for parts availability.
