Door Key Lock & Unlock Switch

Door key lock and unlock switch is located on driver's side front door, passenger's side front door and back (rear liftgate) door. See Fig 1. Remove necessary panel for access to door key lock and unlock switch. Disconnect electrical connector for door key lock and unlock switch.

Note electrical terminal identification for door key lock and unlock switch. See Fig 1. Using ohmmeter, check that continuity is as specified between indicated door key lock and unlock switch electrical terminals in relation to switch position. See DOOR KEY LOCK & UNLOCK SWITCH CONTINUITY table. Replace door key lock and unlock switch if continuity is not as specified.

DOOR KEY LOCK & UNLOCK SWITCH CONTINUITY

Switch Position

Electrical Terminal Numbers

Specification

LOCK

1 & 2

Continuity

OFF

⁽¹⁾

UNLOCK

1 & 3

Continuity

⁽¹⁾	There should be no continuity between any terminals.

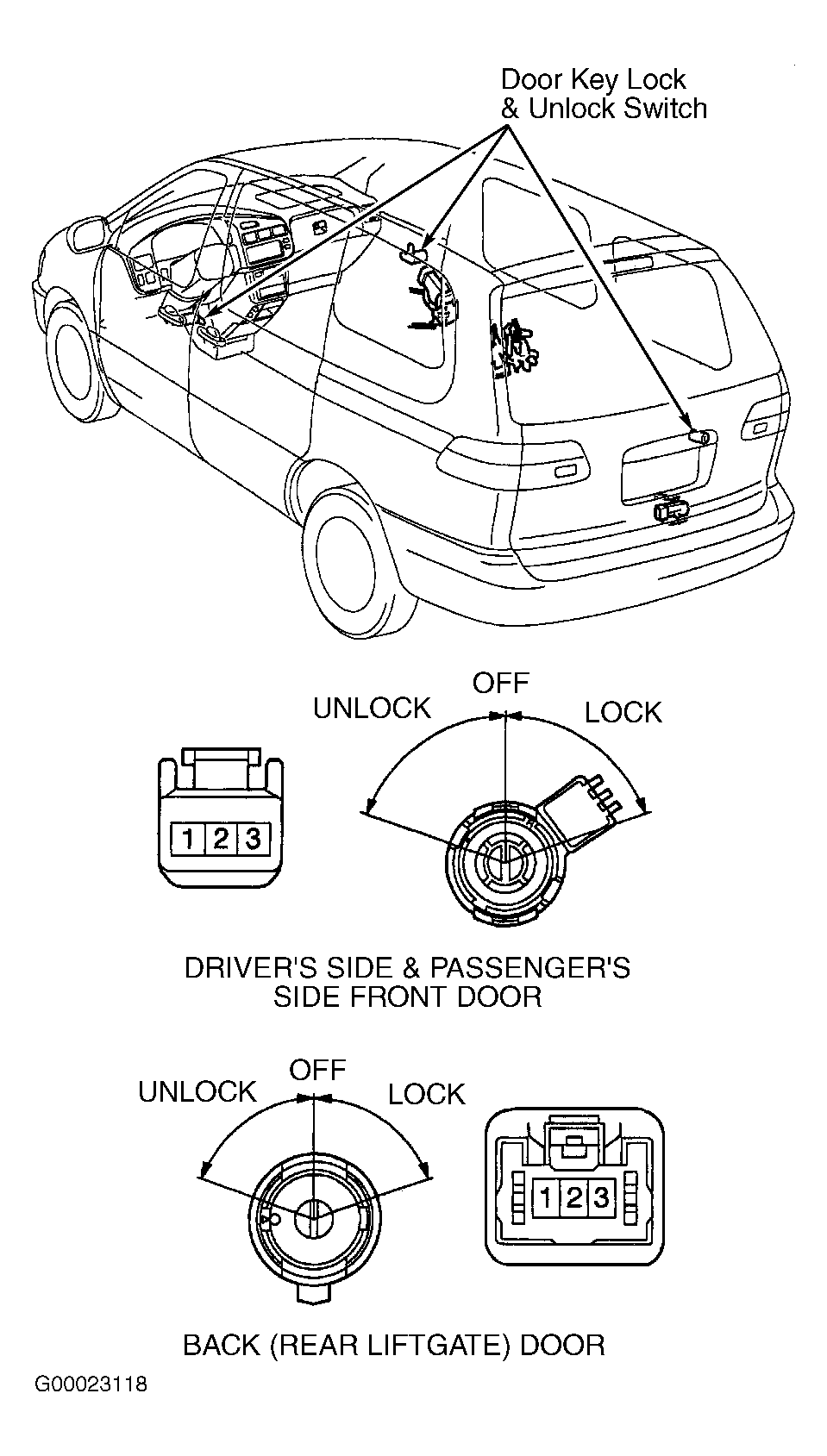

Fig 1: Locating Door Key Lock & Unlock Switch, & Identifying Electrical Terminals & Switch Positions
