Seat Heater System: Location

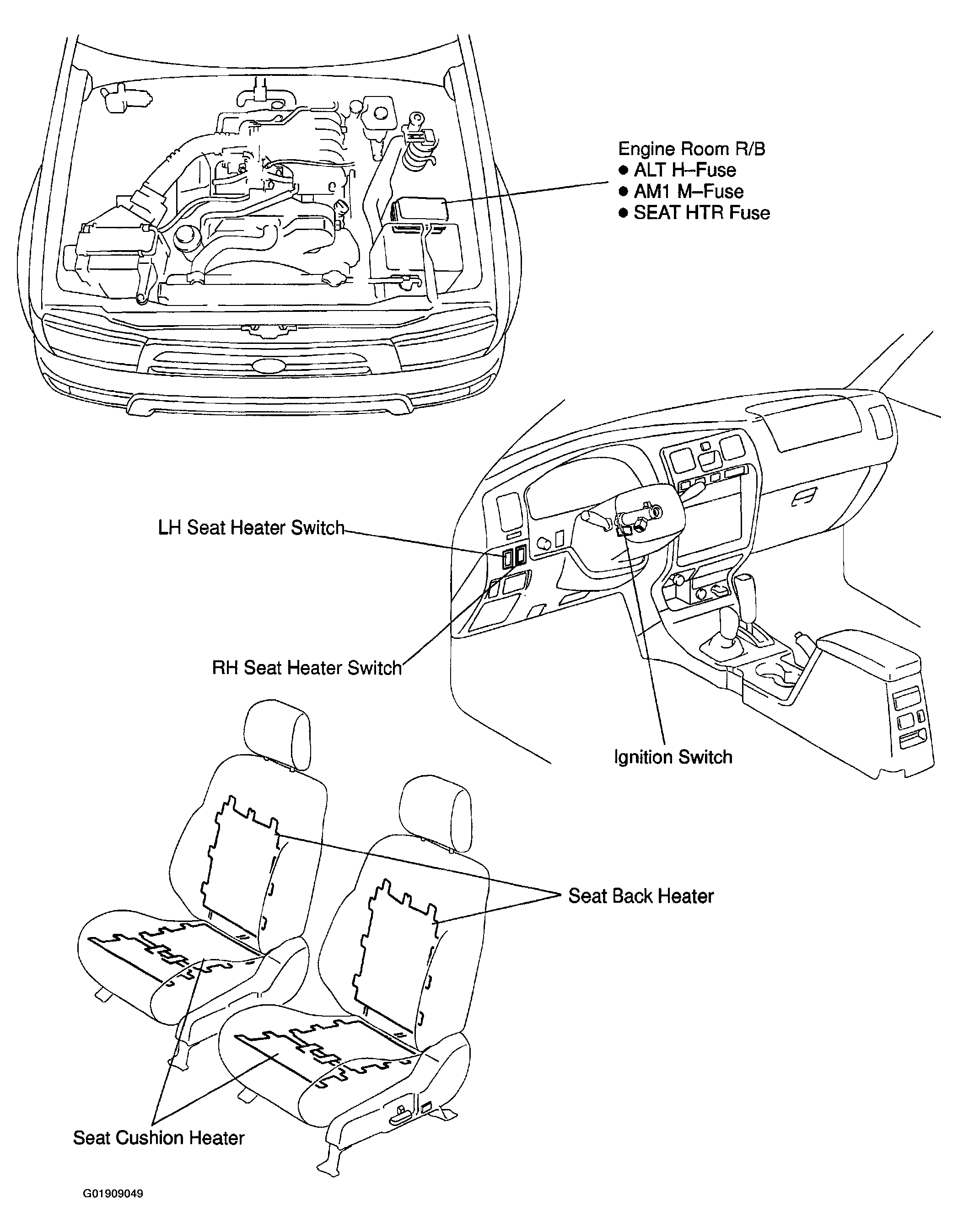

Fig 1: Locating Seat Heater System Components
G01909049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
