Section 344 (Engine Immobilizer System - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

DIAGNOSIS SYSTEM
1. Description:
  ECM controls the function of Immobilizer on this vehicle. Data of the immobilizer or DTC can be read form DLC3 of the vehicle. When a trouble occurs in immobilizer, MIL does not light ON but DTC inspection is performed. Therefore when there seems to be a trouble with immobilizer, use TOYOTA hand-held tester or SST to check and troubleshoot it.

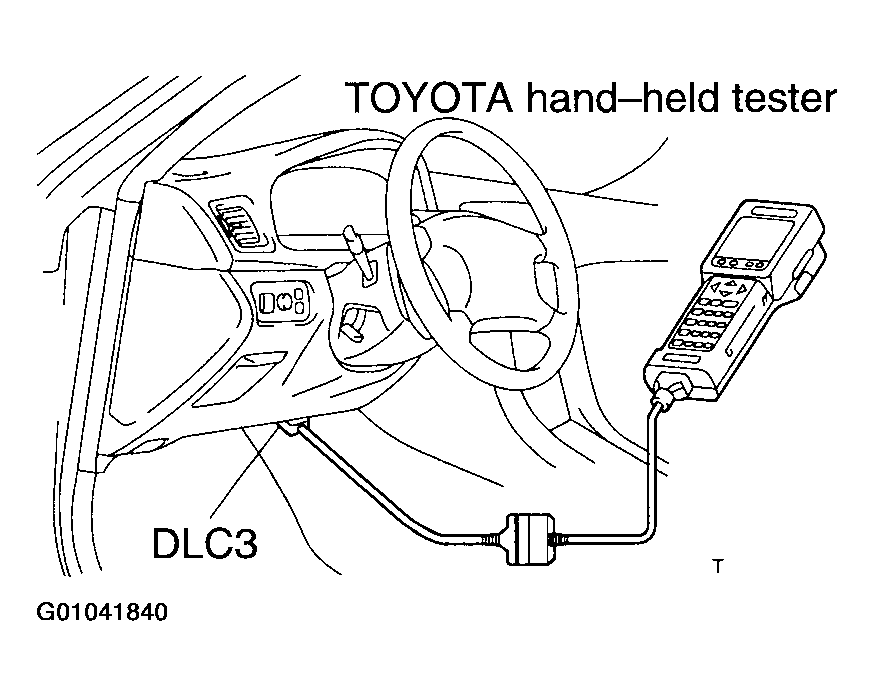

  Fig 1: Identifying TOYOTA Hand-Held Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the DLC3:

  Fig 2: Identifying DLC3 Component
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  The vehicle's ECM uses ISO 9141-2 for communication. The terminal arrangement of DLC3 complies with SAEJ1962 and matches the ISO 9141-2 format.

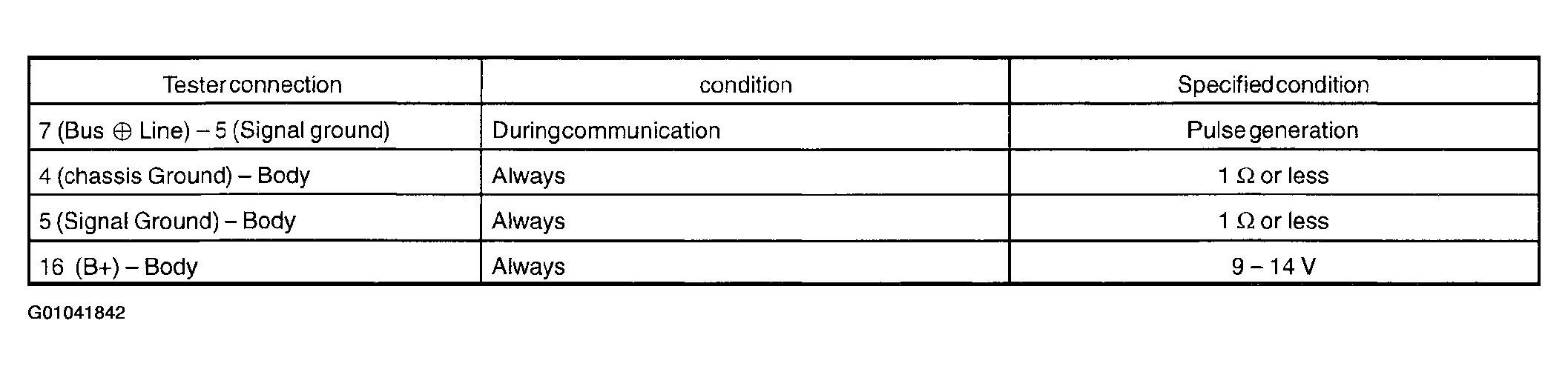

Fig 3: Reviewing DLC3 Information
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
If your display shows "UNABLE TO CONNECT TO VEHICLE" when you have connected the cable of OBDII scan tool or TOYOTA hand-held tester to DLC3, turned the ignition switch ON and operated the scan tool, there is a problem on the vehicle side or tool side.
- If communication is normal when the tool is connected to another vehicle inspect DLC3 on the original vehicle.
- If communication is still impossible when the tool is connected to another vehicle, the problem is probably in the tool itself, so consult the Service Department listed in the tool's instruction manual.
INSPECT DIAGNOSIS
1. Check the DTC (Using TOYOTA hand-held tester)
  1. Prepare the OBD II scan tool (complying with SAEJ 1978) or TOYOTA hand-held tester.
  2. Connect the OBD II scan tool or TOYOTA handheld tester to DLC3 under the instrument panel lower pad.
  3. Turn the ignition switch ON and turn the OBD II scan tool or TOYOTA hand-held tester switch ON.
  4. Use the OBD II scan tool or TOYOTA hand-held tester to check the DTCs and freeze frame data; note them down (For operating instructions, see the OBD II scan tool's instruction book).
  5. See DIAGNOSTIC TROUBLE CODE CHART to confirm the details of the DTCs.
2. Check the DTC (Using diagnosis check wire)
  1. Turn ignition switch ON.
  2. Using SST, connect between terminals 8 (TE1) and 3 (E1) of DLC1.

    Fig 4: Identifying DLC1 Component
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    SST 09843-18040
  3. Read the diagnostic trouble code from malfunction indicator lamp.
    NOTE:
    If a diagnostic trouble code is not output, check the Tc terminal circuit.

    ECM controls the Immobilizer function on this vehicle, DTC is out put with DTC of engine.

    As an example, the blinking patterns for codes; normal, 12 and 99 are as shown in the illustration.

    Fig 5: Reviewing Normal Code Patterns
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

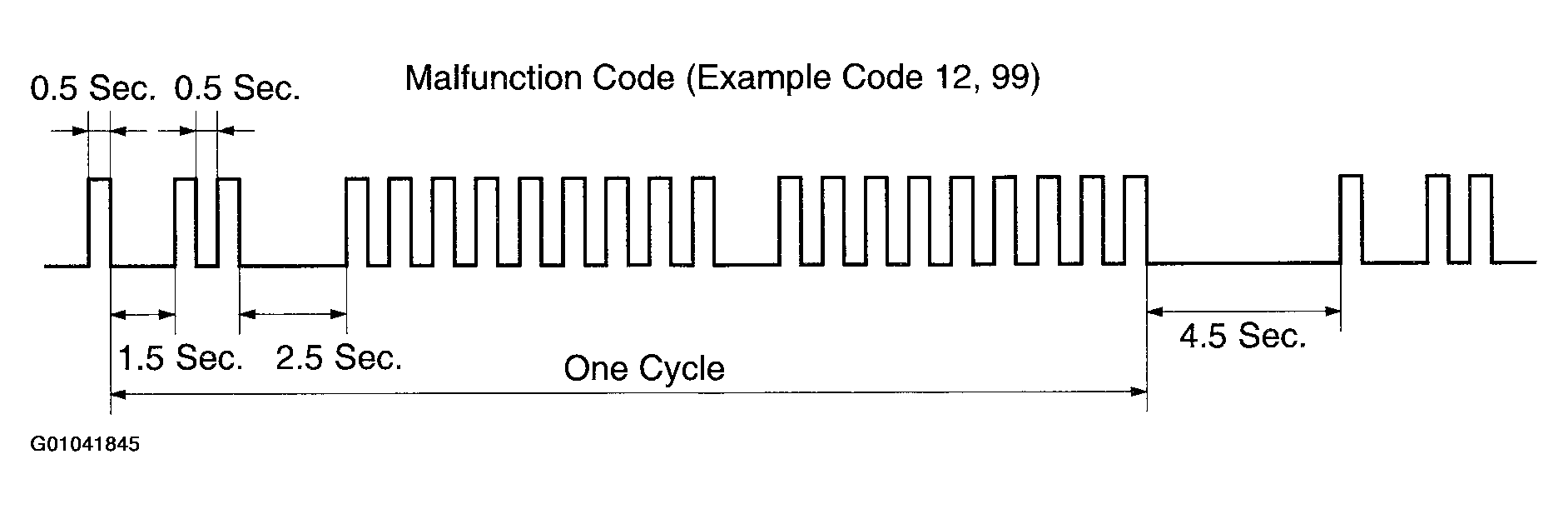

    Fig 6: Reviewing Malfunction Code Information
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. When DTC "99" is output, there is a trouble with Immobilizer. Start troubleshooting referring to PROBLEM SYMPTOMS TABLE .
  5. After completing the check, disconnect terminals 13 (TC) and 4 (CG) and turn OFF the display.
  NOTE: In the event of 2 or more malfunction codes, indication will begin from the smaller numbered code and continue in order to the larger.
3. Clear the DTC:
  The following procedures will erase the DTCs and freeze frame data.
  1. Operating the OBD II scam tool (complying with SAEJ1978) or TOYOTA hand-held tester to erase the codes. (See the OBD II scan tool's instruction book for operating instructions.)
  2. Disconnecting the battery terminals or EFI fuse.
