Condenser Fan: Components

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

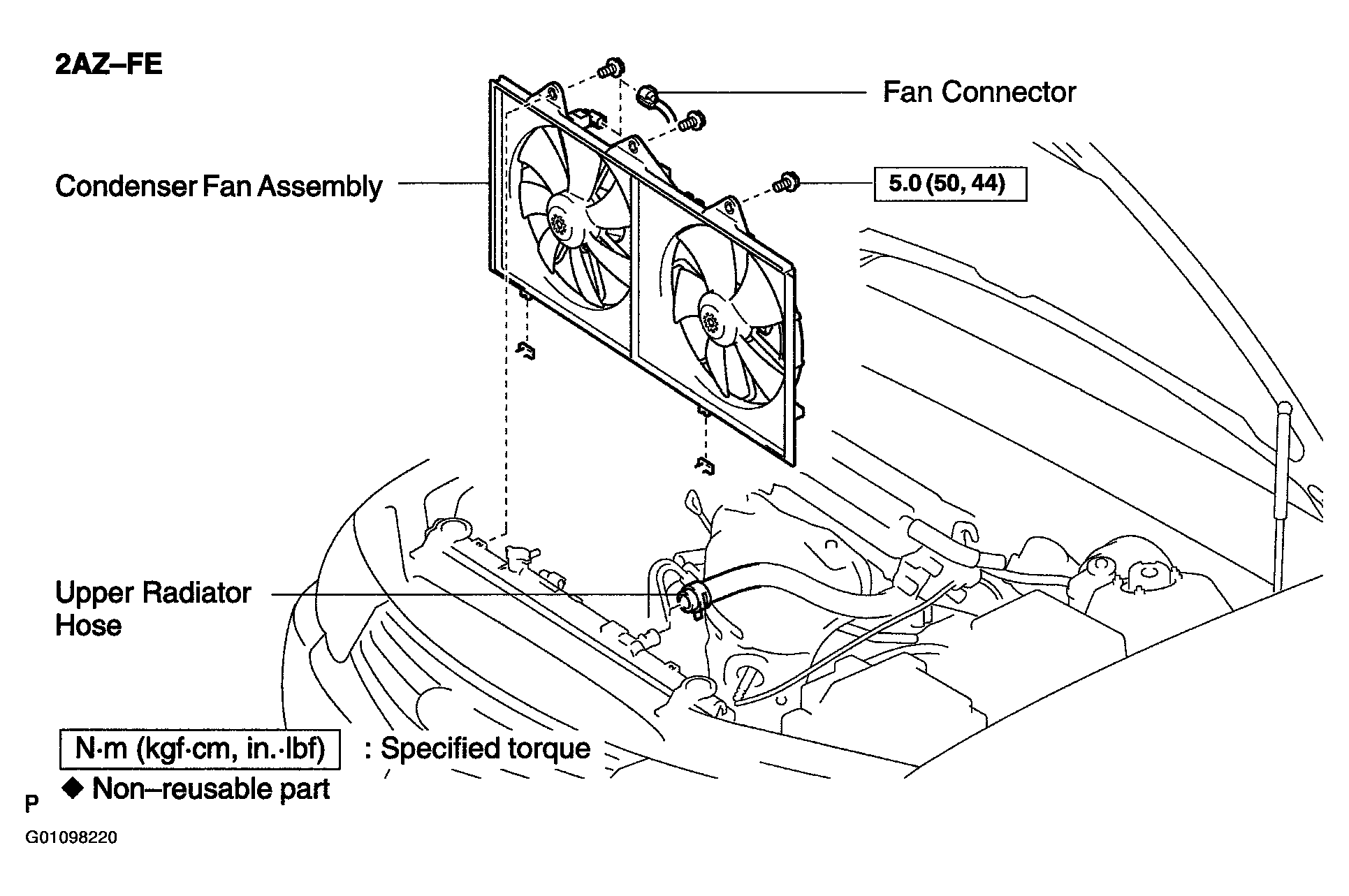

Fig 1: Condenser Fan Components (4-Cylinder - 1 Of 2)
G01098220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

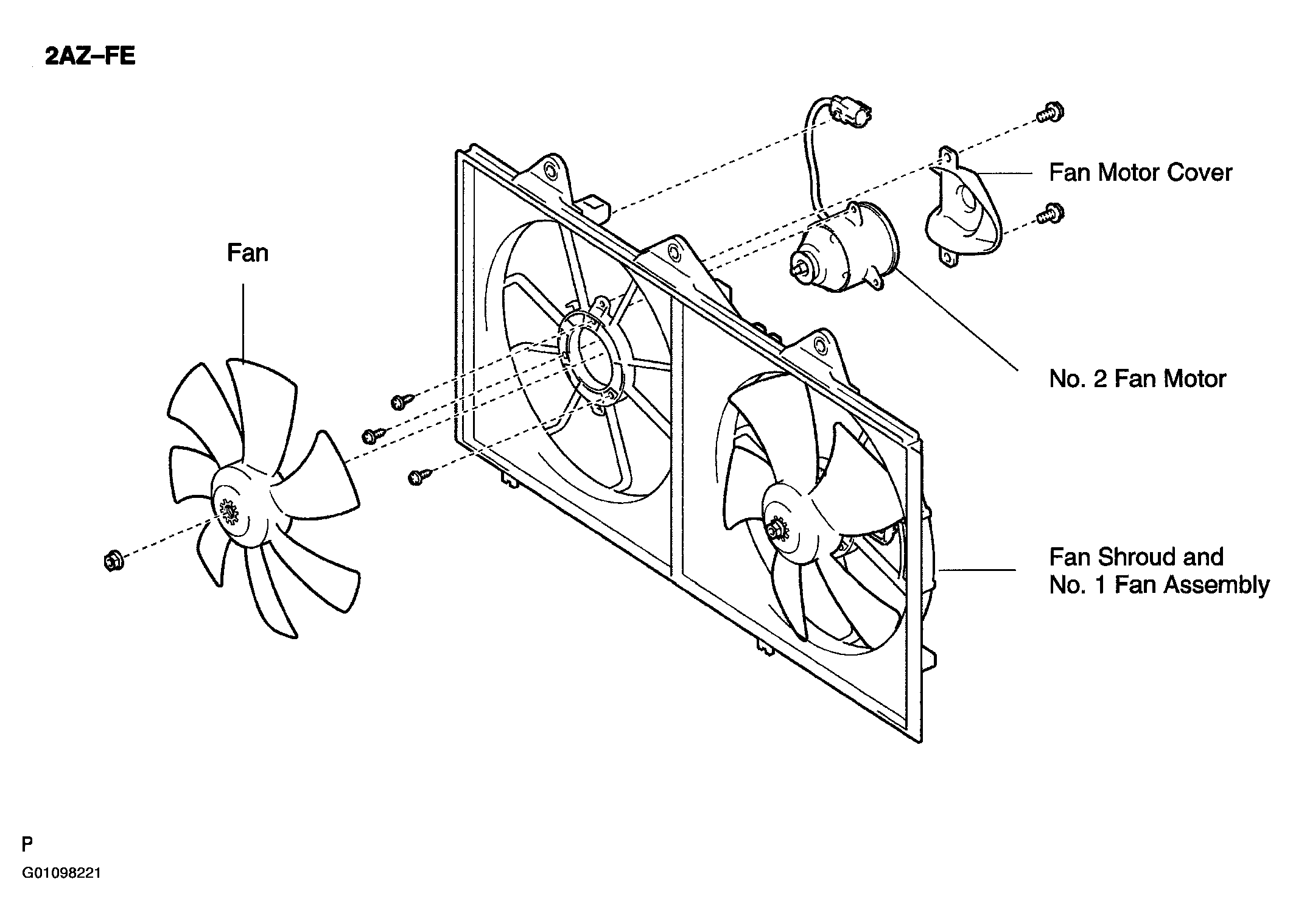

Fig 2: Condenser Fan Components (4-Cylinder - 2 Of 2)
G01098221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

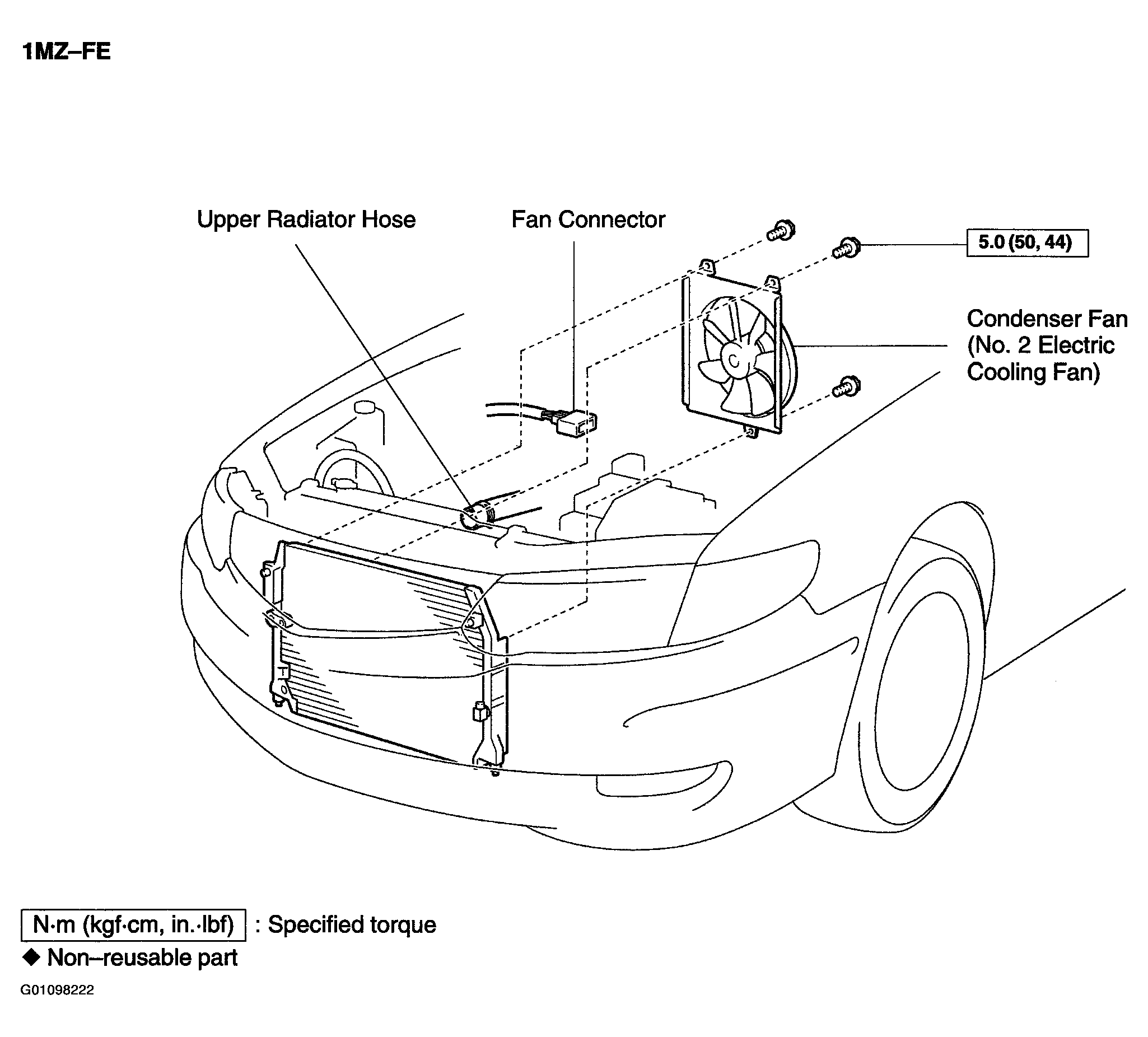

Fig 3: Condenser Fan Components (V6 - 1 Of 2)
G01098222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

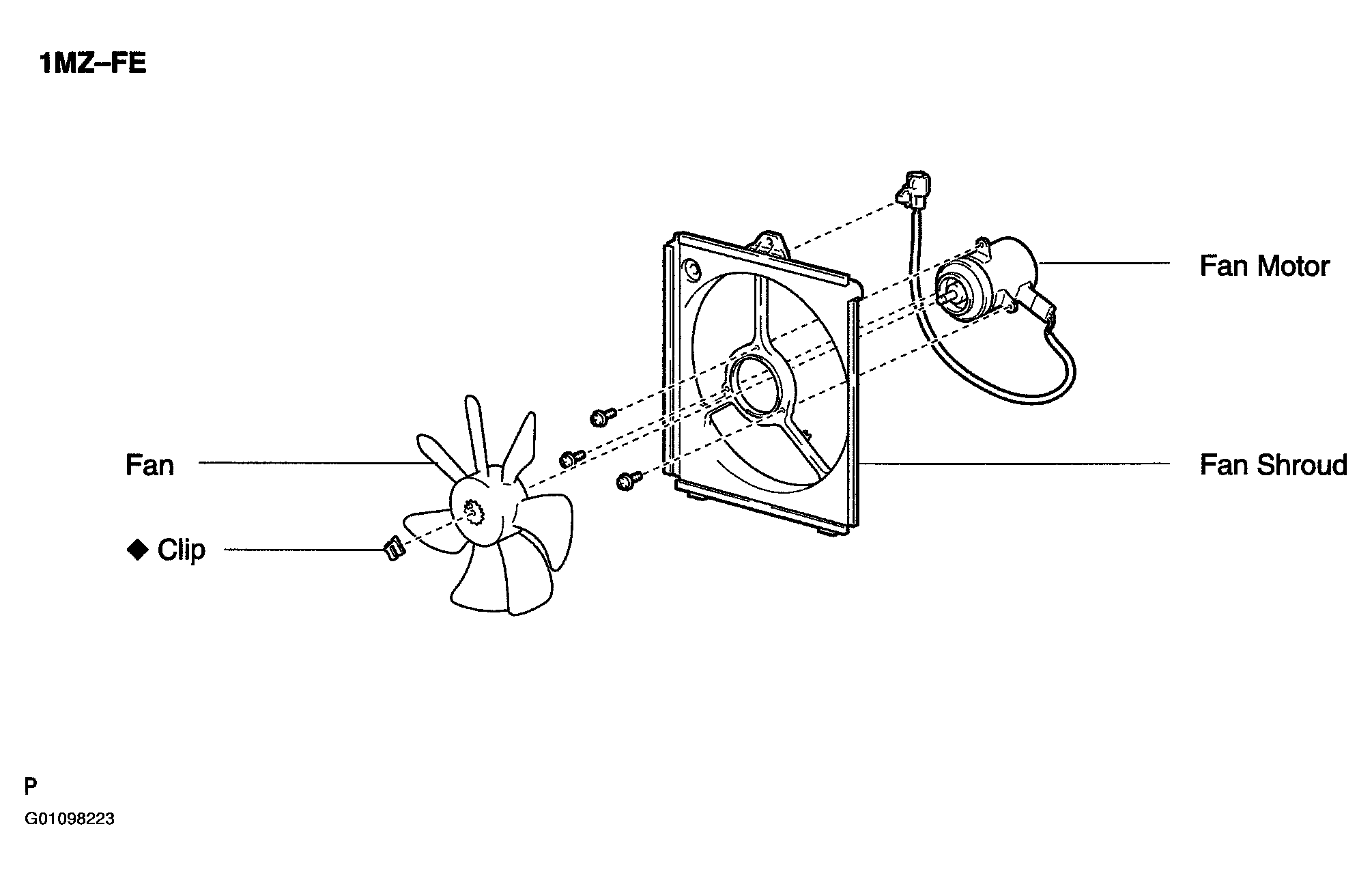

Fig 4: Condenser Fan Components (V6 - 2 Of 2)
G01098223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
