Refrigerant Line: Components

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

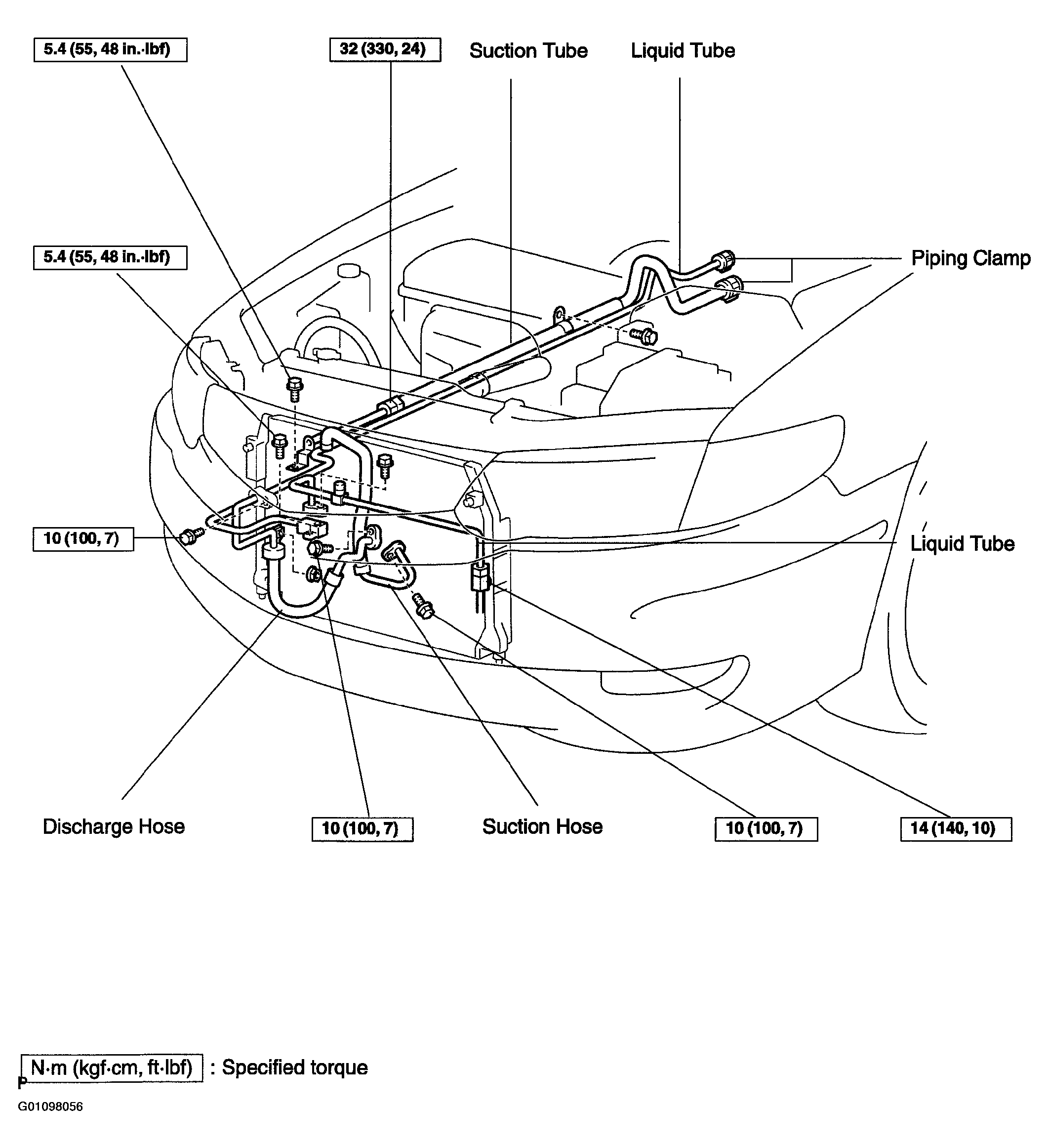

Fig 1: Refrigerant Line Components
G01098056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
