Refrigerant Line: Components

WARNING: This page is about a different car, the 2002 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

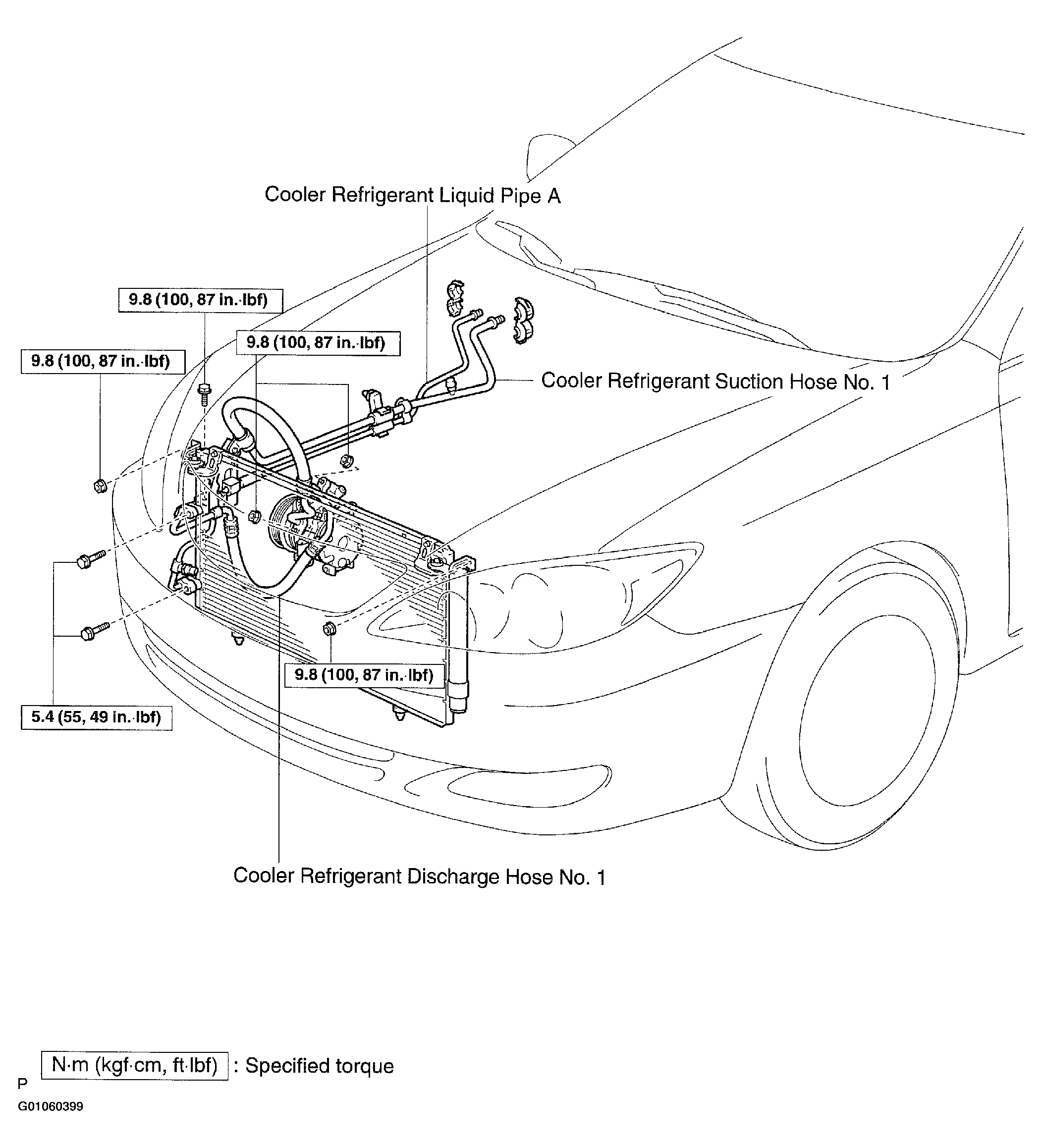

Fig 1: Refrigerant Line Components (V6)
G01060399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

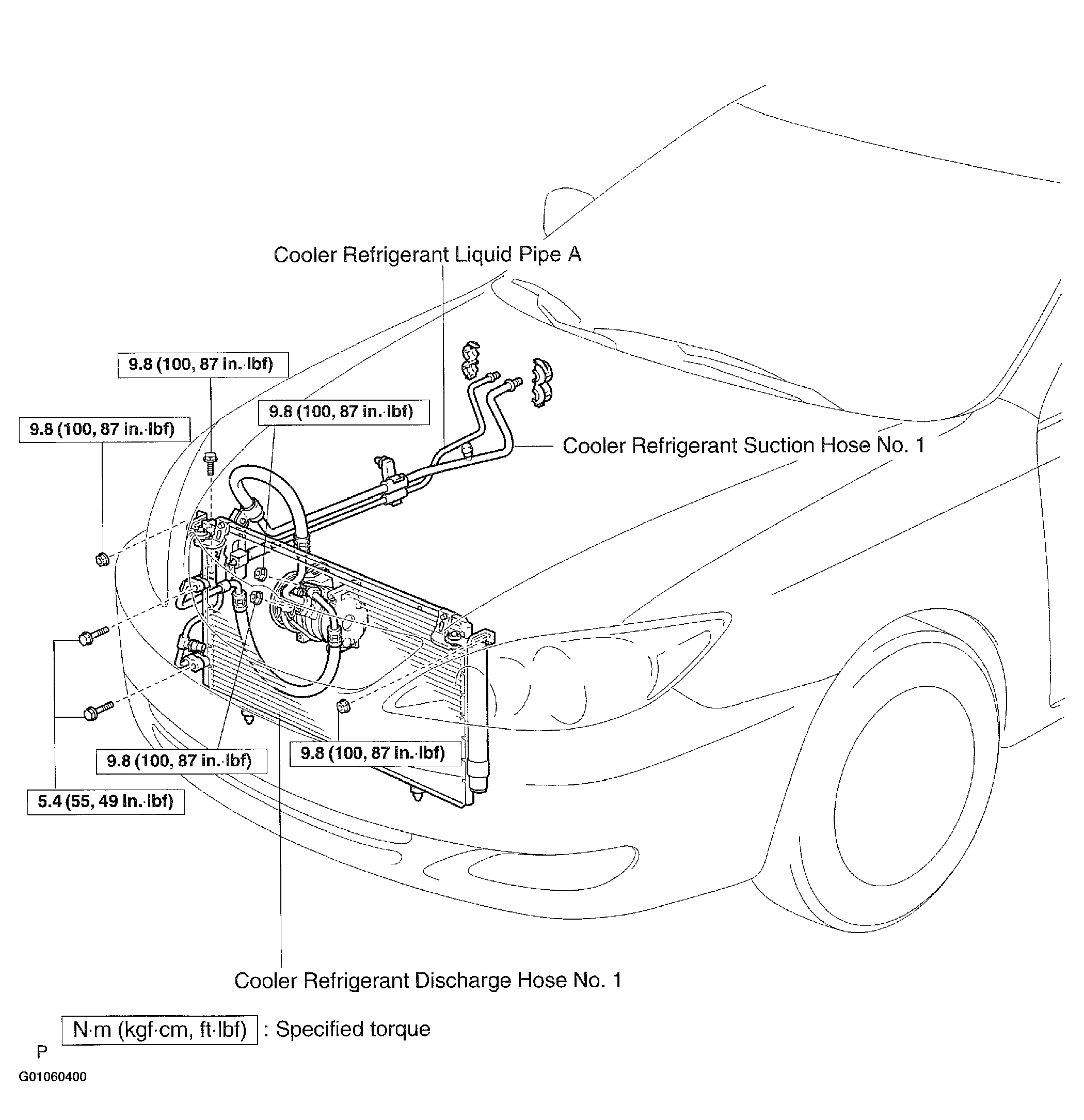

Fig 2: Refrigerant Line Components (4-Cylinder)
G01060400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
