Circuit Protection Devices
WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

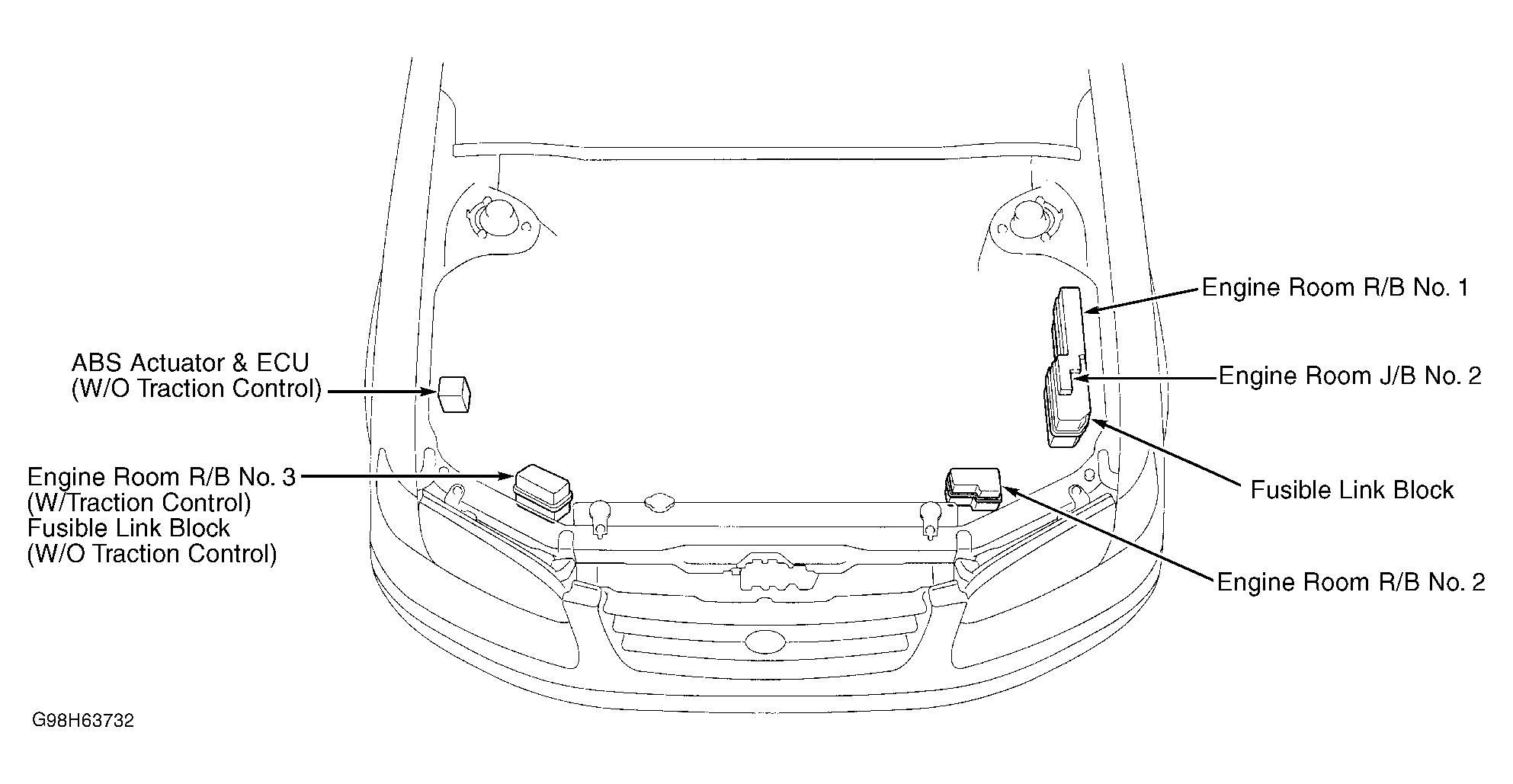

| Engine Room J/B No. 2 | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 1 | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 2 | On left front of engine compartment. See Figure. |
| Engine Room R/B No. 3 (W/ Traction Control) | On right front of engine compartment. See Figure. |
| Fusible Link Block | On left side of engine compartment. See Figure. |
| Fusible Link Block (W/O Traction Control) | On right front of engine compartment. See Figure. |

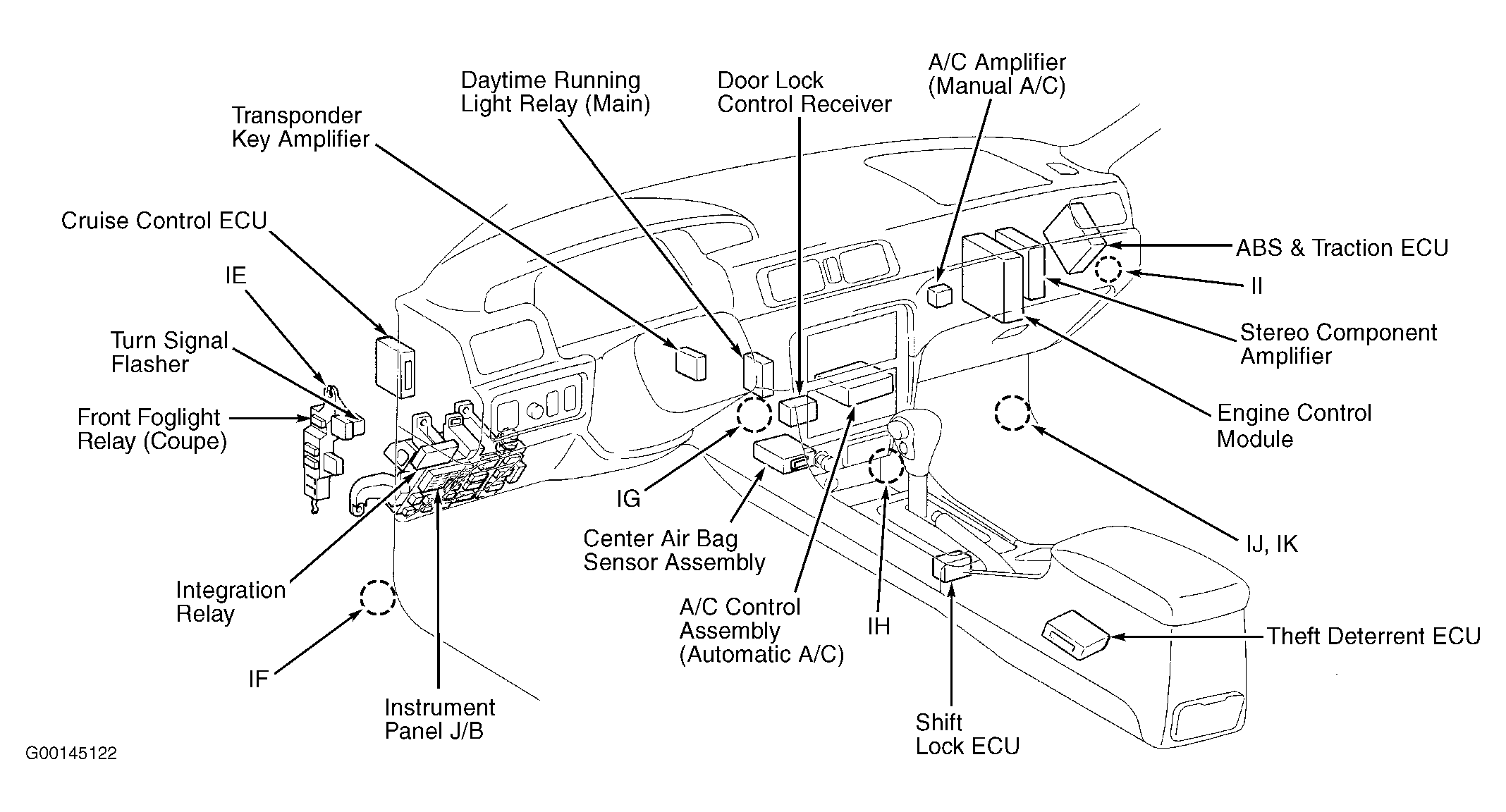

| Instrument Panel J/B | Behind dash, left of steering column. See Figure. |
