Ecu Flash Reprogramming Error Message (SS004-01)

Publication date: 2001-05-25
Reference number: SS004-01

ECU FLASH REPROGRAMMING ERROR MESSAGE

ECU FLASH REPROGRAMMING ERROR MESSAGE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS004-01, Date of Issue:  September 23, 2003
TOYOTA: 2001-04 4Runner, Highlander, Land Cruiser, RAV4, Sequoia, Tundra; 2002-04 Camry, Solara, Tacoma; 2003-04 Corolla, Matrix; 2004 Echo, Prius, Sienna
SECTION: Special Service Tools
COPYRIGHT: © 2018 Toyota, USA License Agreement TMS1002
Superceded Bulletin(s): SS004-01, Date of Issue:  May 25, 2001
NOTE: September 23, 2003: Models added - 2002 (and later) Solara, 2003 (and later) Corolla and Matrix, and 2004 models; Test Procedures updated for new CAN Interface Module. The previous TSB should be discarded.

INTRODUCTION

During ECU flash reprogramming, an error message may be displayed on the Diagnostic Tester that will not allow ECU flash reprogramming to complete. This bulletin provides test procedures to determine the cause for the error message.

APPLICABLE VEHICLES

2001 (and later) model year 4Runner, Highlander, Land Cruiser, RAV4, Sequoia and Tundra vehicles.

2002 (and later) model year Camry, Solara and Tacoma vehicles.

2003 (and later) model year Corolla and Matrix vehicles.

All 2004 (and later) model year Toyota vehicles except Celica, MR2 Spyder, Avalon, and Tacoma (3RZ-FE engine)

REQUIRED SSTS

REQUIRED SSTS

Special Service Tools (SSTs) Part Number Qty
Toyota Diagnostic Tester Kit* 01001271 1
CAN Interface Module Kit* 01002744 1
12 Megabyte Diagnostic Tester Program Card with version 10.2a Software (or later)* 01002593-005 1
Diagnostic Tester 14/26 Pin DLC Cable 02001637 1
Diagnostic Tester J1962 OBDII Cable (CAN DLC) 02003180 1
* - Essential SSTs
NOTE: Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards or other SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

WARRANTY INFORMATION

WARRANTY INFORMATION

Op Code Description Time OFP T1 T2
N/A Not Applicable to Warranty --- --- --- ---

TEST PROCEDURE

During ECU flash reprogramming, the Error screen at right may be displayed on the Diagnostic Tester for one of the following reasons: See Fig 1.

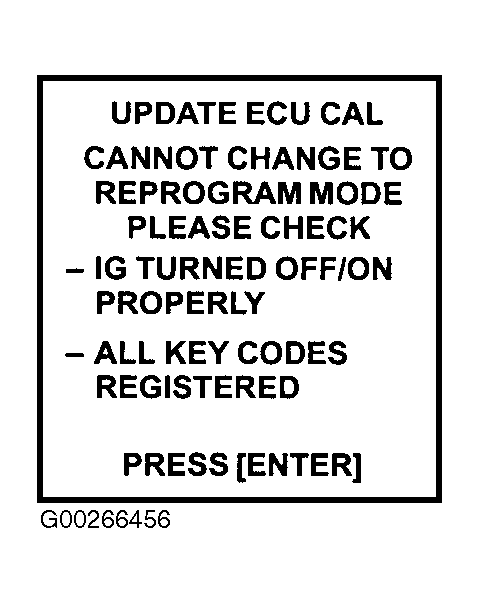

Fig 1: Error Message
G00266456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Immobilizer key not properly registered or auto-registration mode left open.
  2. Ignition ON/OFF cycling not followed correctly during the flash reprogramming procedure.
  3. The Diagnostic Tester cable is damaged, causing an open communication circuit.
NOTE: The Diagnostic Tester may operate properly in other modes such as OBD, OBDII, or CARB, with a damaged cable.

To eliminate the possibility of the first 2 reasons causing the error message, do the following:

  1. Confirm the Immobilizer Transponder Master Key is properly registered and auto registration mode is closed. Follow the appropriate Repair Manual procedure and consult TSB SS001-99 - SCANTOOL IMMOBILIZER KEY CODE UTILITY.
  2. Conduct the ECU flash reprogramming process explicitly following key operation instructions. Refer to TSB SS002-01 - ECU FLASH REPROGRAMMING PROCESS, for more details.

    To determine if the Diagnostic Tester cable is damaged, follow the test procedures below to check the electrical integrity of the cable. Conduct all continuity tests with an Ohm meter. For all five test procedures, the resistance values must be below 6.0 ohms to pass. See Fig 2.

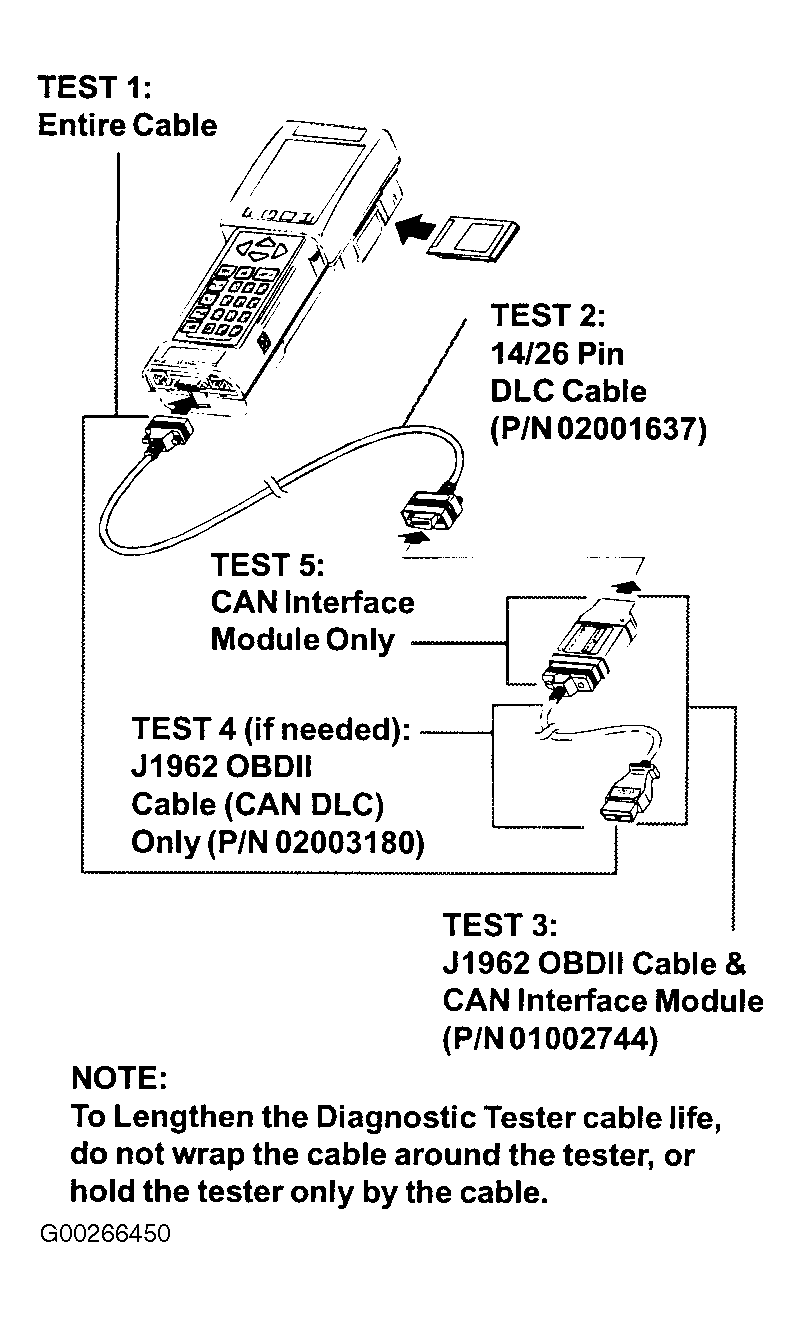

    Fig 2: Scantool and DLC
    G00266450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CABLE TEST 1

  1. Connect Diagnostic Tester cables DLC (P/N 02001637) and CAN Interface Module / J1962 OBDII together (P/N 01002744). See Fig 3.

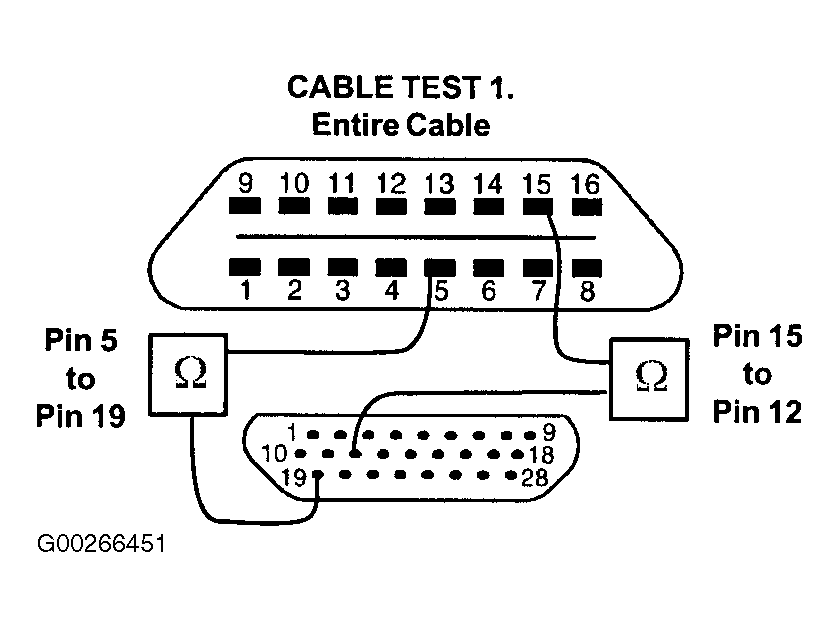

    Fig 3: Cable Test 1
    G00266451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Test for continuity.
    • If there is continuity, the cable is OK. Check steps 1 and 2 above to complete the flash reprogramming process.
    • If there is no continuity, proceed to CABLE TEST 2.

CABLE TEST 2

  1. Disconnect Diagnostic Tester cables DLC (P/N 02001637) and CAN Interface Module / J1962 OBDII (P/N 01002744). See Fig 4.

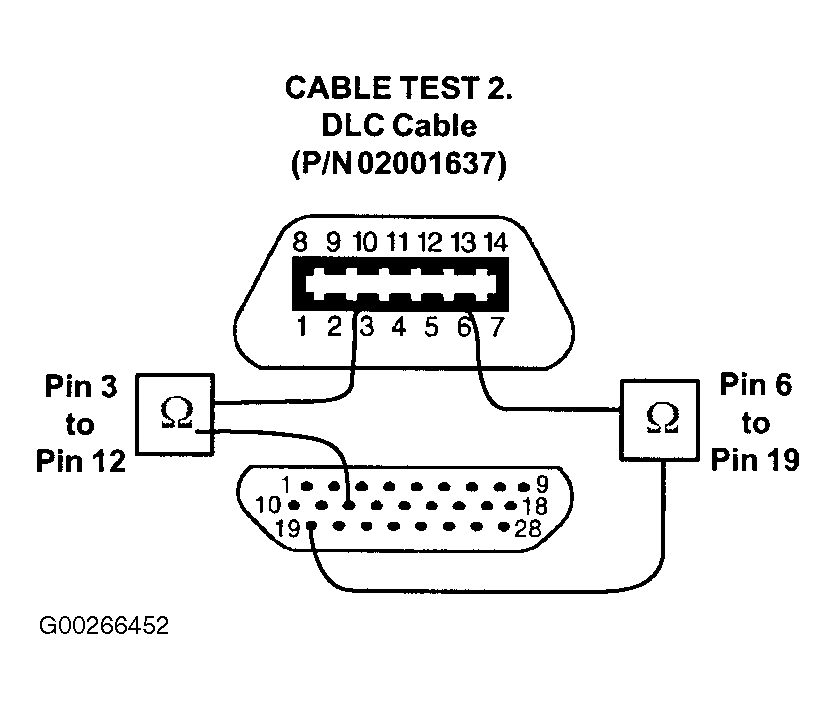

    Fig 4: Cable Test 2
    G00266452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Test DLC cable (P/N 02001637) for continuity.
    • If there is continuity, the cable is OK. Proceed to CABLE TEST 3.
    • If there is no continuity, the cable needs to be replaced.

CABLE TEST 3

  1. Test J1962 OBDII / CAN Interface Module (P/N 01002744) for continuity. See Fig 5.

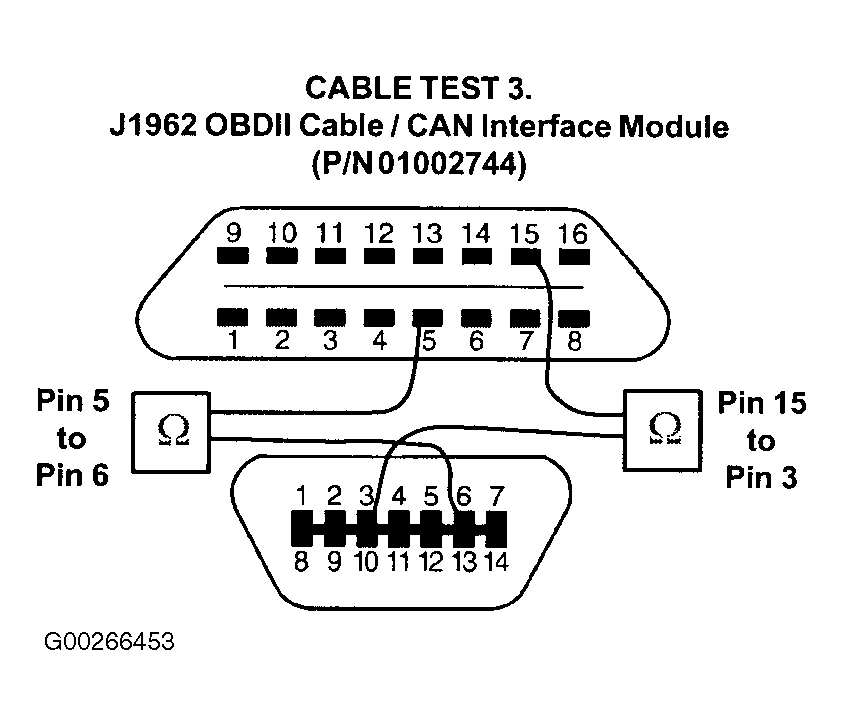

    Fig 5: Cable Test 3
    G00266453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If there is continuity, the cable and CAN Interface Module are OK. Re-check Cable Tests 1, 2, and 3 while wiggling and flexing the cables.
    • If there is no continuity, proceed to CABLE TEST 4.

CABLE TEST 4

  1. Disconnect the CAN Interface Module (P/N 01002744) from the J1962 OBDII cable using a Phillips screwdriver. See Fig 6.

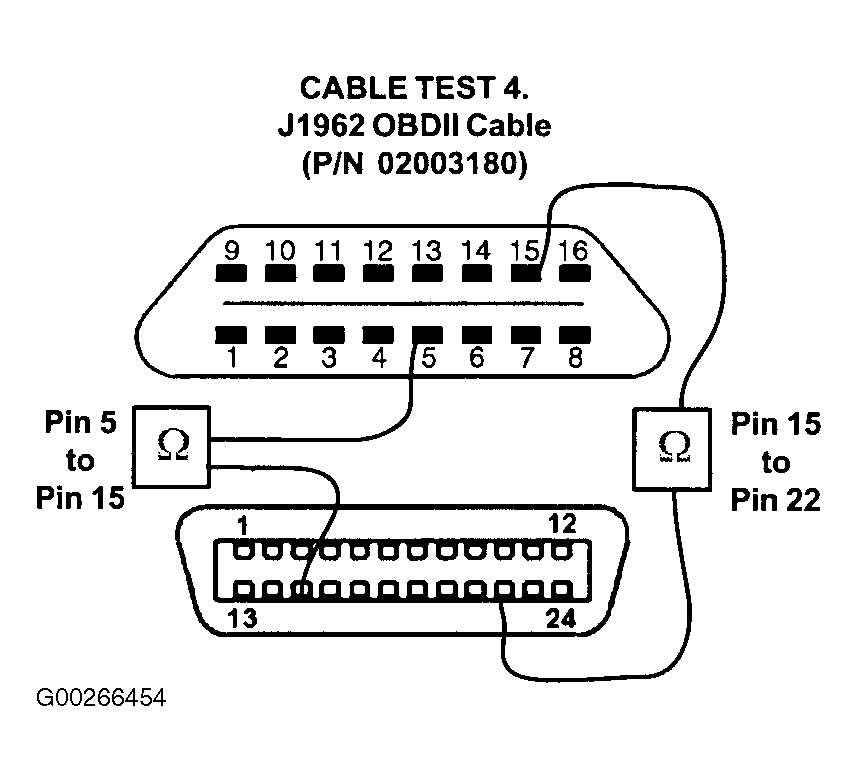

    Fig 6: Cable Test 4
    G00266454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Test J1962 OBDII cable (P/N 02003180) for continuity.
    • If there is no continuity, the cable needs to be replaced.
    • If there is continuity, proceed to CAN Interface Module Test 5.

CAN INTERFACE MODULE TEST 5

  1. Test the CAN Interface Module (P/N 01002744) for continuity. See Fig 7.

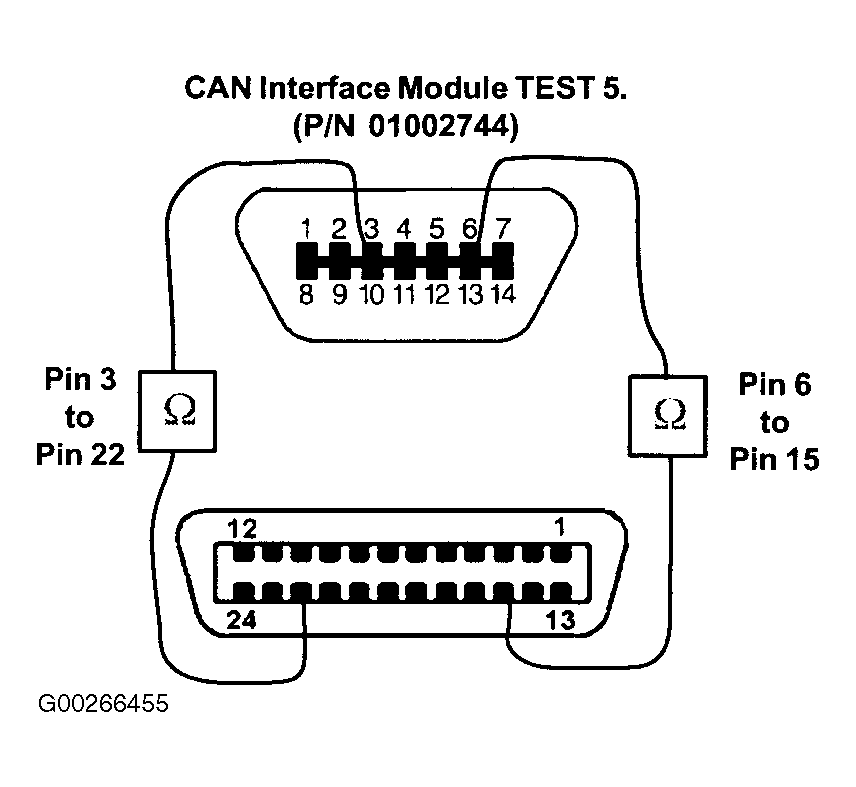

    Fig 7: Can Interface Module Test 5
    G00266455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If there is no continuity, the CAN Interface Module needs to be replaced.
    • If there is continuity, the CAN Interface Module is OK. Re-check Cable Tests 1, 2, 3, and 4 while wiggling and flexing the cables.
