Oil Pump: Components

Fig 1: Identifying Oil Pump Components (1 Of 3)
G01083541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

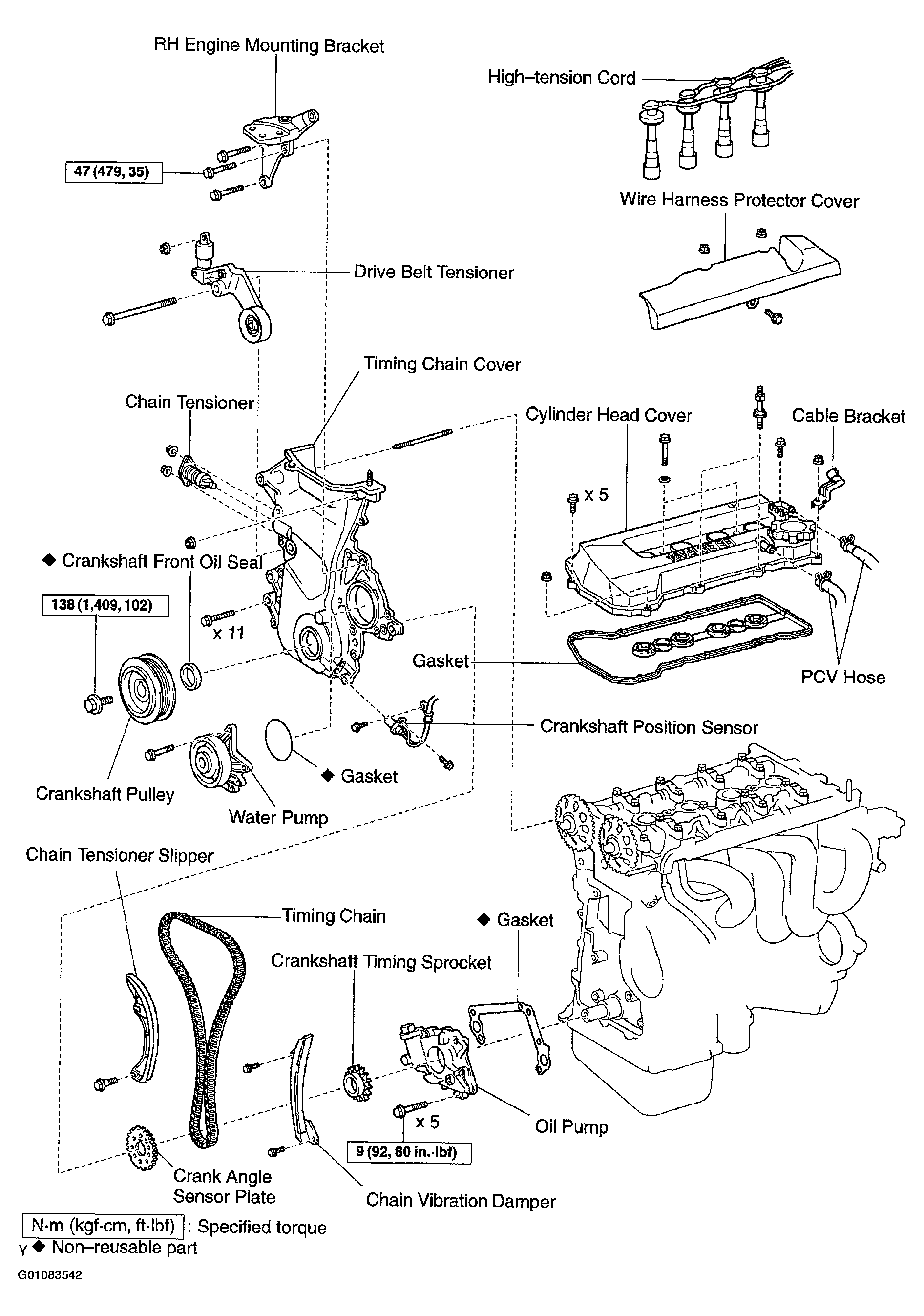

Fig 2: Identifying Oil Pump Components (2 Of 3)
G01083542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

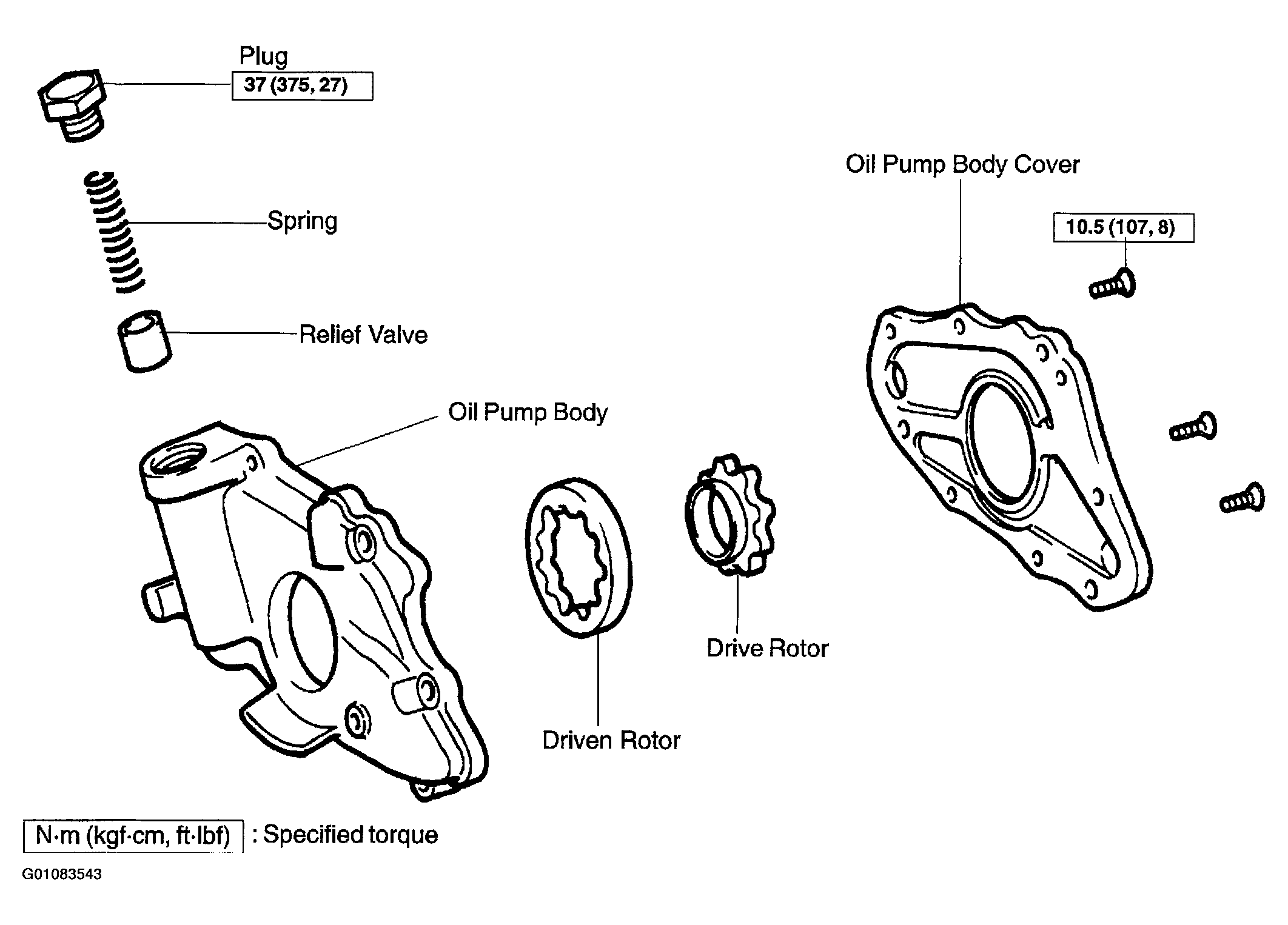

Fig 3: Identifying Oil Pump Components (3 Of 3)
G01083543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
