Oil Pump: Installation

  1. Install oil pump.
    1. Place a new gasket on the cylinder block.
    2. Engage the spline teeth of the oil pump drive rotor with the large teeth of the crankshaft, and slide the oil pump.

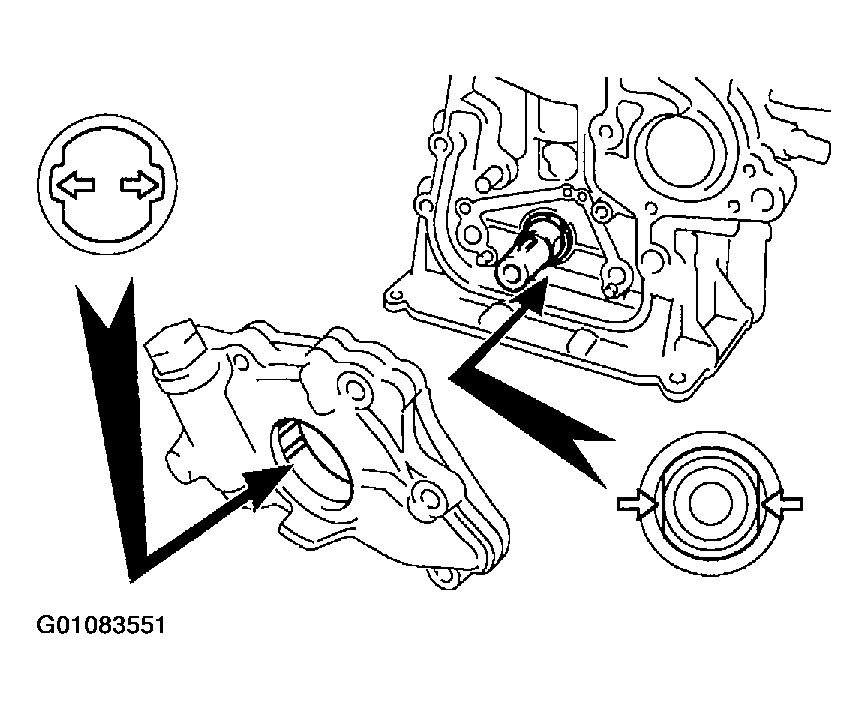

      Fig 1: Engage Teeth Of Oil Pump Drive Rotor & Crankshaft & Slide Oil Pump
      G01083551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the oil pump with the 5 bolts.
      1. Torque: 9 N.m (92 kgf.cm, 80 in..lbf)
  2. Install crankshaft timing sprocket and timing chain. See step 4)  under INSTALLATION under TIMING CHAIN.
  3. Fill engine with oil.
  4. Start engine and check for leaks.
  5. Recheck engine oil level.
